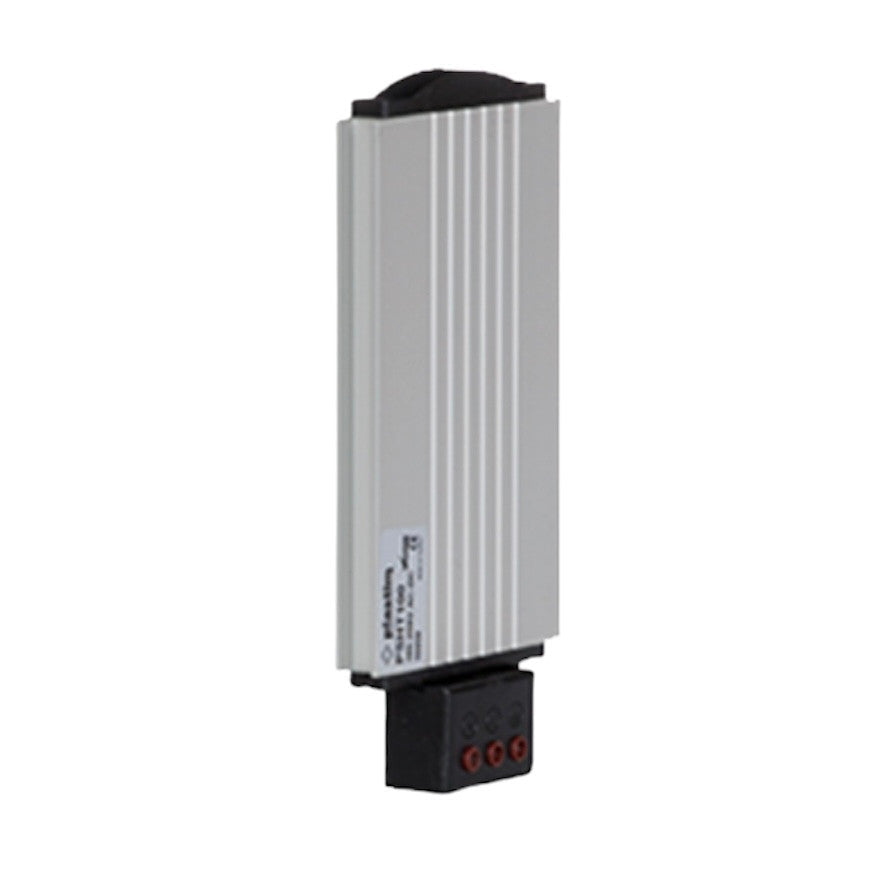

Slim / Slim control cabinet heater PTC 150W, PSHT150, PLASTIM

Slim electric (PTC body heater, post-tension heater) control cabinet heater with anodized aluminum heat sink and overcurrent protection, for DIN rail mounting with 150 watts, 110-220 volts AC or DC, PSHT150, Plastim - made in Turkey.

• Heating power: 150W
• Operating voltage: 100-250V AC/DC
• Maximum current: 6A
• Self-regulating PTC resistor
• Overcurrent protection: Electronic thermal overload relay
• Electrical connection: 3-pin NLE terminal
• IEC protection class: Class II
• Protection class: IP20
• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heatsink: aluminum profile, anodized

• Mounting: 35mm DIN rail

• Installation position: Best efficiency in vertical position

• External dimensions: 229x80x27mm

• Weight: 0.325 kg

Heating elements are used to maintain temperature and reduce humidity in control panels, automation cabinets, ATMs, payment terminals, and other electronic devices. Incandescent lamps have been used for these purposes since the Soviet era, but it is clear that this method does not ensure compliance with today's stringent requirements for electrical equipment and electronics. Today, almost all manufacturers are switching to PTC heating elements, which not only provide heat but also guarantee safety and longevity.

All heating elements are equipped with electronic surface overheating protection, which further ensures safe operation.

Due to the high demands placed on cabinet heaters, Plastim has taken the utmost care in selecting component suppliers. For example, the supplier of the PTC heaters is Schneider Electric, and the terminal block for the electrical connection of all components is custom-made by the Italian company KORNER. The plastic from which this block is made has a very important property: not only does it retain its shape and not deform when heated, but it also does not emit odors and thus does not release harmful carcinogenic substances into the atmosphere. We agree that this approach to supplier selection positively distinguishes high-quality Plastim heaters from their cheap Chinese counterparts.

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetallic thermostat or a more complex temperature controller. Both devices can be purchased on our website:
