Bimetal thermostat 0-60C NC, PTHT, Plastim

In stock - 480 items available
SKU: PTHT
Common price €8,28 VAT included.

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

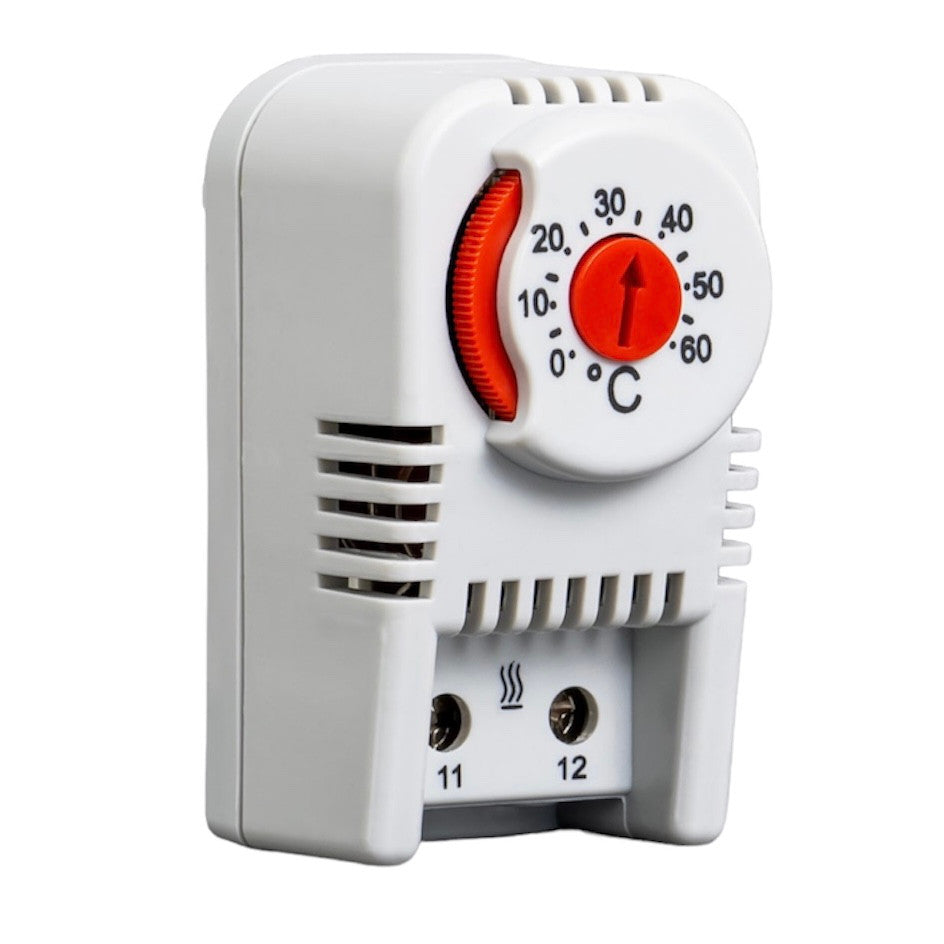

Thermostat for heating control. Adjustable temperature from 0-60°C. DIN rail mounting. 1xNC, Plastim bimetal thermostats.

Simple thermostat. 220(250) V AC. Bimetallic sensor with heating function. Electrical connection with two 2.5 mm² terminals. Mounting on 35 mm DIN rail, cross rails, or on a mounting plate.

For connecting heating elements - radiators, surface heating, underfloor heating, heating cables, fan heaters

Characteristics

PTHT

Contact type

NC

Setting range

0-60°C

Color of the potentiometer

Red

250V AC / 120V AC

10 (2) A

Sensor type

Bimetal

Contact Type

Snap action

life

> 100,000

Electrical connection

2-pole terminal, screw terminals

Material plastic

UL94 V0 ABS Flame Retardant

Protection class

IP20

Operating temperature

-25 / +80 °C

Storage temperature

-45 / +80°C

Installation

DIN rail 35mm

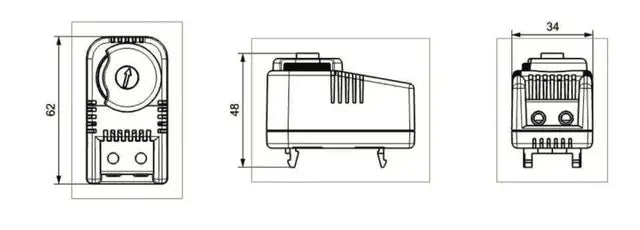

Dimensions HxWxD

61x34x38 mm

Weight

45g
