NC bimetal thermostat / temperature switch, 0-60°C, DIN rail mounting. Bimetal from OPAŞ
Simple thermostat. 220(250) V AC. Bimetallic sensor with heating function. Electrical connection with two 2.5 mm² terminals. Mounting on 35 mm DIN rail, cross rails, or on a mounting plate.

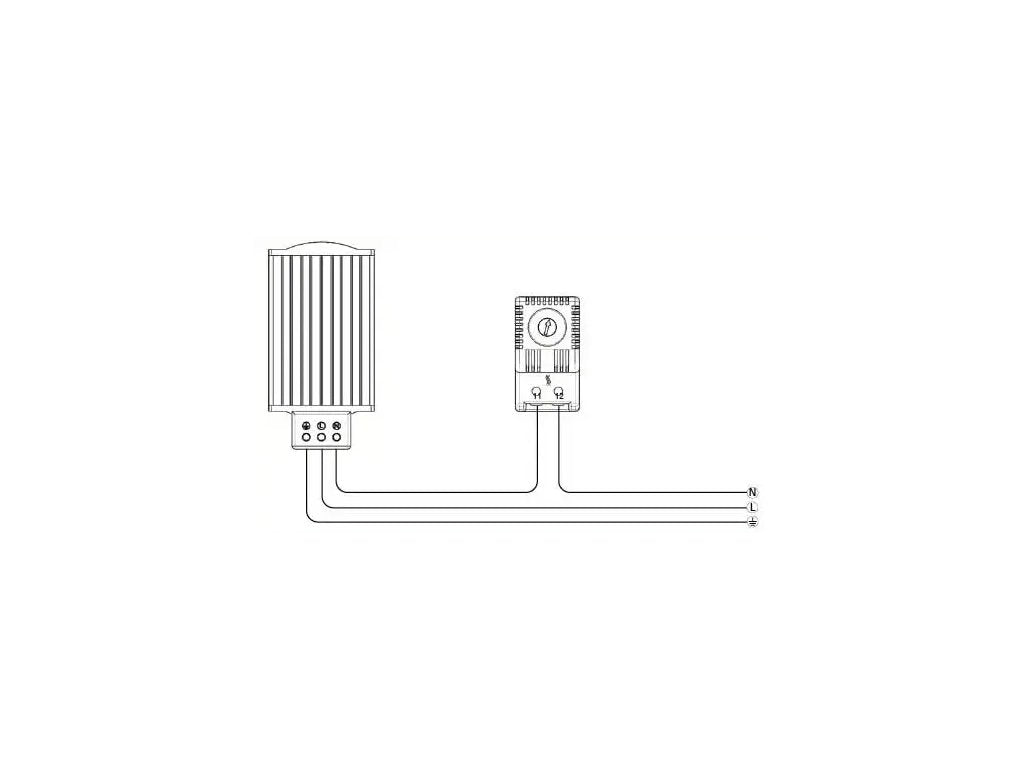

For connecting heating elements - heating elements, surface heating, underfloor heating, heating cables, fan heaters
Characteristics |
PTOT001 |
Contact type |
NC |
Setting range |
0-60 °C |
Color of the potentiometer |
Red |
250V AC / 120V AC |
10 (2) A |
Sensor type |
Bimetal |
Contact Type |
Snap action |
life |
> 100,000 |
Electrical connection |
2-pole terminal, screw terminals |
Material plastic |
UL94 V0 ABS flame retardant |
Protection class |
IP20 |
Operating temperature |
-25 / +80 °C |
Storage temperature |
-45 / +80 °C |
Installation |
DIN rail 35mm |
Dimensions HxWxD |
61x34x38 mm |
Weight |
43g |
