Plastim

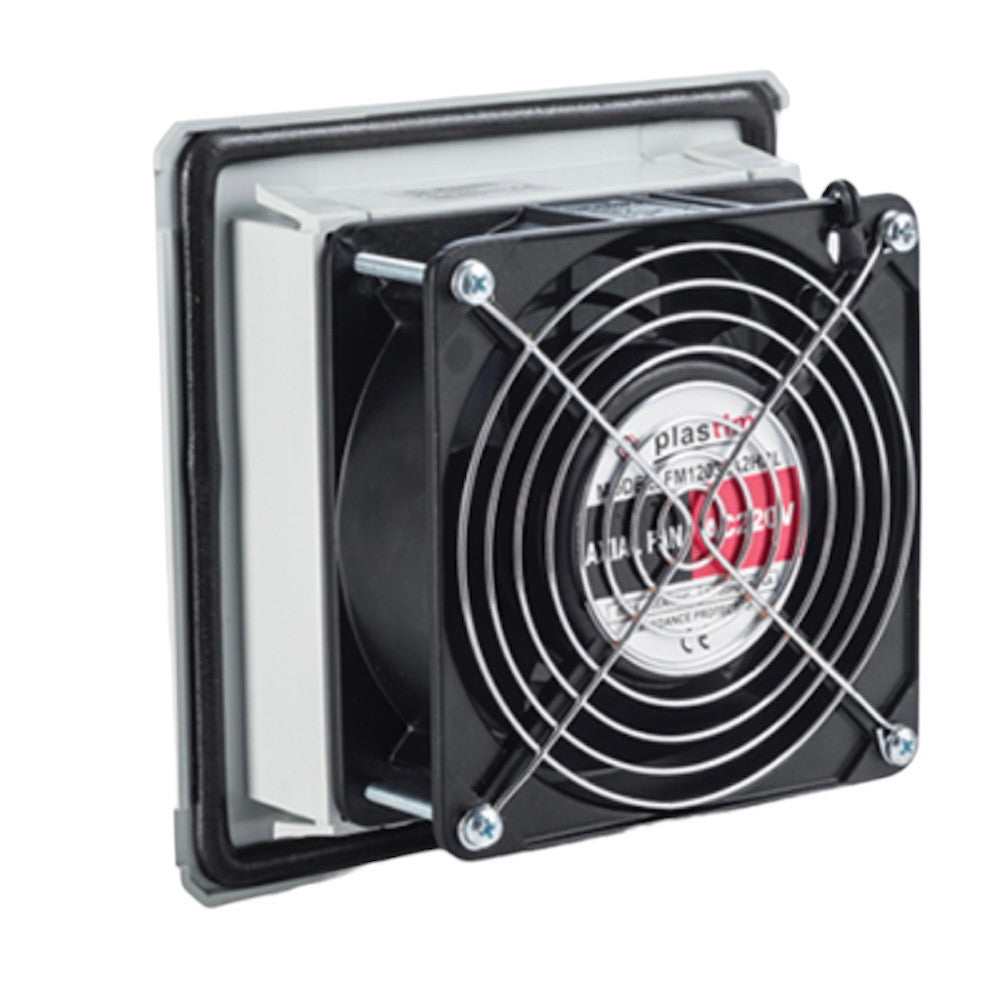

Fan with filter + clamp, 100 (140) m3/h 160x160, 230V 50/60Hz IP54 PTF1500T Plastim

In stock - 62 items available
SKU: PTF1500T
€41,40 VAT included.

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

Ventilation grille with fan and filter, size 160x160 mm, for installation in control panels, automation cabinets, ATMs, or gaming terminals. PTF1500T, manufacturer: Plastim (Turkey)

For outside air intake in control cabinets, ATMs, payment terminals, gaming machines, automation cabinets, switchboards, and gas stations. Typically installed in the side panels of cabinets to maintain IP.

  • External dimensions: 160x160x69 mm
  • Installation dimensions: 125x125mm
  • Volume flow: 100 (140) m3/h
  • Noise level: 42 (46) dB(A)
  • Bearing: ball bearing
  • Operating voltage: 220-230VAC, 50/60Hz
  • Current consumption: 0.14 (0.13) A
  • Rated power: 26 (23) W
  • Electrical connection: 3-pin terminal 2.5 mm2
  • Flow direction: outside to inside (can be changed)
  • Operating temperature: -10/+70 °C
  • Protection class: IP54
  • Plastic: UL94 V0 ABS Flame Retardant
  • Seal: Polyurethane seal
  • Color: RAL 7035 (RAL 7032 on request)
  • Weight: 0.68 kg
  • Assembly: Quick plug-in

For automatic air exchange and temperature maintenance with this fan, you need either a simple bimetallic thermostat or a more complex temperature controller. Both devices can be purchased on our website.
