Bimetal thermostat NO switching, setting range 0-60°C, PTVT

In stock - 195 items available
SKU: PTVT
Common price €8,28 VAT included.

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

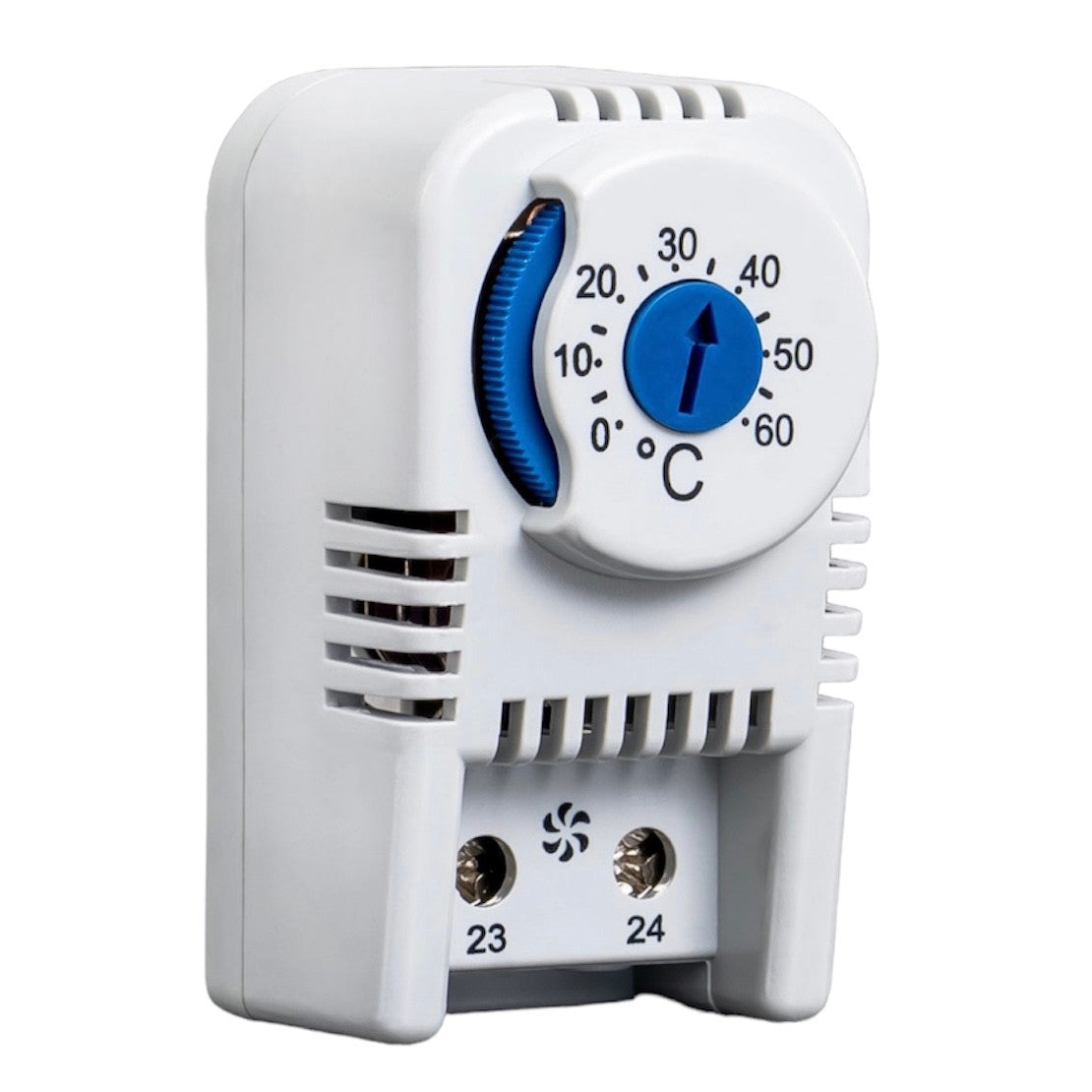

Control cabinet thermostat (temperature relay, temperature sensor, thermal relay, air temperature relay) mechanical with built-in air temperature sensor for DIN rail mounting for connecting fans or for signaling when the set temperature is exceeded, normally one open contact (normally open) PTVT, 2p, screw terminals, Plastim bimetallic thermostats.

These thermostats are used in systems that maintain a specific temperature using cooling elements such as fans or air conditioners. These systems are used to prevent overheating of equipment in control cabinets, ATMs, payment terminals, and other devices installed outdoors or in uncooled spaces.

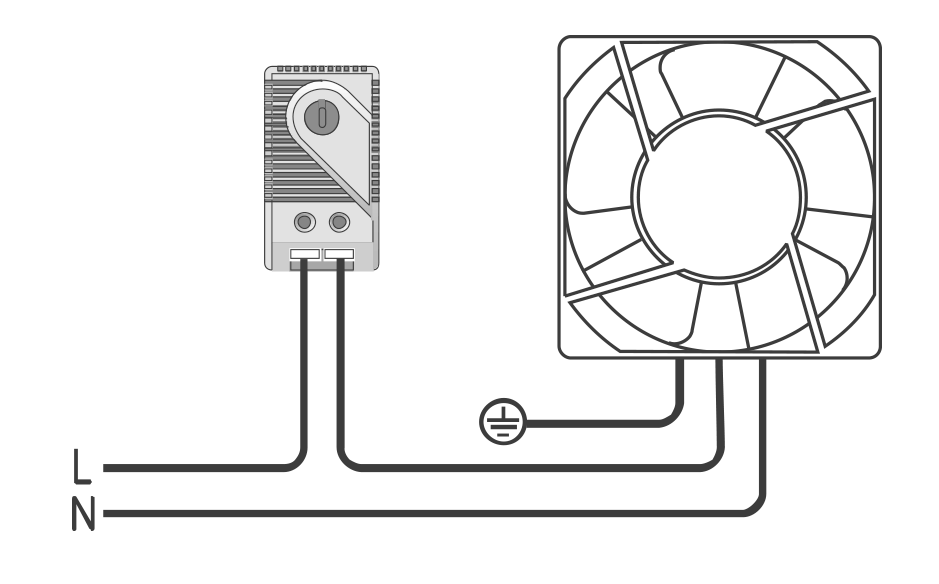

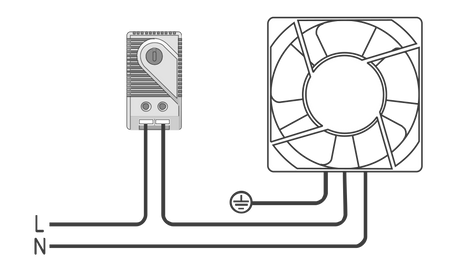

They are used to connect fans, coolers and air conditioners.

Features

PTHT

Contact type

SHUTTER

Setting range

0-60°C

Color of the potentiometer

Blue

250V AC / 120V AC

15 (2) A

Sensor type

Bimetal

Contact Type

Snap action

life

> 100,000

Electrical connection

2-pole terminal, screw terminals

Material plastic

UL94 V0 ABS flame retardant

Protection class

IP20

Operating temperature

-25 / +80 °C

Storage temperature

-45 / +80°C

Installation

DIN rail 35mm

Dimensions HxWxD

61x34x38 mm

Weight

45g
