Fan with filter 850 (1200) m3/h, 325x325, 230V 50/60Hz IP54 PTF5000 Plastim
Failed to load pickup availability
Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.
Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.
Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.
On account – This payment method is available to partners who have concluded a framework agreement with our company.
If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.
The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

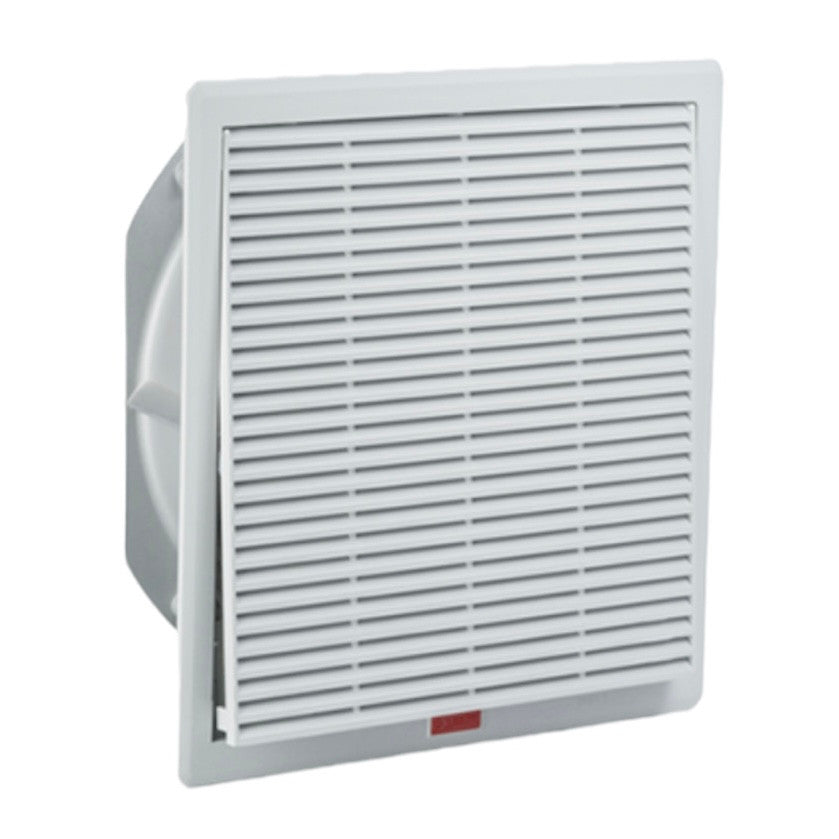

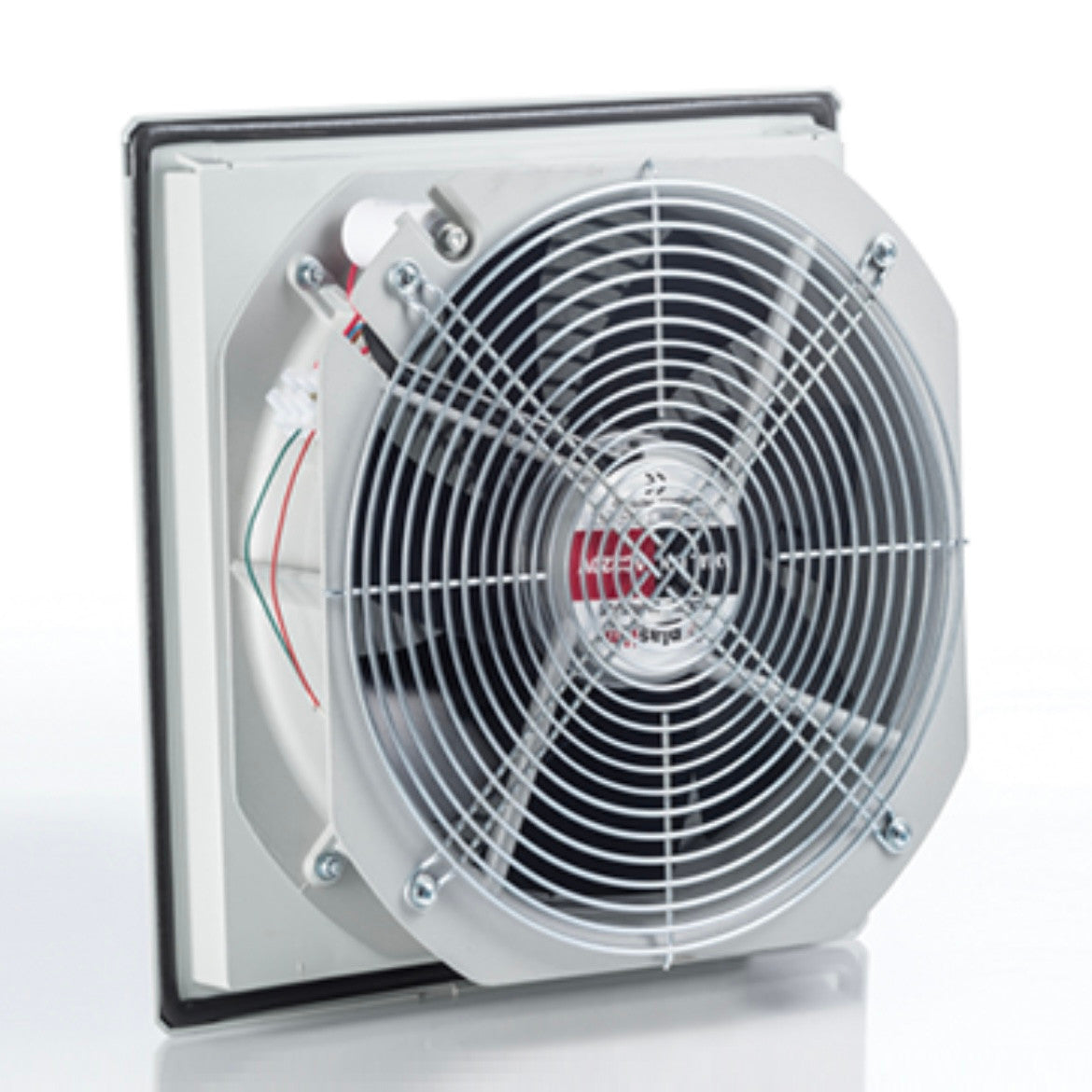

Ventilation grille with fan and filter, size 325 x 325 mm, for installation in control panels, automation cabinets, ATMs, or gaming terminals. PTF5000, manufacturer: Plastim (Turkey)
For outside air intake in control cabinets, ATMs, payment terminals, gaming machines, automation cabinets, switchboards, and gas stations. Typically installed in the side panels of control cabinets to maintain IP.
- External dimensions: 325x325x111 mm
- Installation dimensions: 291x291mm
- Volume flow: 850 (1200) m3/h
- Noise level: 65 (68) dB(A)
- Bearing: ball bearing
- Operating voltage: 220-230VAC, 50/60Hz
- Current consumption: 0.35 (0.72) A
- Rated power: 110 (140) W
- Electrical connection: 4-pin terminal
- Flow direction: outside to inside (can be changed)
- Operating temperature: -10/+70 °C
- Protection class: IP54
- Plastic: UL94 V0 ABS Flame Retardant
- Seal: Polyurethane seal
- Color: RAL 7035 (RAL 7032 on request)
- Weight: 4.12 kg
- Assembly: Quick plug-in
The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.
To ensure automatic air exchange and temperature maintenance with this fan, you will need either a simple bimetal thermostat or a more complex temperature controller, both of which can be purchased on our website.
