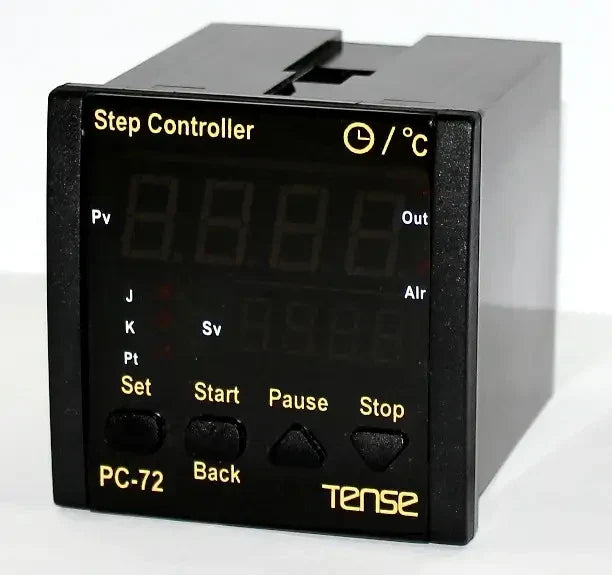

PID temperature controller, for panel and machine/operator field installation, relay outputs, measurement range -100°C ... +1750°C, resolution / step size 0.1ºC, 20 temperature stages / heating stages (made in Turkey, TENSE)

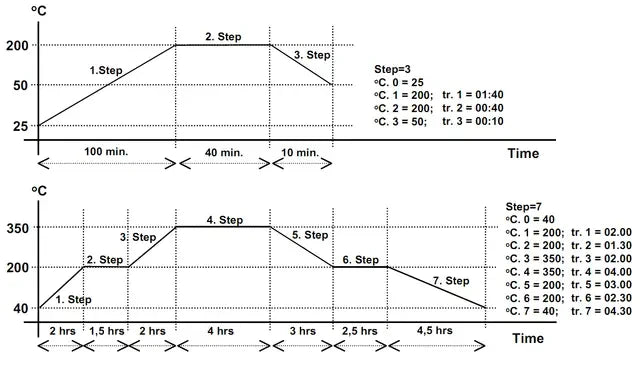

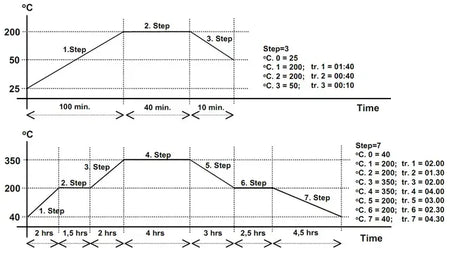

As you can see from the above diagrams, the TENSE thermostat, unlike cheap analog devices, allows the setting of temperature limits and the time it takes for the temperature to reach the set values. This significantly simplifies the programming process. Furthermore, with the PID mode, you can keep the system temperature as close as possible to the set values.

An important difference from the competition is also the simultaneous display of the current temperature, set temperature, adjustment step, and time. The START/STOP/PAUSE/SET buttons on the front panel are very practical - they ensure quick and efficient control of your processes.

Temperature control is done via On/Off or PID control. The controller offers self-optimization that prevents the process values from being overshot.

• Automatic adjustment of PID parameters

• Setting of up to 20 temperature/heating stages

• Each stage is programmed for up to 18 operating hours

• Sensor type: T/C (J,K,T,S,R), Pt100
• Selectable control type: P, PI, PD, PID or ON-OFF

• Automatic elimination of 'overshooting' in PID mode

• Anti-Windup

• Switch-on delay for OUT in cooling operation

• Password protection

• EEPROM memory for storing settings

• Relay outputs OUT (NO+NC) 250VAC, 2A

The measurement range is sensor-dependent and can be set using the buttons on the temperature controller.

Please do not forget to order our temperature sensors - Thermocouple Type J Fe-Const (metric 6/8) with temperature measurement range: -100 °C - +600 °C. Available with 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m, and 5 m long cable --->Linkto the product page
