TENSE

3-phase network parameter analyzer

In stock - 16 items available
SKU: TPM-01ESH
€129,64 VAT included.

3-Phase Network Analyzer / Network Parameter Meter - Multifunctional digital measuring device, current, voltage, frequency, and total power display, with two relay outputs and digital input, RS485 ModBus RTU - TPM-01ESH Manufacturer TENSE (Turkey)

The multifunctional network analyzer is designed for the precise measurement of the parameters of three-phase networks

Power analyzers are designed for measuring and monitoring electrical quantities. With the help of the communication function, energy measurements can be independently monitored and reported.

Main advantages:

  • RS485 Modbus RTU (1200-38400bps)

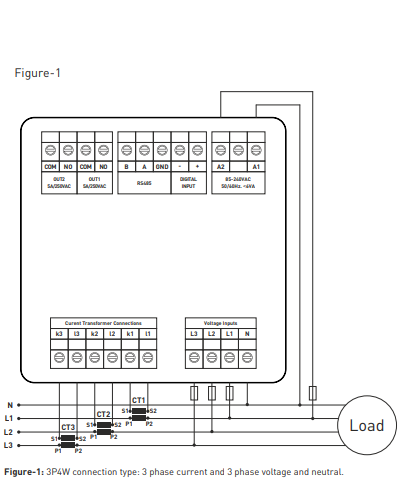

  • 3-phase voltage transformer and 3-phase current transformer.

  • Display of voltage and current harmonics up to the 31st harmonic

  • Display of active power per phase (P)

  • Display of reactive power per phase (Q, inductive and capacitive)

  • Shows the apparent power per phase (S)

  • Displays the cosφ and power factor values ​​of each phase

  • Displays the values ​​of voltage (V) and current (I) between the phases and between the phases and measures the frequency

  • Display of the total values ​​of imported and exported active energy (ΣkWh)

  • Display of the total values ​​of inductive and capacitive reactive energy (ΣkVArh)

  • Display of minimum and maximum values, max.

  • 2 relay outputs, 1 digital input

  • Event logs (high/low voltage/current, voltage/current unbalance, THD-I)

  • The menu is password protected.

This network analyzer is typically used with current transducers—60/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1500/5, or similar. If you would like to connect the analyzer to ModBus, we can provide you with a register table with ModBus addresses upon request.
