3-phase network parameter analyzer

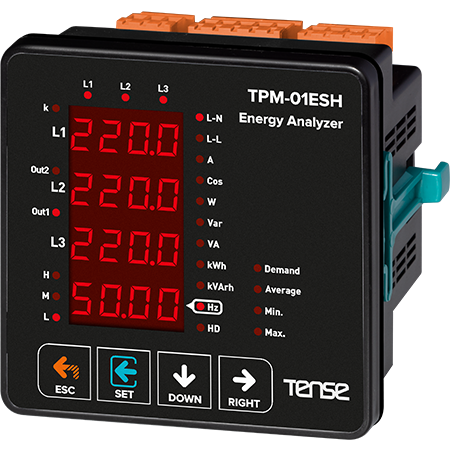

3-Phase Network Analyzer / Network Parameter Meter - Multifunctional digital measuring device, current, voltage, frequency, and total power display, with two relay outputs and digital input, RS485 ModBus RTU - TPM-01ESH Manufacturer TENSE (Turkey)

The multifunctional network analyzer is designed for the precise measurement of the parameters of three-phase networks

Power analyzers are designed for measuring and monitoring electrical quantities. With the help of the communication function, energy measurements can be independently monitored and reported.

Main advantages:

• RS485 Modbus RTU (1200-38400bps)
• 3-phase voltage transformer and 3-phase current transformer.

• Display of voltage and current harmonics up to the 31st harmonic

• Display of active power per phase (P)

• Display of reactive power per phase (Q, inductive and capacitive)

• Shows the apparent power per phase (S)

• Displays the cosφ and power factor values ​​of each phase

• Displays the values ​​of voltage (V) and current (I) between the phases and between the phases and measures the frequency

• Display of the total values ​​of imported and exported active energy (ΣkWh)

• Display of the total values ​​of inductive and capacitive reactive energy (ΣkVArh)

• Display of minimum and maximum values, max.

• 2 relay outputs, 1 digital input

• Event logs (high/low voltage/current, voltage/current unbalance, THD-I)

• The menu is password protected.

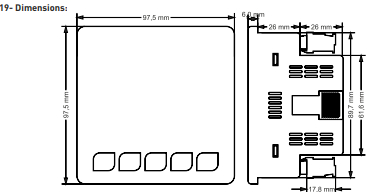

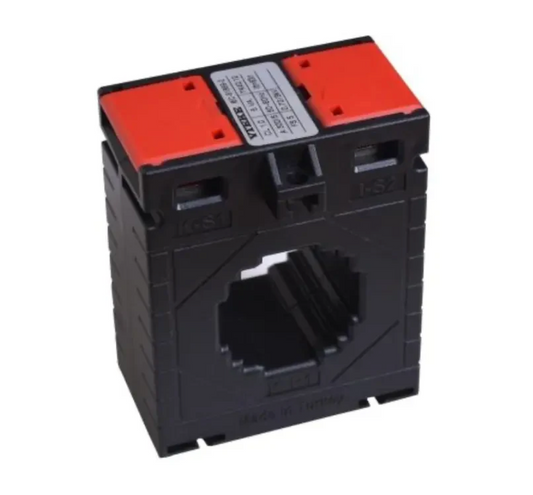

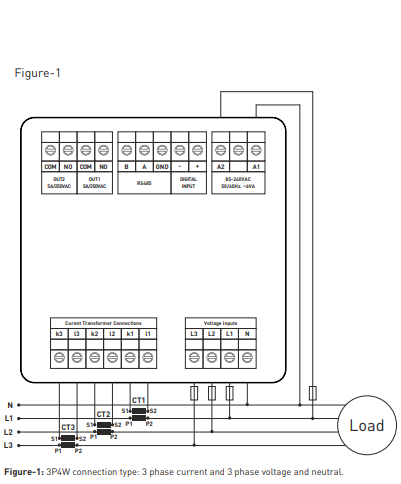

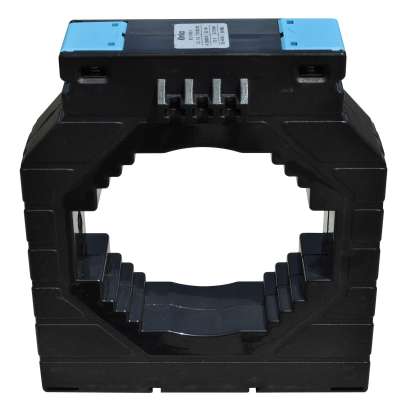

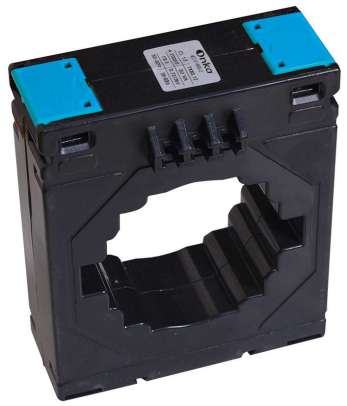

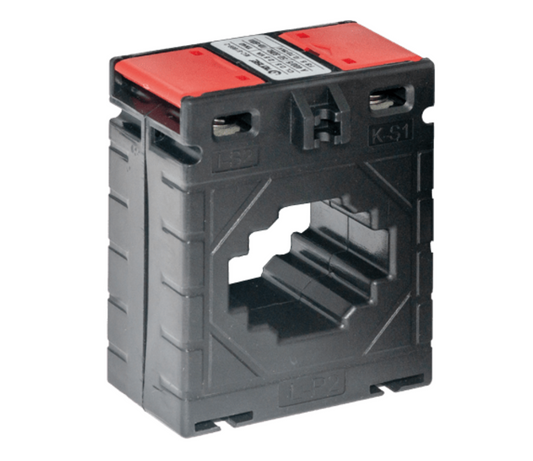

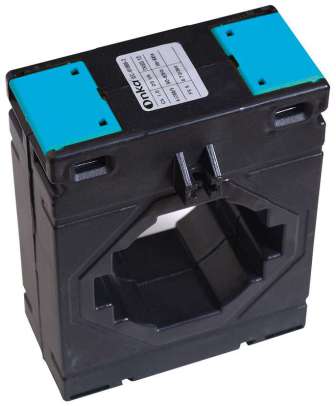

This network analyzer is typically used with current transducers—60/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1500/5, or similar. If you would like to connect the analyzer to ModBus, we can provide you with a register table with ModBus addresses upon request.
