Time relay / ON-DELAY 24 V/AC/DC, 230 V/AC

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

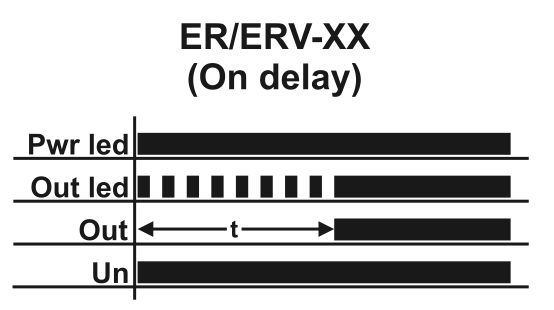

SWITCH-ON DELAY / Delay / Time Delay Monofunction relay with delayed arrival 24 V/DC, 24 V/AC, 230 V/AC with 1 switching contact.

The delay relay is used for gradually switching on loads: electric boilers, furnaces, heaters, etc., thus preventing power surges in the network and the tripping of circuit breakers due to large overvoltages.

It can also be used to coordinate the switching on time of multiple devices in machines, equipment or other systems.

Time range:

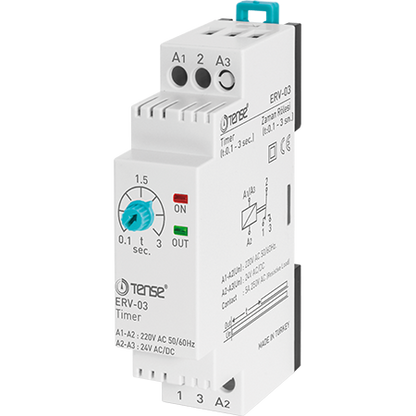

ERV-03 - 0-3 s

ERV-12 - 0-12 sec.

ERV-30 - 0-30 sec.

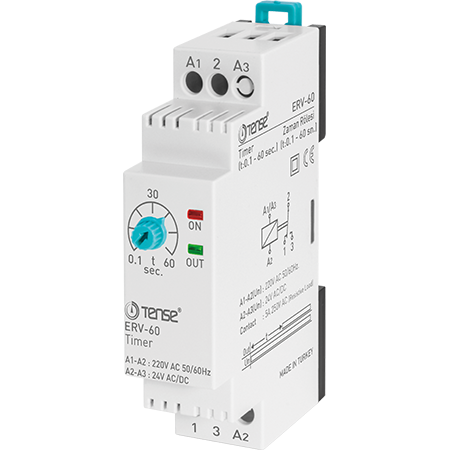

ERV-60 - 0-60 sec.

ERV-03D - 0-3 min.

ERV-12D - 0-12 min.

ERV-30D - 0-30 min.

ERV-60D - 0-60 min.

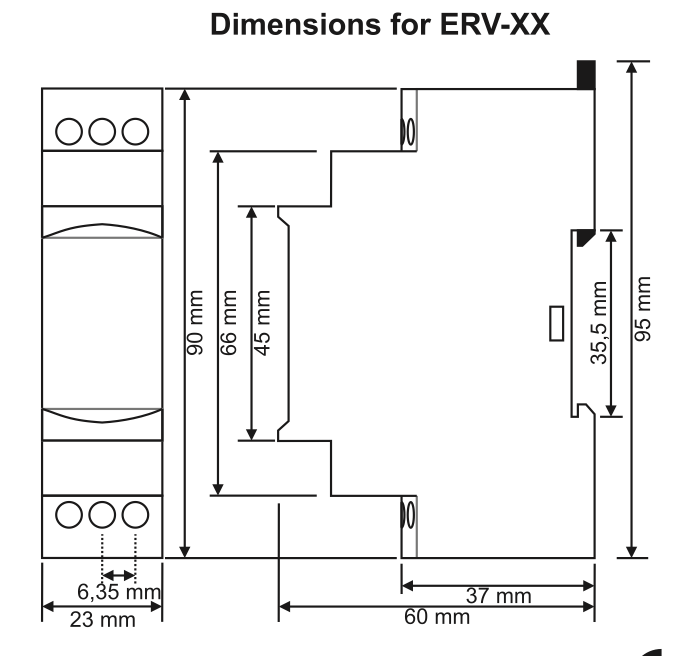

The time relay is mounted on a standard 35mm DIN rail.
