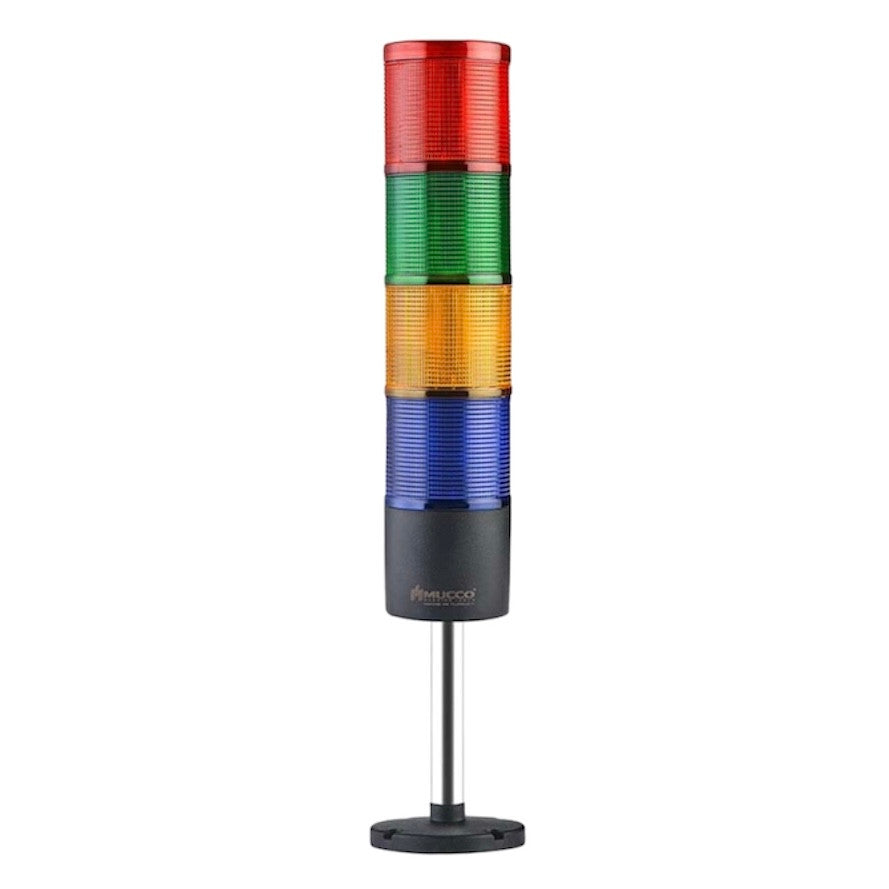

Four-story signal column with surface mounting and 10cm pipe

Four-story signal column with mounting assembly and 10cm pipe, 12-24, 40-250V AC/DC, SNT-7013 / SNT-7022, manufacturer MUCCO (Turkey)

Buzzer options No

Type of light Flashing

TECHNICAL DATA

• Category.
• Current:

12~24V AC/DC: 166mA ±10%
40~250V AC/DC: 30mA ±10% 50-60 Hz

• Housing material: Material: ABS (housing) + Polycarbonate (lens)
• Lens colors: (customizable colors): Red, Green, Yellow, Blue (customizable colors)

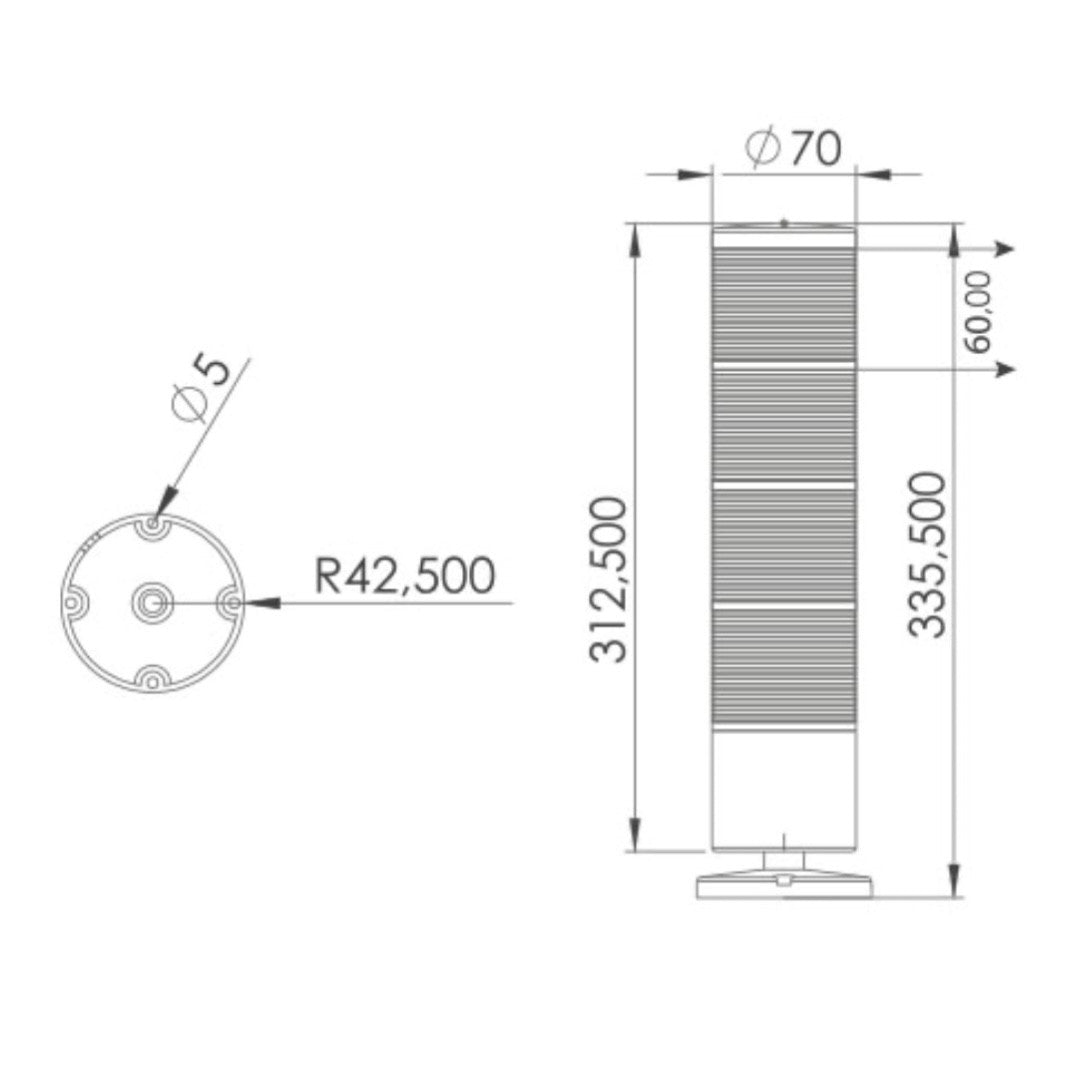

• Diameter of lens: ø70 mm
• Light source: SMD LED
• Light mode: Continuous light, Flashing, Strobe, Rotating.
• Input response time: on/off: max. 10 ms.
• Sound: (wired control): 1 sound
• Alarm: 103~116 dB at 1 m (3.3 ft)
• Connection: Wired connection:
• Mounting type: Folding base and options with external pipe
• Operating conditions: -20°C to +50°C (-4°F to +122°F)
• Life expectancy: Additional points may need to be considered. 50,000 hours
• Protection class: IP65
• Water, dust, heat, and UV resistance.
• ISO-9001, CE, RoHS2 and EAC
