Plastim

Transparent plastic control cabinet door 350x500x190mm IP65 PP3016

Only 3 left
SKU: PP3016
€66,60 VAT included.

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

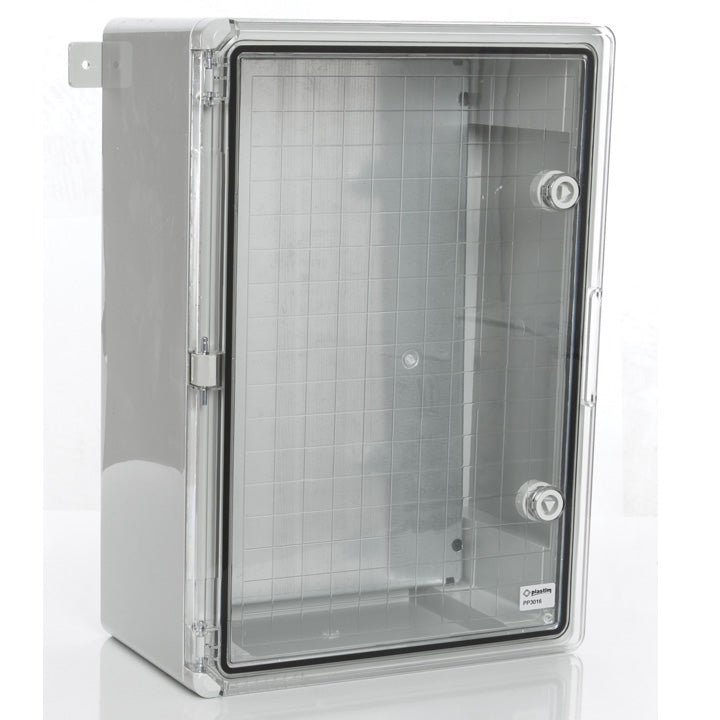

Plastic control cabinet, transparent door, flange 350x500x190mm, IP65, PP3016 Plastim

The new waterproof plastic enclosures from the Turkish company Plastim open a new chapter in the use of plastic protective enclosures for automation and energy distribution tasks.

  • Reinforced housing with metal pin

  • A new housing design with reinforced corners and a greater thickness of the door and the entire product.

  • Extended temperature range in which the protection retains all its enhanced properties from -35/+60C.

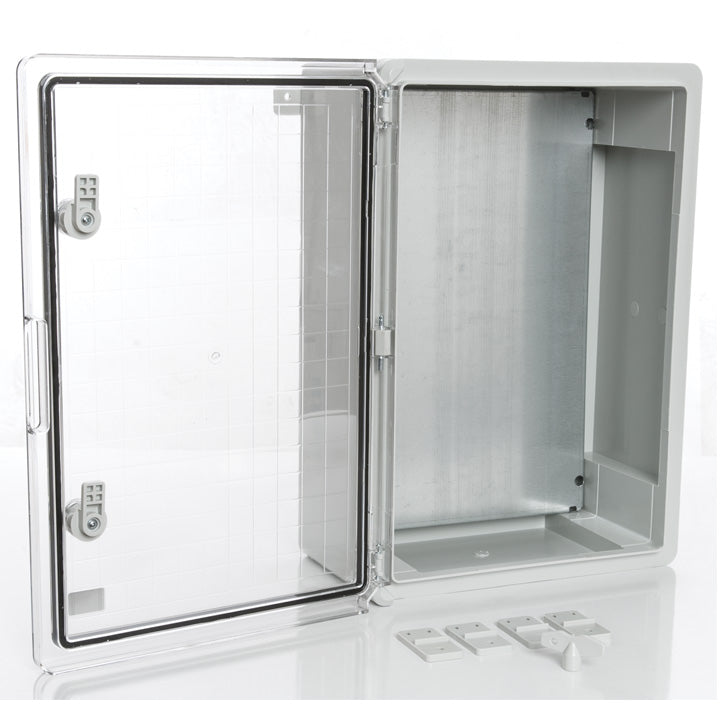

  • Fully corrosion-resistant, lightweight, solid, galvanized metal mounting panel
  • Can be equipped with transparent doors and reinforced metal DIN pin strips;

TECHNICAL MAIN FEATURES

  • Mounting plate: made of 1 mm thick galvanized steel
  • Material: HB ABS halogen-free + Polycarbonate (door).
  • Width: 350 mm
  • Height: 500 mm
  • Depth: 190 mm
  • Color: RAL7035 Light Grey
  • Protection class: IP65, IK08
  • Nominal voltage: up to 690 V
  • Maximum current: up to 800 A
  • Operating temperature: -35°C + 65°C
  • Weight: 4.30 kg
