Plastim

Transparent plastic control cabinet door 300x400x170mm IP65 PP3014

Sold
SKU: PP3014
€39,24 VAT included.

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

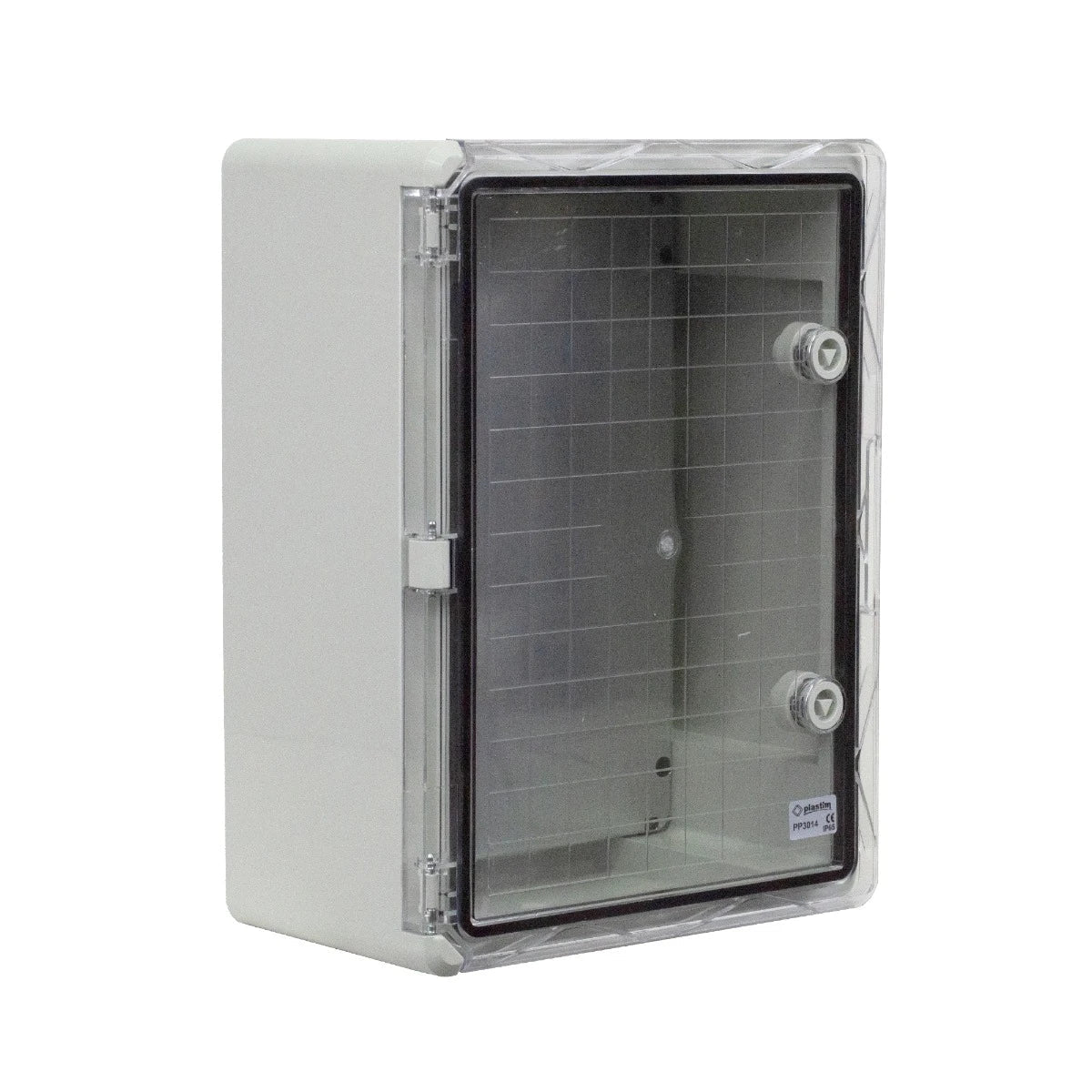

Plastic control cabinet, transparent door, flange 300x400x170mm, IP65, PP3014 Plastim

The new waterproof plastic enclosures from the Turkish company Plastim open a new chapter in the use of plastic protective enclosures for automation and energy distribution tasks.

  • Reinforced housing with metal pins

  • A new housing design with reinforced corners and a greater thickness of the door and the entire product.

  • Extended temperature range in which the protector retains all its enhanced properties -25/+60C

  • Fully corrosion-resistant, lightweight, solid, and galvanized metal mounting panel
  • Can be equipped with transparent doors and DIN rails with reinforced metal pins;

MAIN TECHNICAL FEATURES

  • Mounting plate: made of 1 mm thick galvanized steel
  • Material: HB ABS halogen-free + Polycarbonate (door).
  • Width: 300 mm
  • Height: 400 mm
  • Depth: 170 mm
  • Color: RAL7035 Light Grey
  • Protection class: IP65, IK08
  • Nominal voltage: up to 690 V
  • Maximum current: up to 800 A
  • Operating temperature: -35°C + 65°C
  • Weight: 3.00 kg
