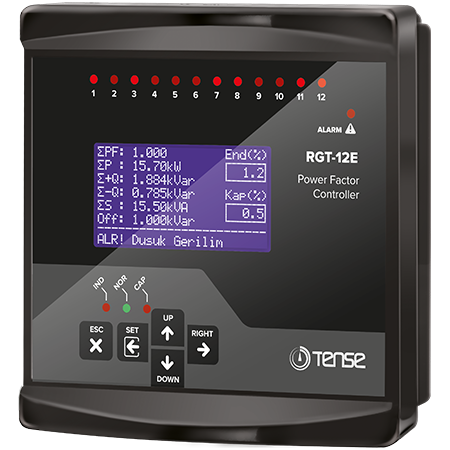

12-step + TCR reactive power controller with 2.9" graphic LCD display (TENSE)

The reactive power controller RGT-12E (TENSE) is a fully automatic device for the optimal switching of compensation stages.

The digital processing of the values ​​measured by the controller ensures high accuracy in the evaluation of effective voltage, current and power factor.

The device's installation is fully automatic—the controller itself determines the size of the individual connected compensation stages. These parameters can also be entered directly manually.

The controller connects and disconnects the compensation stages in such a way that the reactive power is controlled with a minimum number of switching operations. The controller takes into account the even load distribution of the individual stages and preferentially switches the stages that have been de-energized the longest and whose residual charge is minimal. During the control process, the compensation stages are continuously monitored in parallel – failures and value changes are detected, temporarily removed stages are periodically checked, and reincorporated into the control process as needed.

• Generator input and generator compensation

• Adjustable switch-on, discharge and settling times

• Single-phase, two-phase and three-phase capacitors and shunt reactors can be connected

• Harmonic voltage and current can be monitored up to the 31st harmonic

• Total energy can be monitored (import/export)

• THD-V and THD-I values ​​of each phase can be observed

• Creating a performance analysis (20 samples 9999 min.) - for capacitor selection
