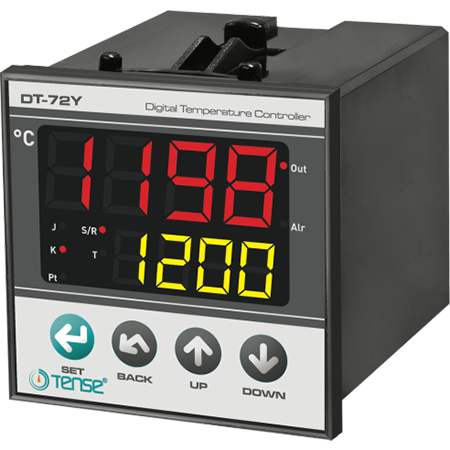

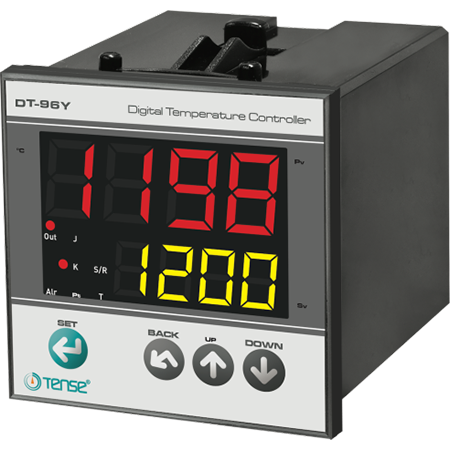

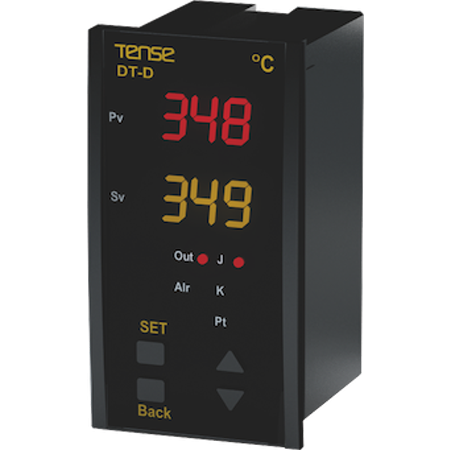

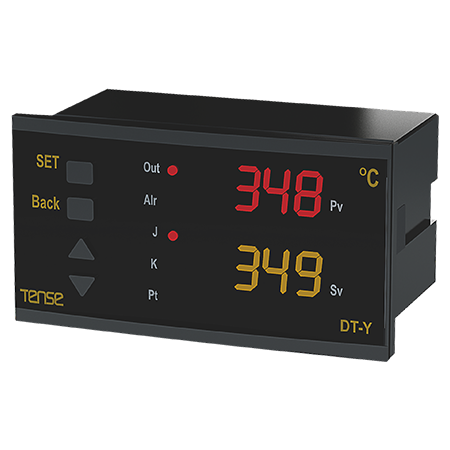

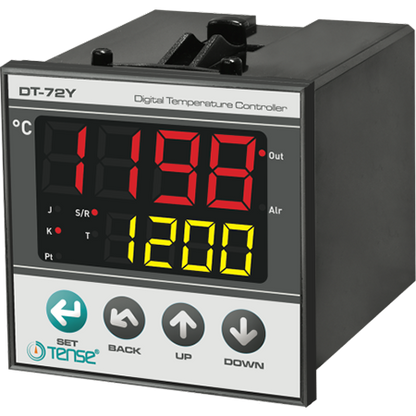

PID temperature controller for panel mounting, measurement range -100°C ... +1750°C, resolution / step size 0.1ºC (made in Turkey, TENSE)

Control and monitoring of thermal processes in heating, air conditioning, and ventilation systems, building automation, industrial plants.

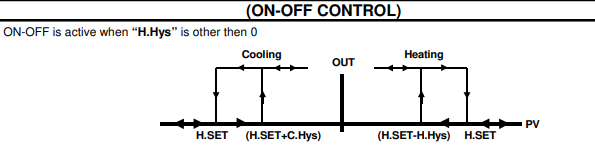

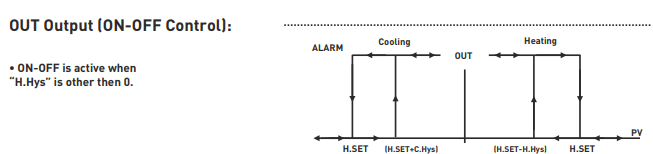

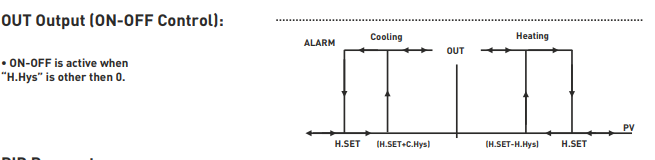

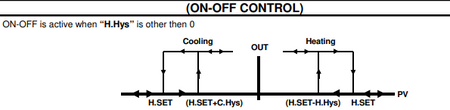

The temperature controller is implemented through ON/OFF or PID control. The controller offers self-optimization to prevent overshooting of the process.

• Automatic adjustment of PID parameters

• Sensor type: T/C (J,K,T,S,R), Pt100
• Selectable control type: P, PI, PD, PID, or ON-OFF.

• Automatic elimination of 'overshooting' in PID mode

• Anti-Windup

• Switch-on delay for OUT in cooling operation

• Password protection

• EEPROM memory for storing settings

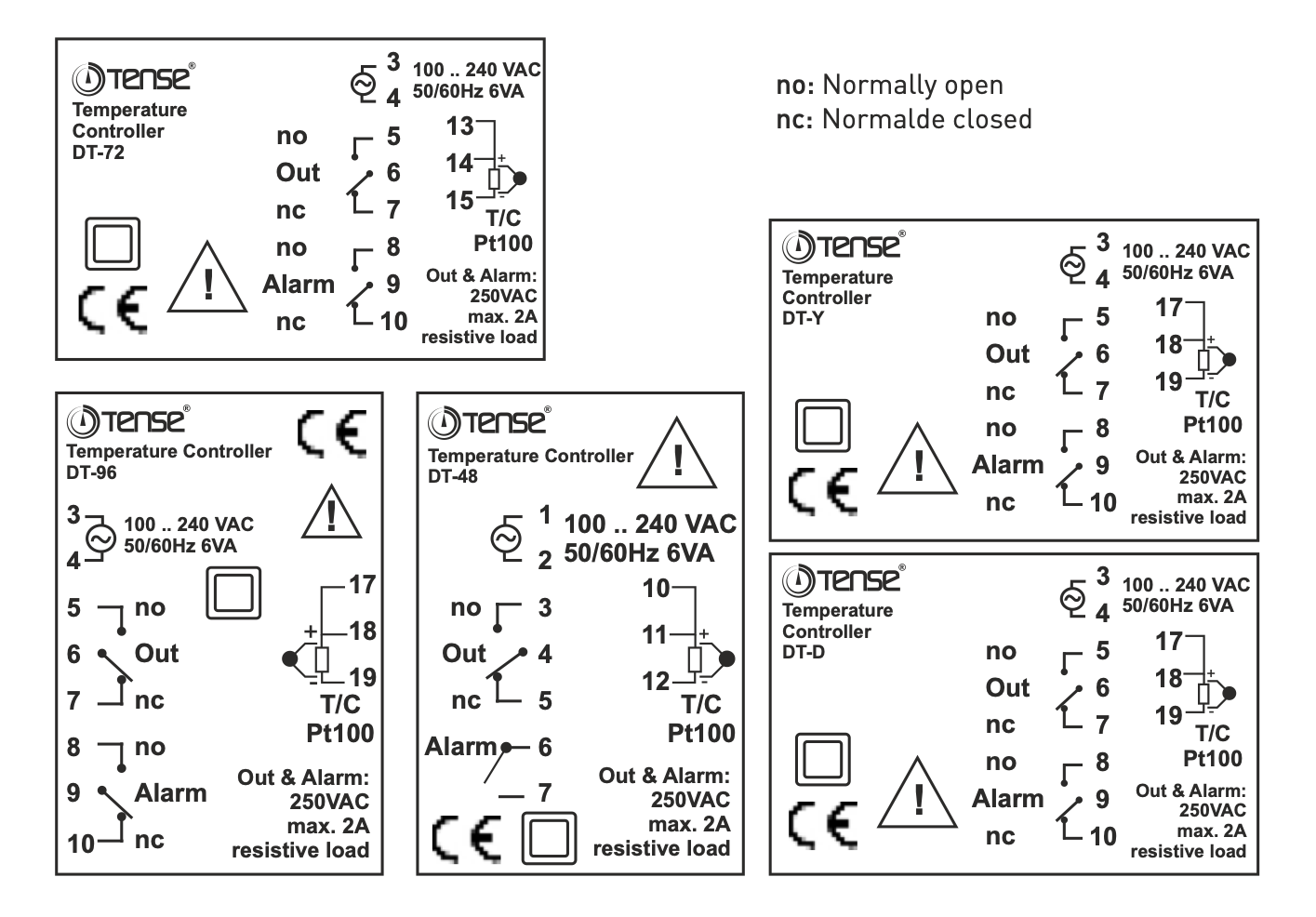

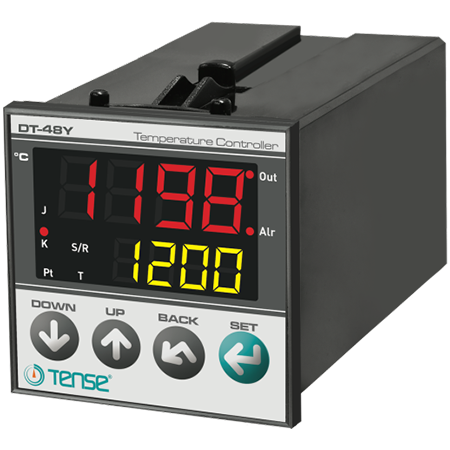

• Relay outputs OUT and ALARM (NO+NC) 250 VAC, 2A (ALARM ON only with DT-48Y)

The measurement range depends on the sensor and can be set using the buttons on the temperature controller.

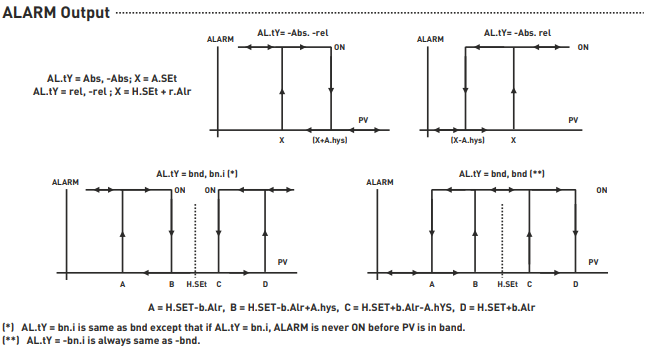

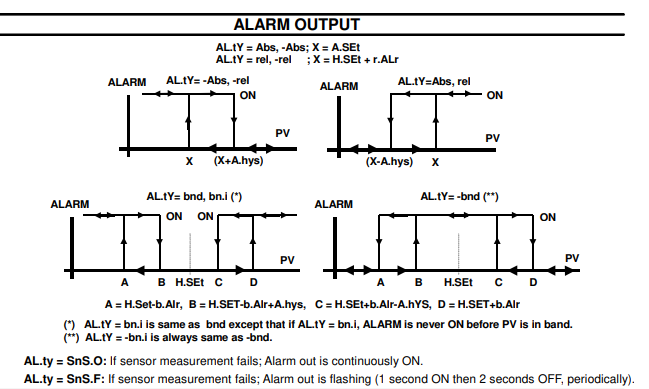

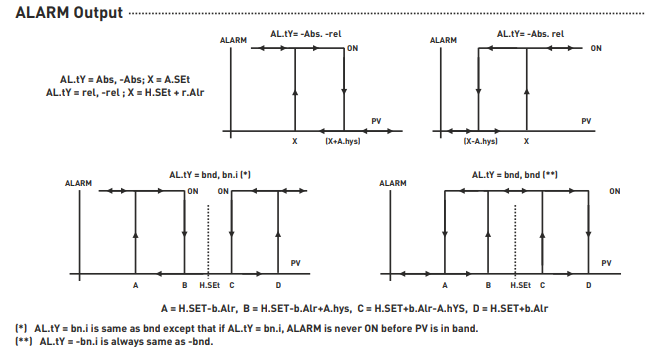

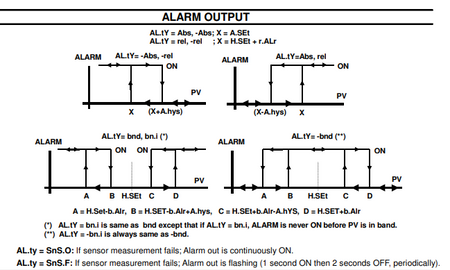

The display of the temperature controller is a high-contrast display that can only be read accurately under deteriorated conditions. In addition to the control output, the temperature controller has an additional alarm relay that activates a voltage-free contact when the value is exceeded or undershot.
