PHG02 Hygrostat setting range 10-90 %RH, Plastim
Failed to load pickup availability
Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.
Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.
Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.
On account – This payment method is available to partners who have concluded a framework agreement with our company.
If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.
The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

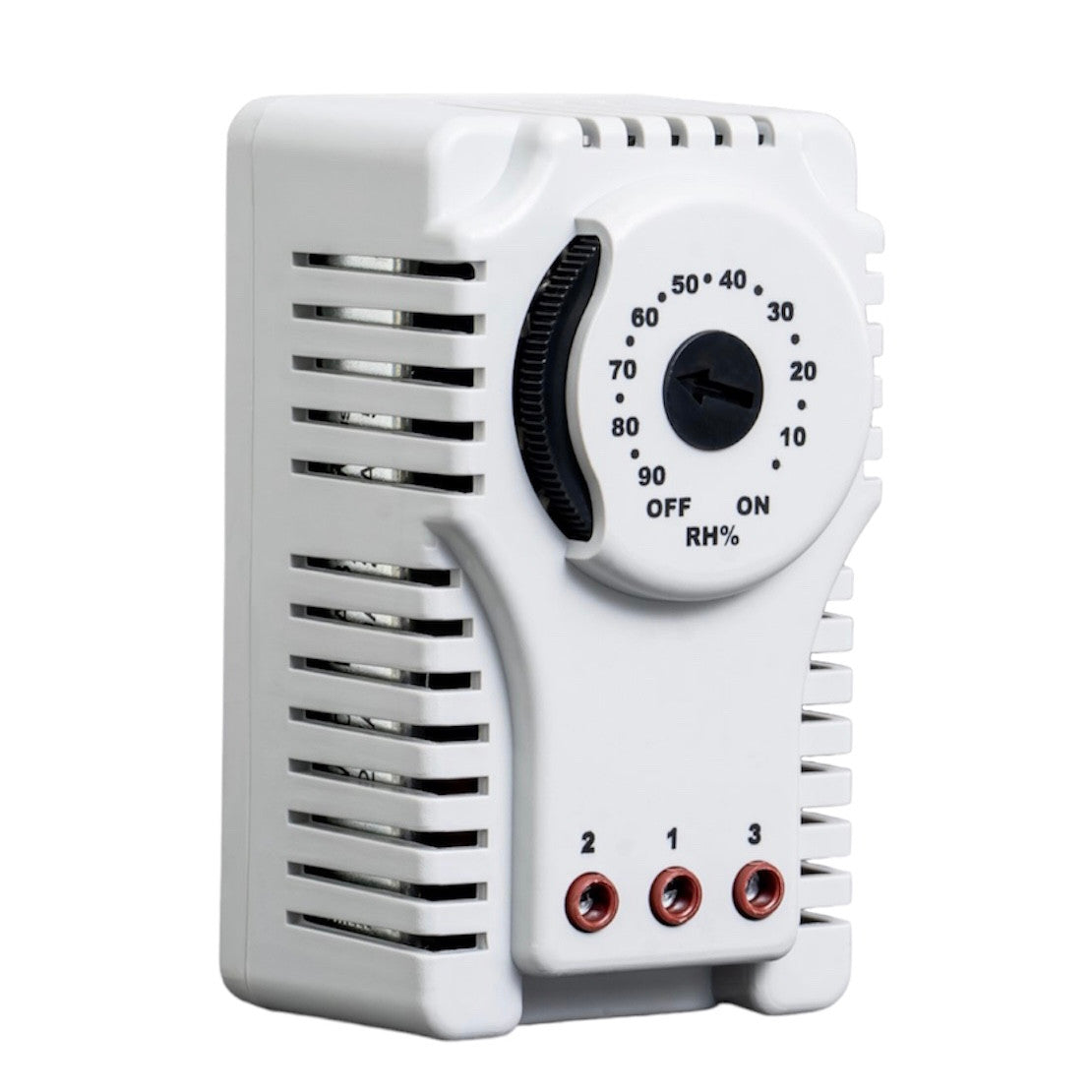

PLASTIM PHG02 hygrostat 110-250VAC (10A-5A current load), 10 - 90%RH, screw terminals IP20
This hygrostat (mechanical relay for humidity control, or hygrometer or hygrostat) can be used for both humidity reduction and humidity increase. For this purpose, the device is equipped with a switching contact that allows this hygrostat to be used for any humidity control task.
This humidity control relay is designed for installation in control panels, ATMs, payment terminals, gaming machines or other rooms to control the humidity and switch on the corresponding heating or drying devices.
Manufacturer code |
Unit |
PHG02 |
Tension |
V AC |
110-250 |
Setting range |
% RH |
10-90 |
Color potentiometer |
- |
Black |
current |
A |
(10-5) |
Hysteresis |
- |
%5 - %10 |
Sensor type |
- |
polyamide tape |
Electrical connection |
- |
3-pin terminal |
Cable cross-section |
- |
0.75 mm² - 4.0 mm² |
Operating temperature |
°C |
+10/+60 |
Storage temperature |
°C |
+10/+60 |
Degree of protection |
- |
IP20 |
Color of the case |
- |
RAL7035 |
Installation |
- |
DIN rail 35mm |
Dimensions |
mm |
94x54x56 |
Weight |
G |
180 |
