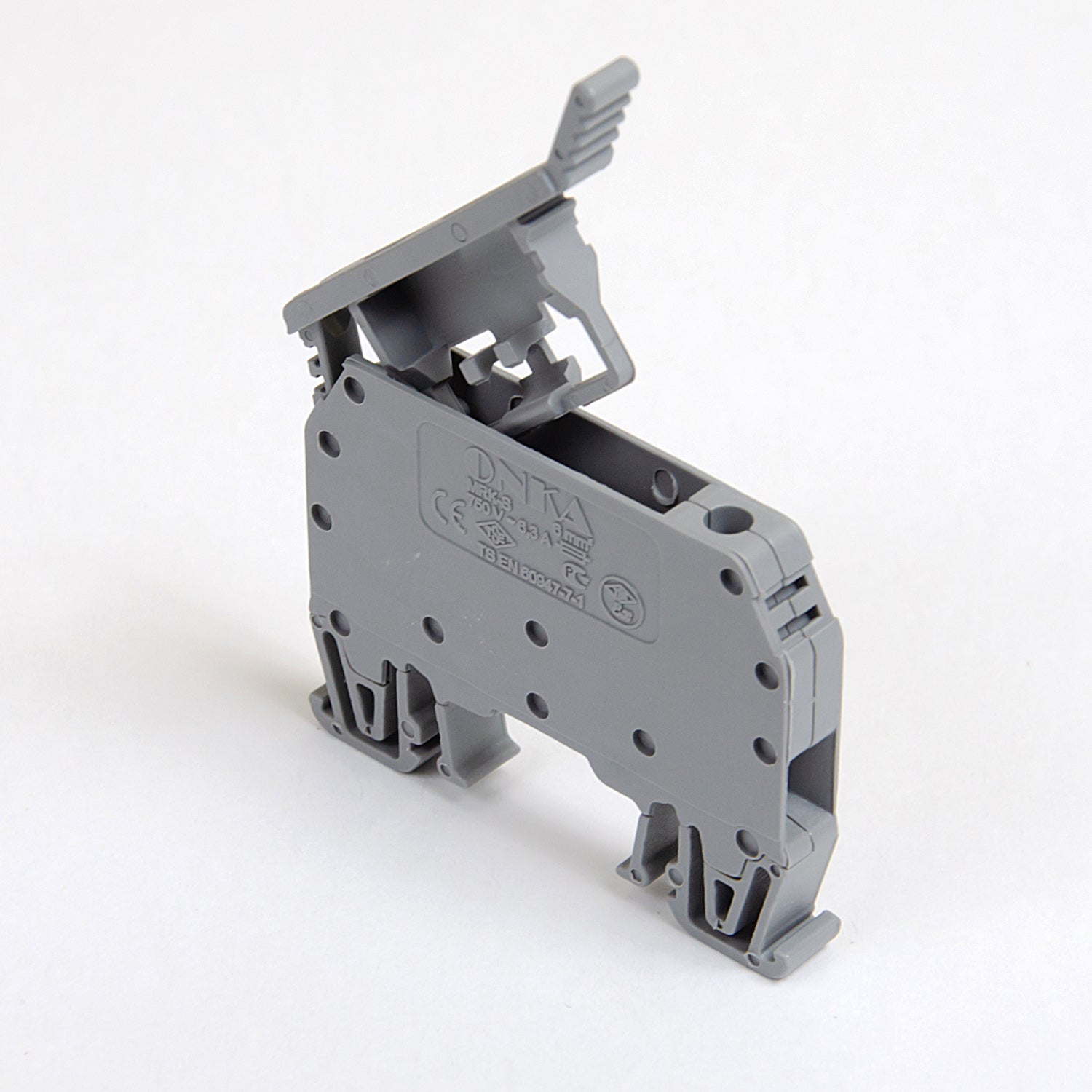

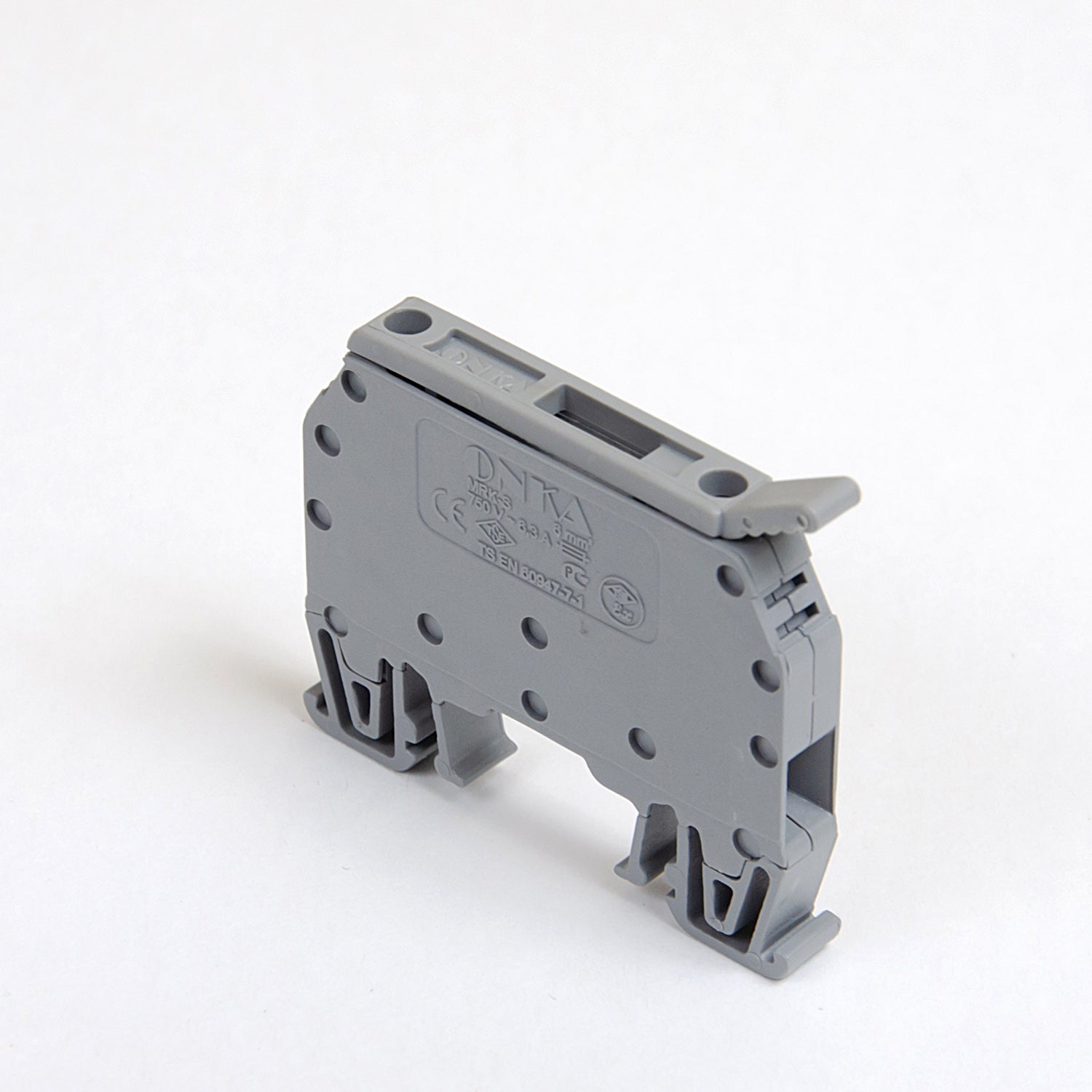

ONKA 6mm2 screw connection terminal block (fuse not included) gray, 1010241

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

Used for the protection of AC or DC circuits with low current. A 5x20 mm fuse with a current rating of up to 6.3 A is installed in the terminal. The fuse is not included and must be ordered separately.

Technical parameters

Cross-section of the connected single wire up to: 6mm2
Color: gray
Insulating material of the main housing: Polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Tightening torque: 0.8 Nm
Connection position: side / side
Length of the cable tie: 10mm
Electrical connection type: screw terminal
Rated voltage: 750V
Rated current: 6.3A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting type: DIN 35 mm mounting rail
Standard: EN-60947-7-1
