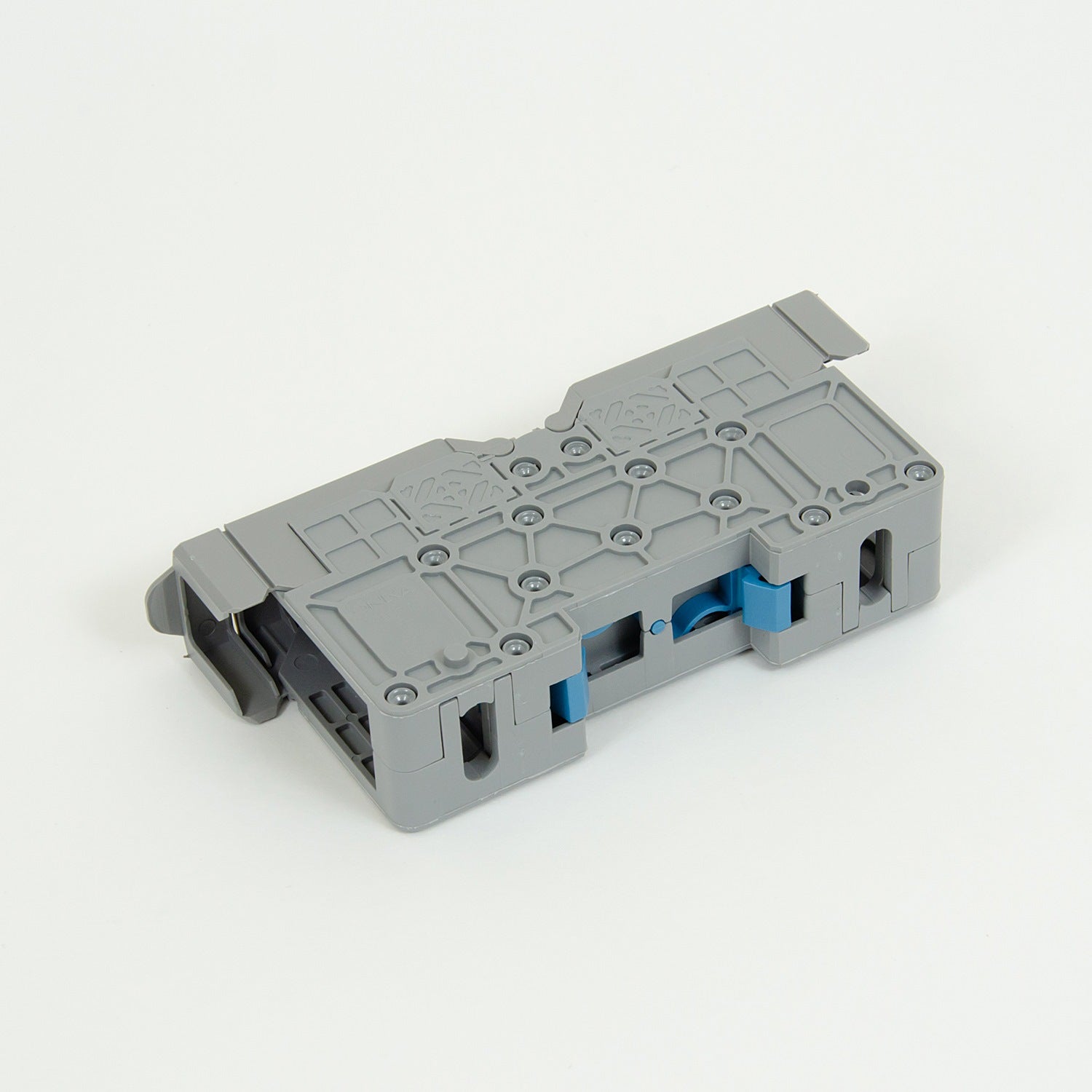

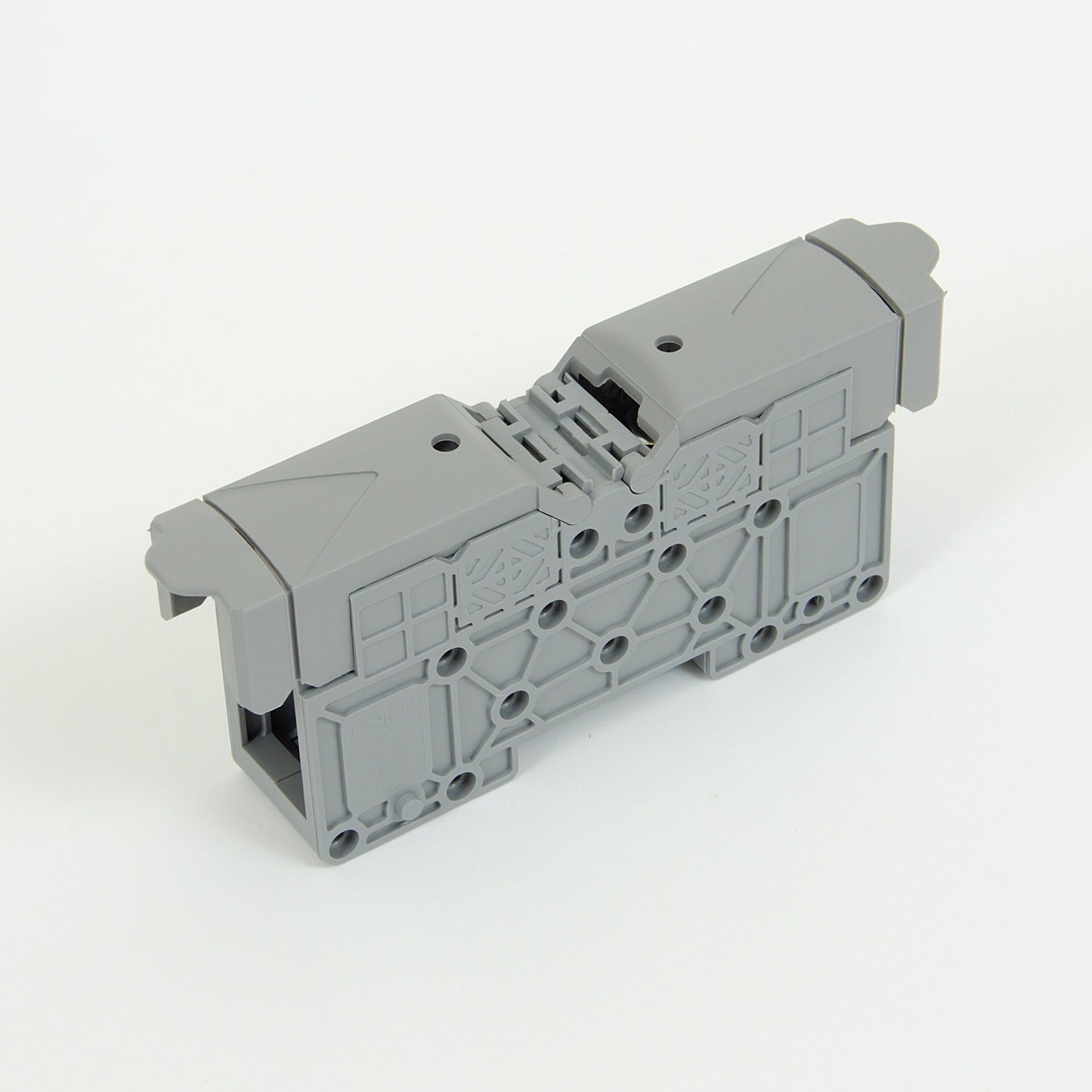

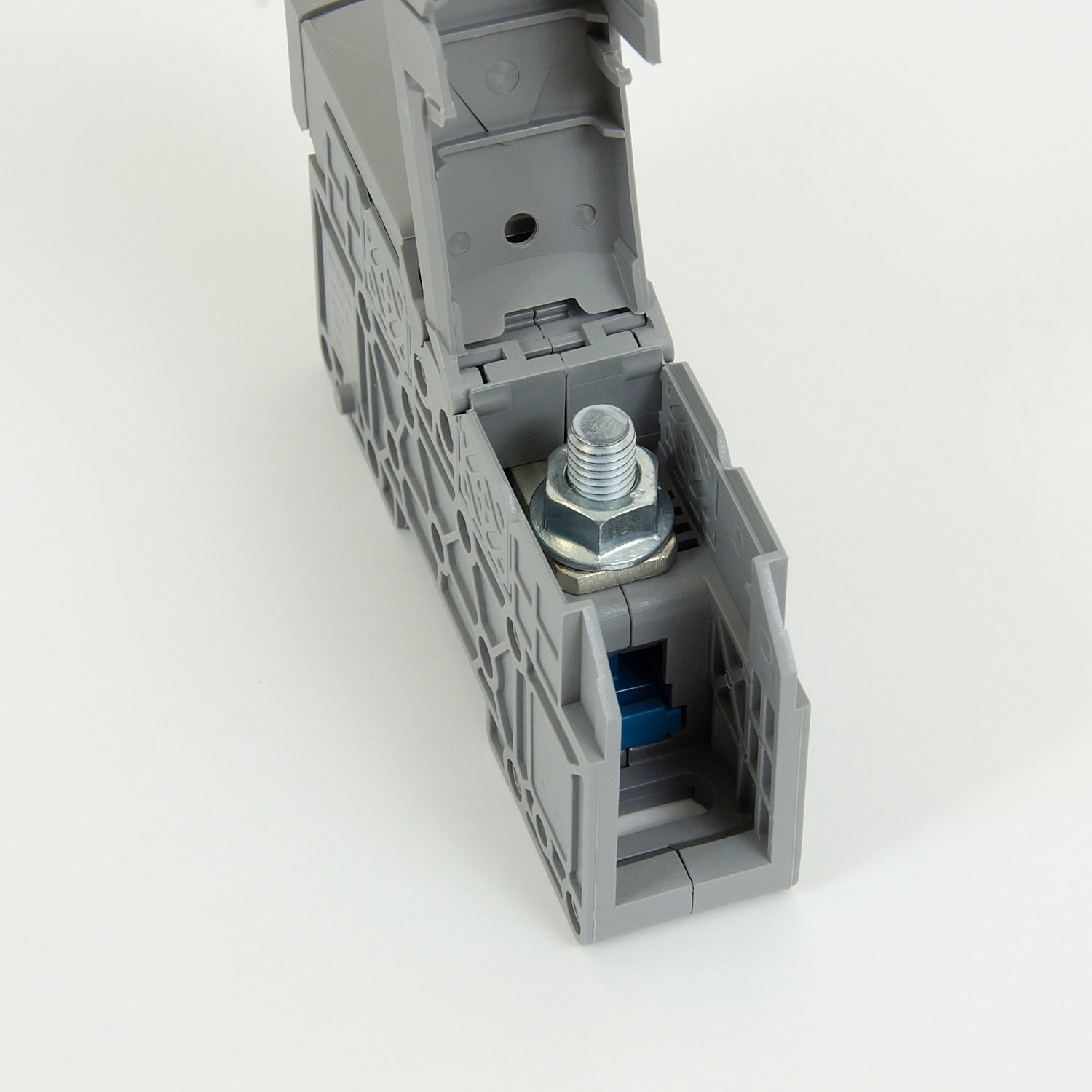

M8, 50mm2, screw busbar connector / DIN rail terminal with protective cover, gray, ONKA, made in Turkey

The compact ONKA installation rail connectors offer a variety of connection options for any conductors with different cross-sections. The transparent housing allows for easy checking of the correct arrangement of the wires. The original ONKA quick couplings provide high assembly comfort and 100% connection reliability.

Technical parameters

Cross-section of the connected single conductor up to: 50mm2
Color: gray
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Connection position: side / side
Nominal voltage: 1000V
Rated current: 150A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting type: DIN 35 mm mounting rail
