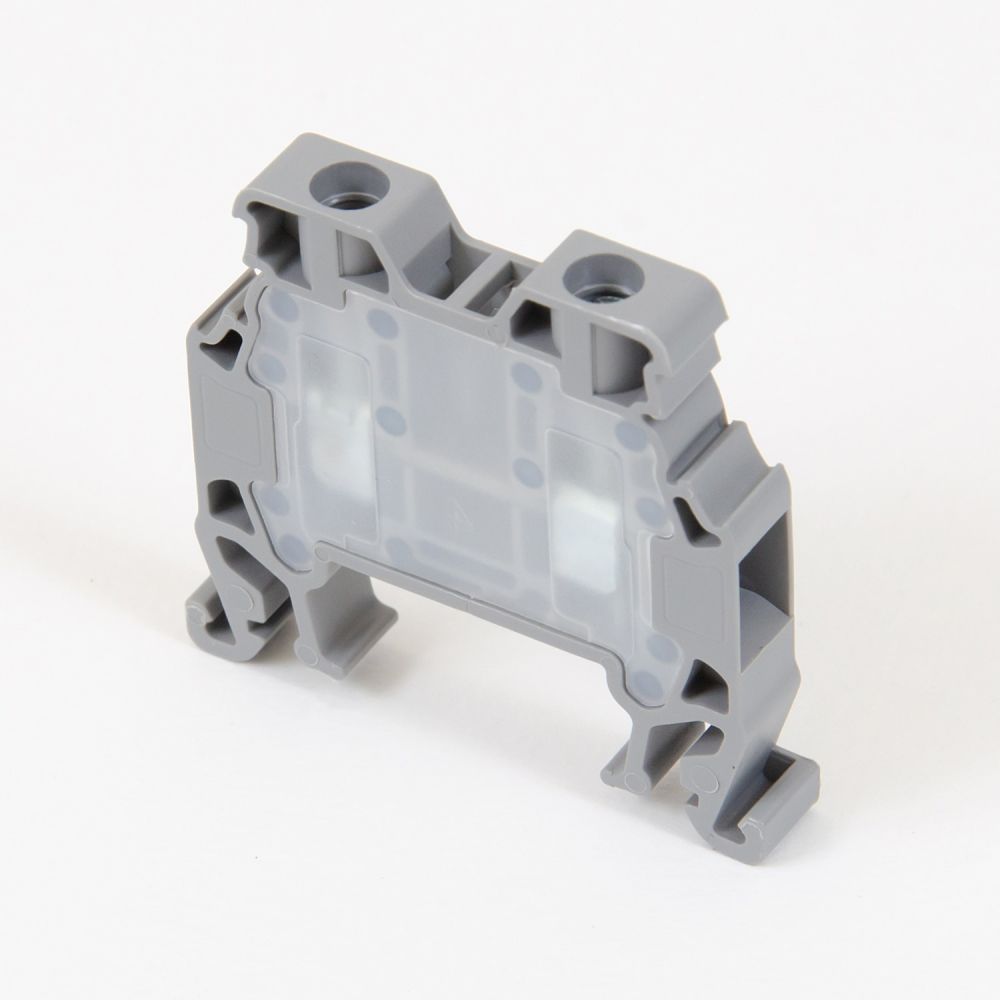

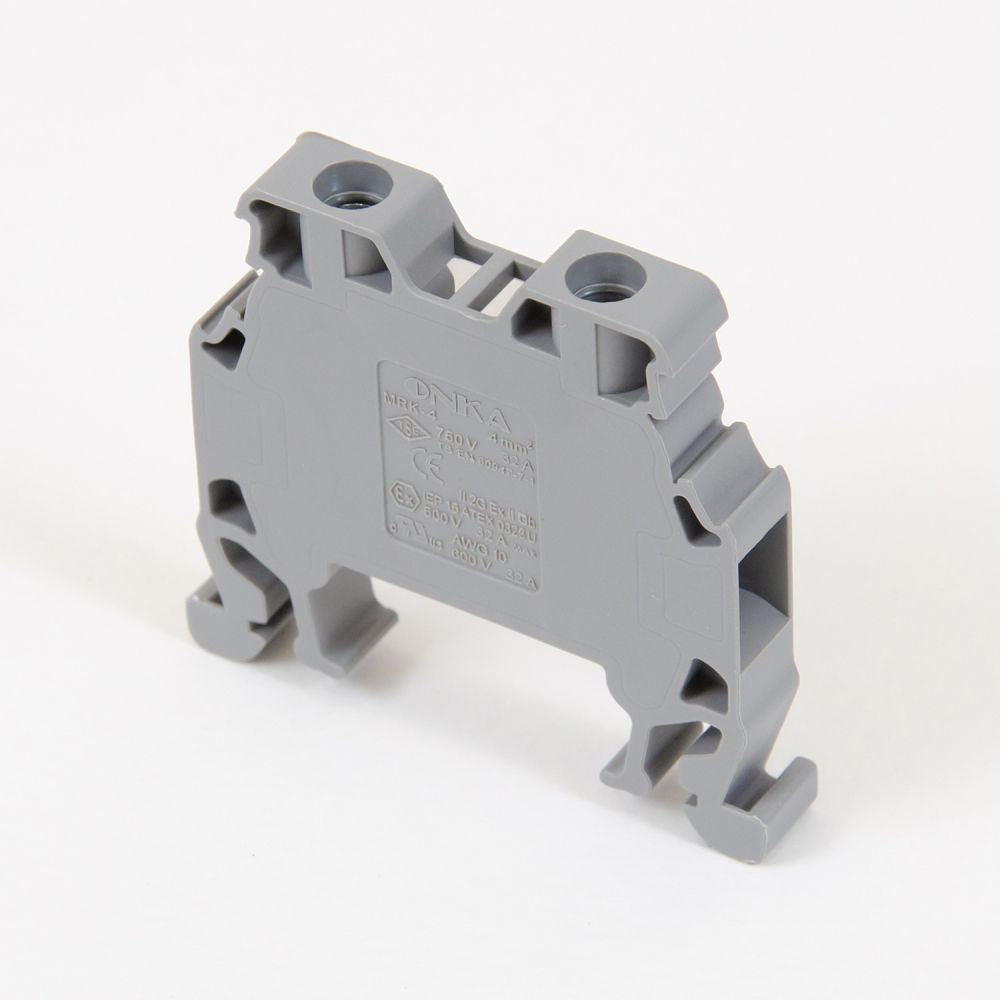

Screw busbar connector / DIN rail terminal 2-pole gray, ONKA, made in Turkey

The compact ONKA installation rail connectors offer a variety of options for connecting any cables with different cross-sections. The transparent housing allows for easy checking of the correct arrangement of the wires. The original ONKA quick couplings provide high installation comfort and 100% connection reliability.

Technical parameters

Cross-section of the connected single conductor up to: 4mm2
Color: gray
Insulating material of the main housing: polyamide (PA6.6)
Material contact/bridge: CK45 steel/copper
Tightening torque: 0.5 Nm
Connection position: side / side
Length of the cable tie: 10mm
Electrical connection type: screw terminal
Rated voltage: 750V
Rated current: 32A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting type: DIN 35 mm mounting rail
Standard: EN-60947-7-1
