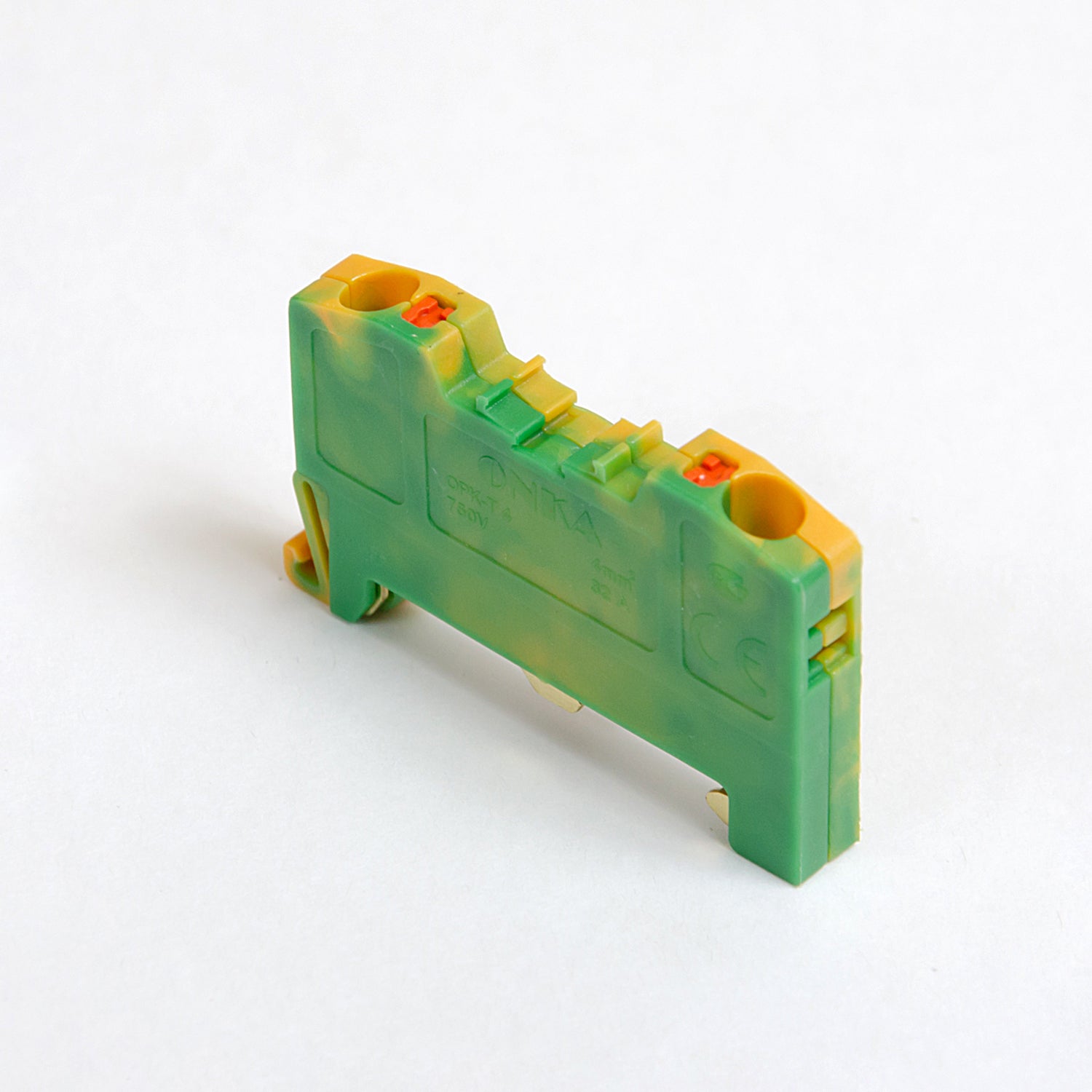

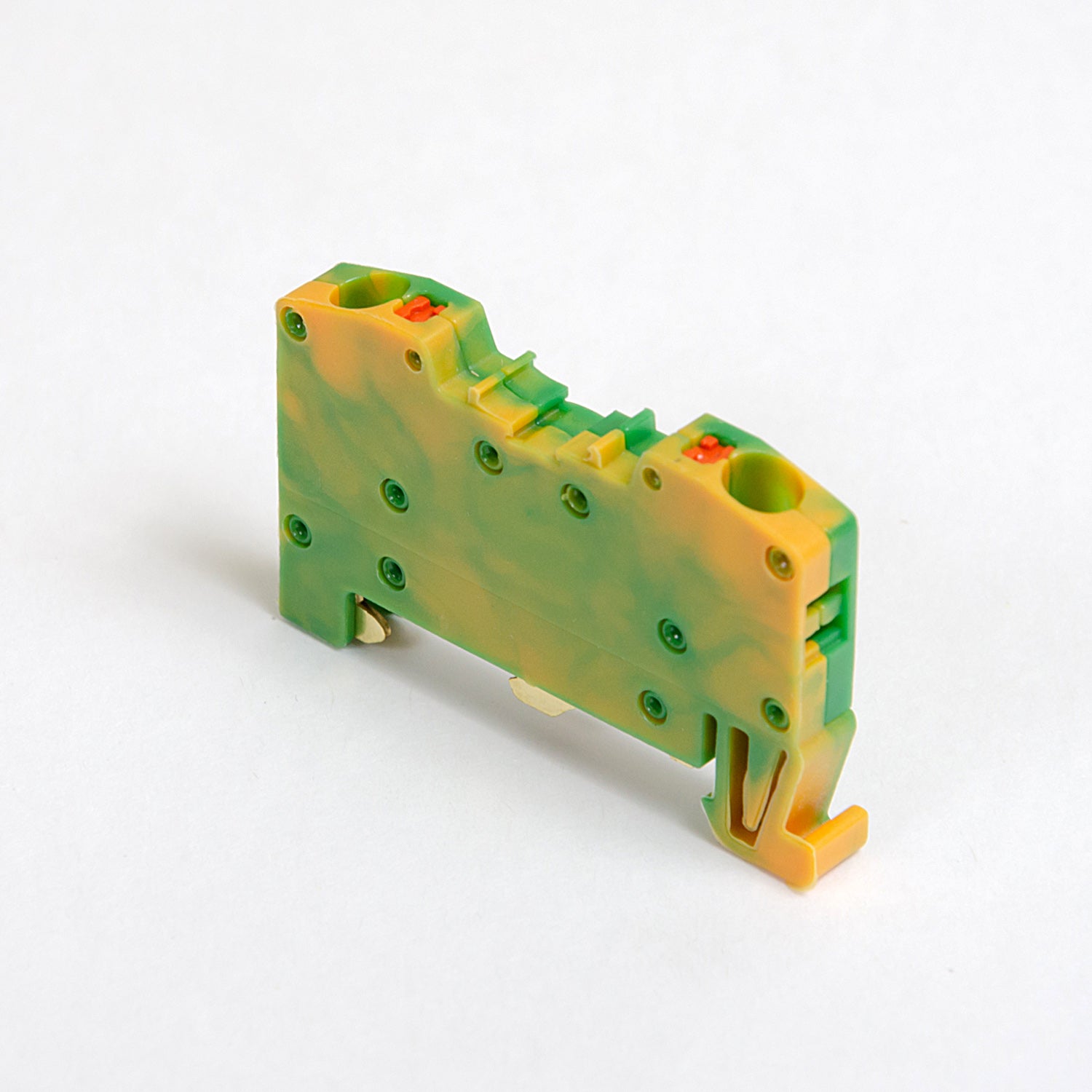

PE spring busbar connector / DIN rail clamp 2-wire green-yellow, ONKA, made in Turkey

The compact ONKA installation rail connectors offer a variety of options for connecting any cables with different cross-sections. The transparent housing makes it easy to check the correct arrangement of the wires. The original ONKA quick couplings provide high mounting comfort and 100% connection reliability.

Technical parameters

Cross-section of the connected single conductor up to: 4mm2
Color: Green-yellow (camouflaged)
Insulating material of the main housing: polyamide (PA6.6)
Material contact/bridge: CK45 steel/copper
Connection position: Top / top
Length of the cable tie: 9mm
Electrical connection type: Spring clamp
Rated voltage: 750V
Operating temperature range: -40°C... 140°C
Mounting type: Support rail DIN 35 mm
Standard: EN-60947-7-1
