ONKA 4mm2 spring terminal block DIN rail clamp 2-pole blue, 1020027

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

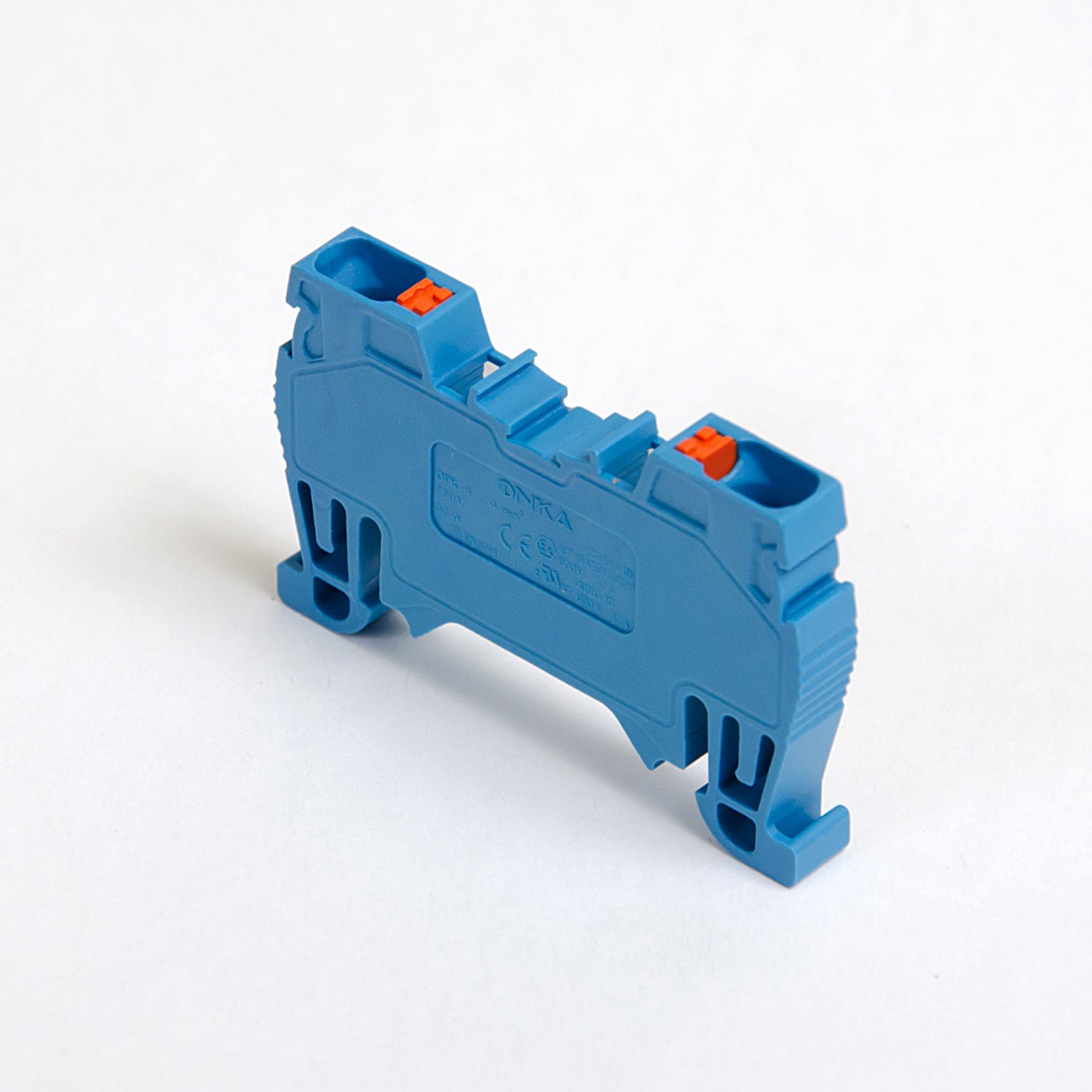

Spring busbar connector / DIN rail clamp 2-pole, retractable contact, blue, ONKA, made in Turkey.

The ONKA coupling/clamp is a reliable solution for anyone looking for functional and durable elements in electrical installations.
Made from high-quality materials, the coupling guarantees a long lifespan and resistance to mechanical damage.

Technical parameters

Cross-section of the connected single cable up to: 4mm2
Color: blue
Insulating material of the main housing: Polyamide (PA6.6)
Contact/bridge material: Stainless steel/Copper
Connection position: top / top
Length of the cable tie: 9mm
Electrical connection type: Spring clamp/Removable contact
Rated voltage: 750V
Rated current: 32A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting type: DIN 35 mm mounting rail
Standard: EN-60947-7-1
