ONKA 4mm2, 2-stage screw terminal block DIN rail clamp 4-pole gray, 1010368

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

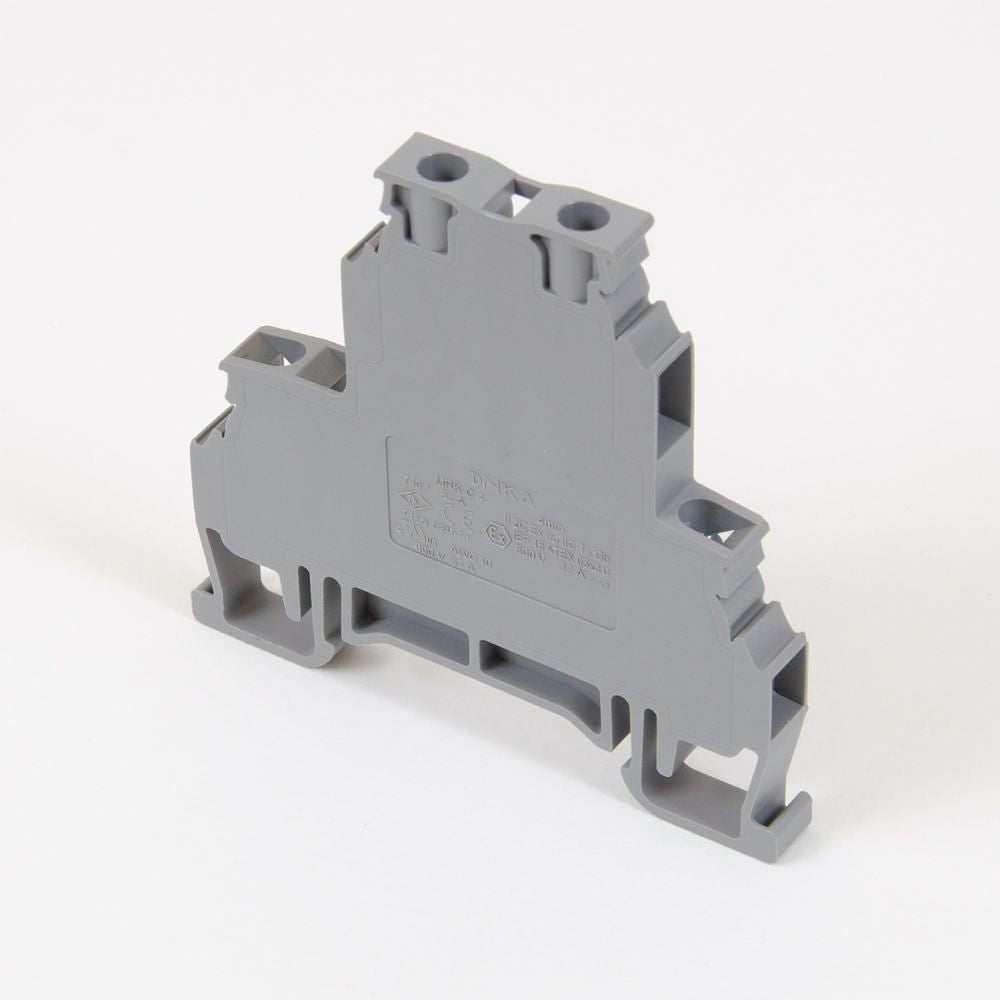

2-pair screw busbar connector / DIN rail terminal 4-wire gray, ONKA, made in Turkey

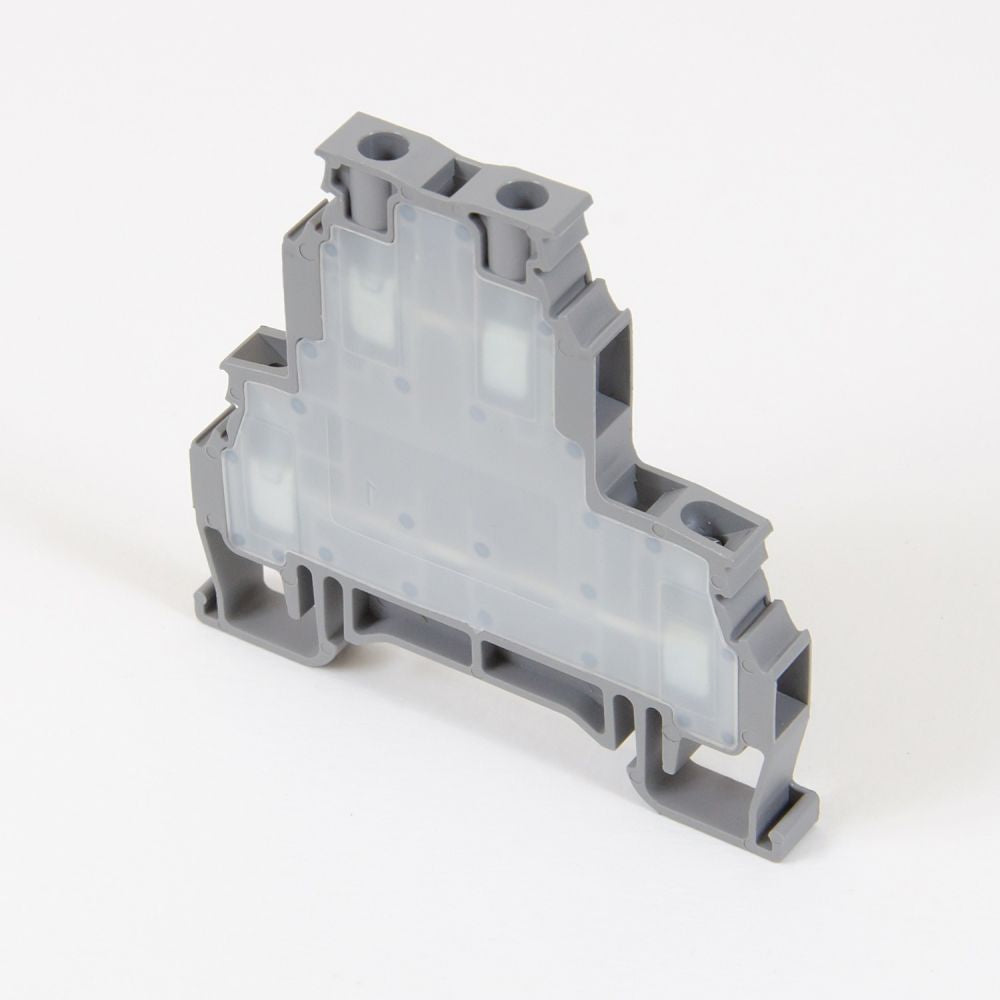

The compact ONKA installation rail connectors offer a variety of connection options for any cables with different cross-sections. The transparent housing makes it easy to check the correct arrangement of the wires. The original ONKA quick couplings provide high assembly comfort and 100% connection reliability.

Technical parameters

Cross-section of the connected single conductor up to: 4mm2
Color: gray
Insulating material of the main housing: polyamide (PA6.6)
Material contact/bridge: CK45 steel/copper
Tightening torque: 0.5 Nm
Connection position: side / side
Length of the cable tie: 10mm
Electrical connection type: screw terminal
Rated voltage: 750V
Rated current: 32A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting type: DIN 35 mm mounting rail
Standard: EN-60947-7-1
