ONKA 4mm2, 2-fold spring-loaded terminal block DIN rail clamp 4-conductor gray, 1020406

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

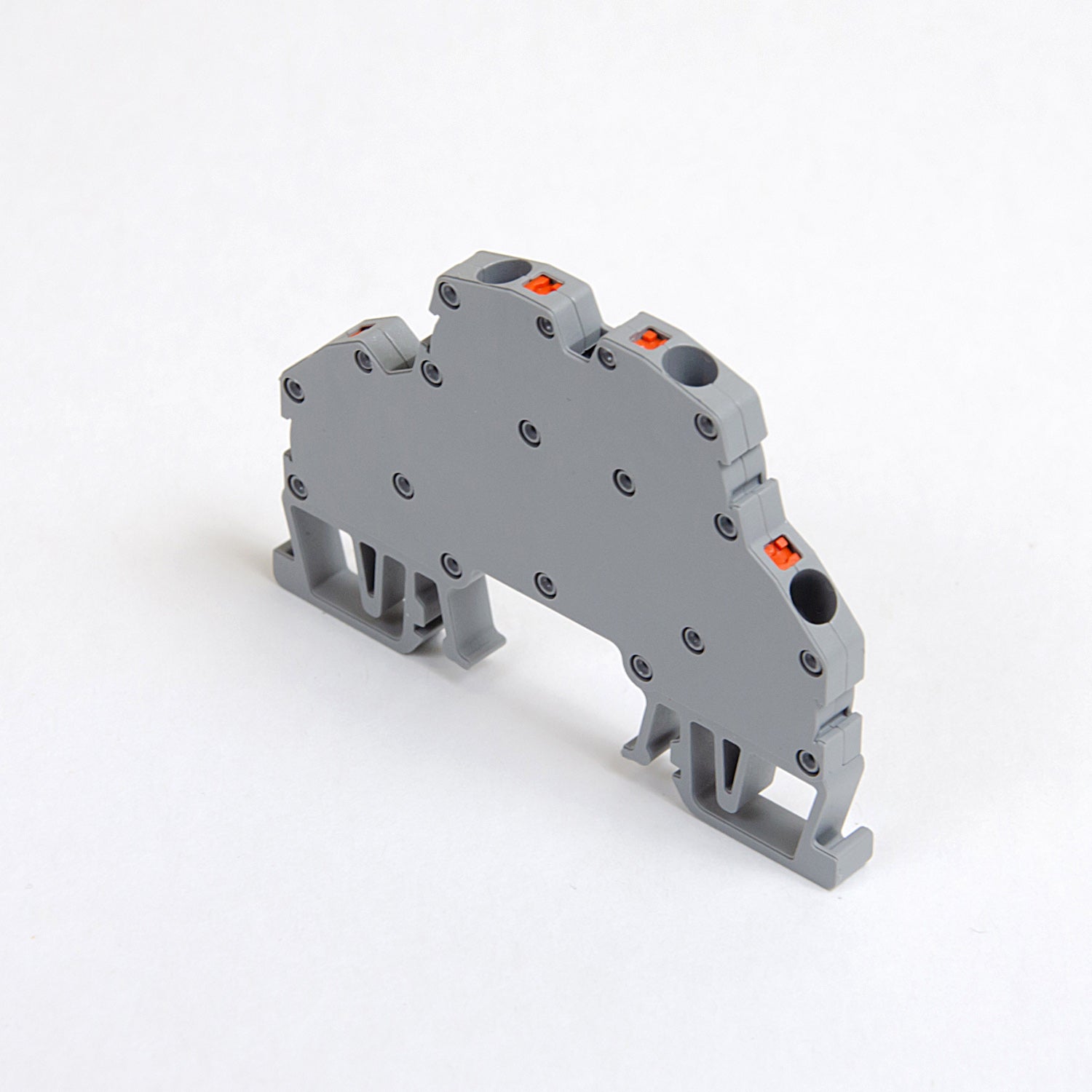

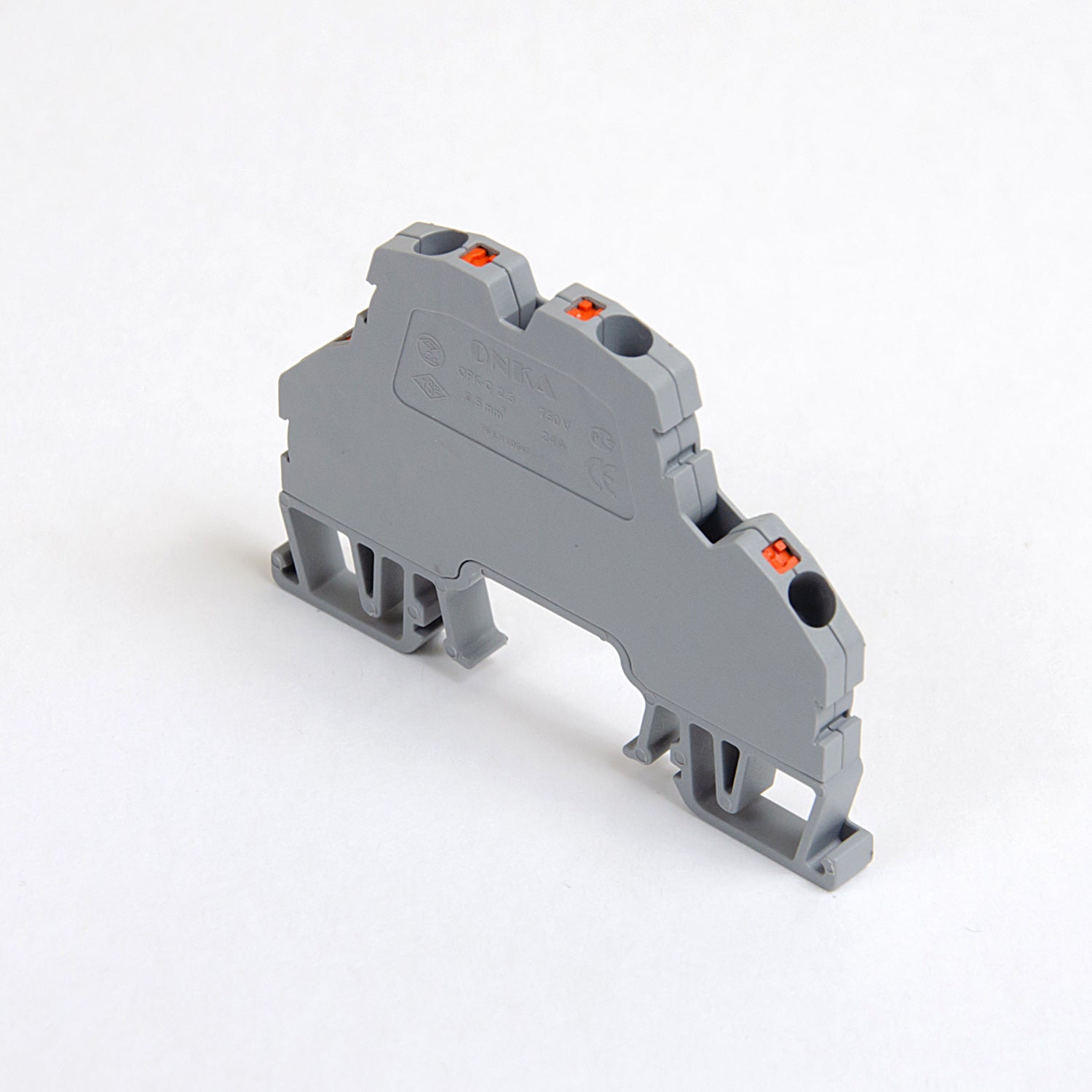

2-pair spring rail connector / DIN rail clamp 4-wire gray, ONKA, made in Turkey

The compact ONKA installation rail couplings offer great possibilities for connecting any cables with different cross-sections. The transparent housing makes it easy to check the correct arrangement of the wires. The original ONKA quick couplings provide high installation comfort and 100% connection reliability.

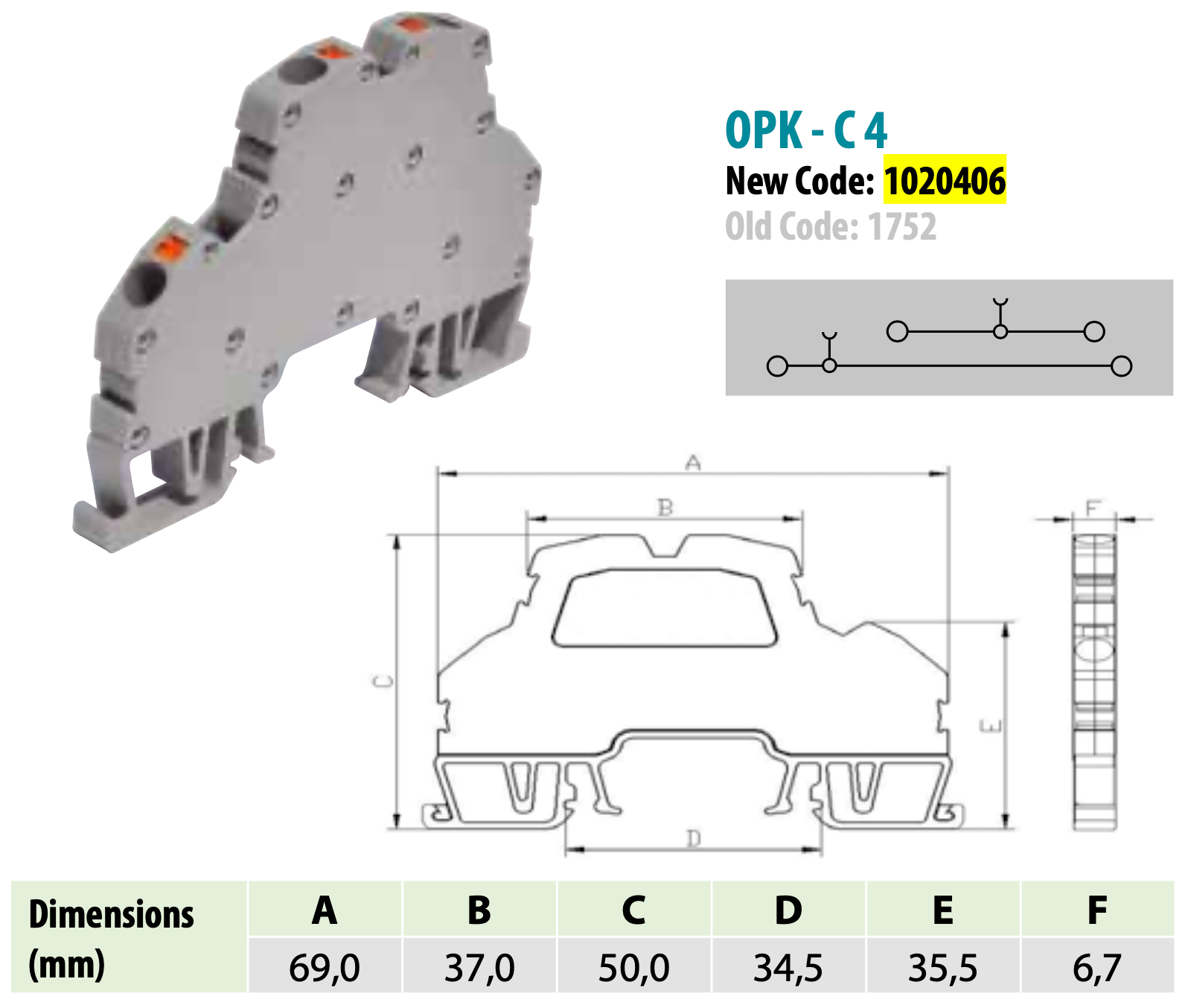

Technical parameters

Cross-section of the connected single conductor up to: 4mm2
Color: gray
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Connection position: Top / top
Cable stripping length: 9mm
Electrical connection type: Spring clamp
Rated voltage: 750V
Rated current: 32A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting type: DIN 35 mm mounting rail
Standard: EN-60947-7-1
