Multifunction time relay Time range: 0.1 s - 30 h 12V-240V AC/DC

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

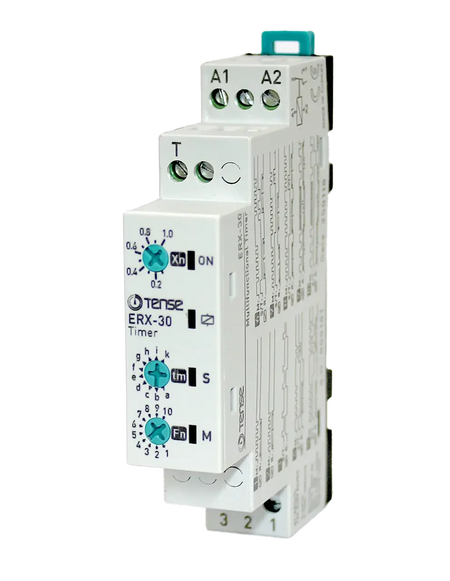

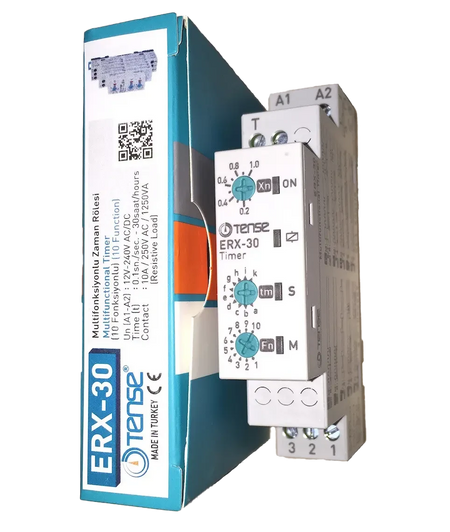

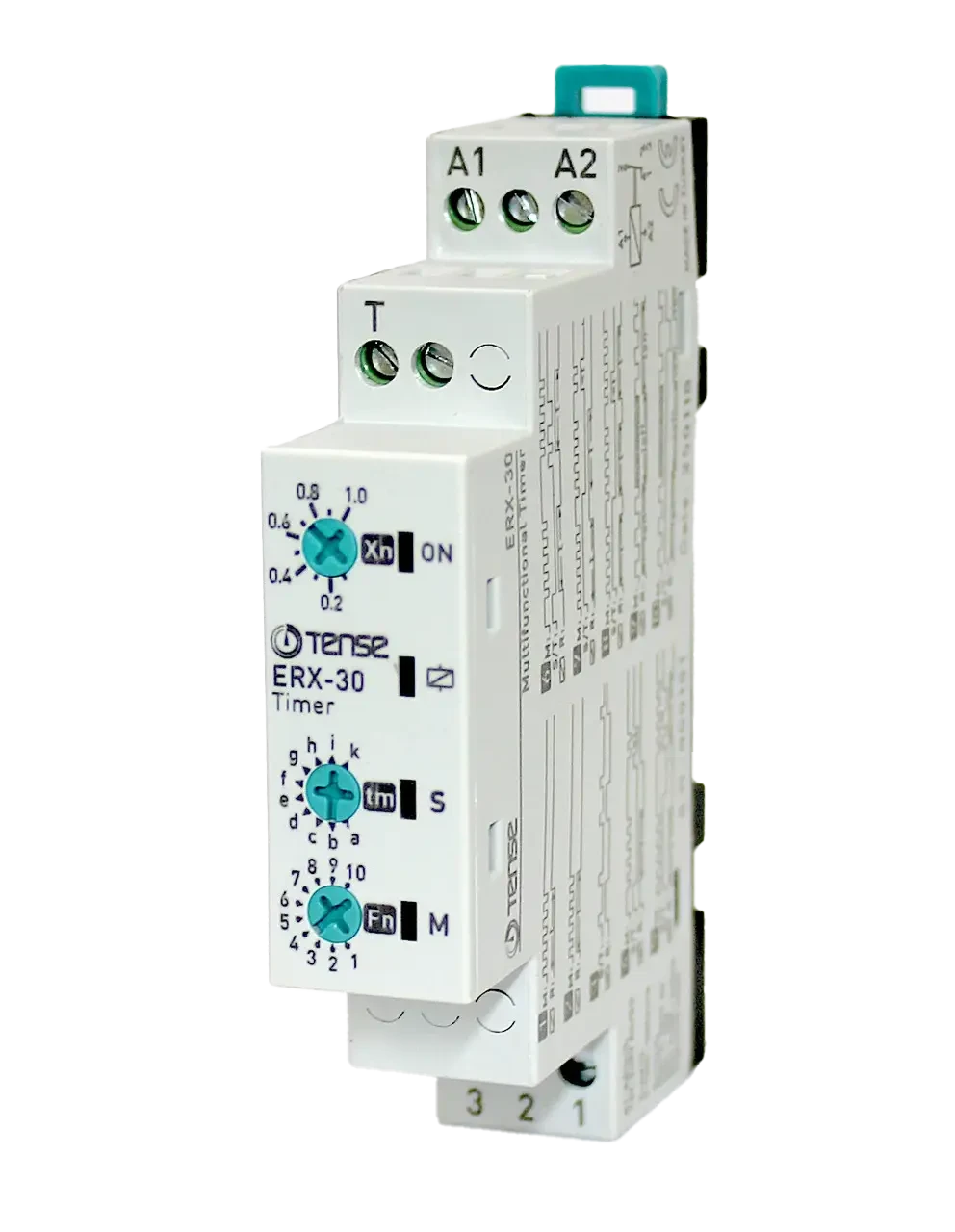

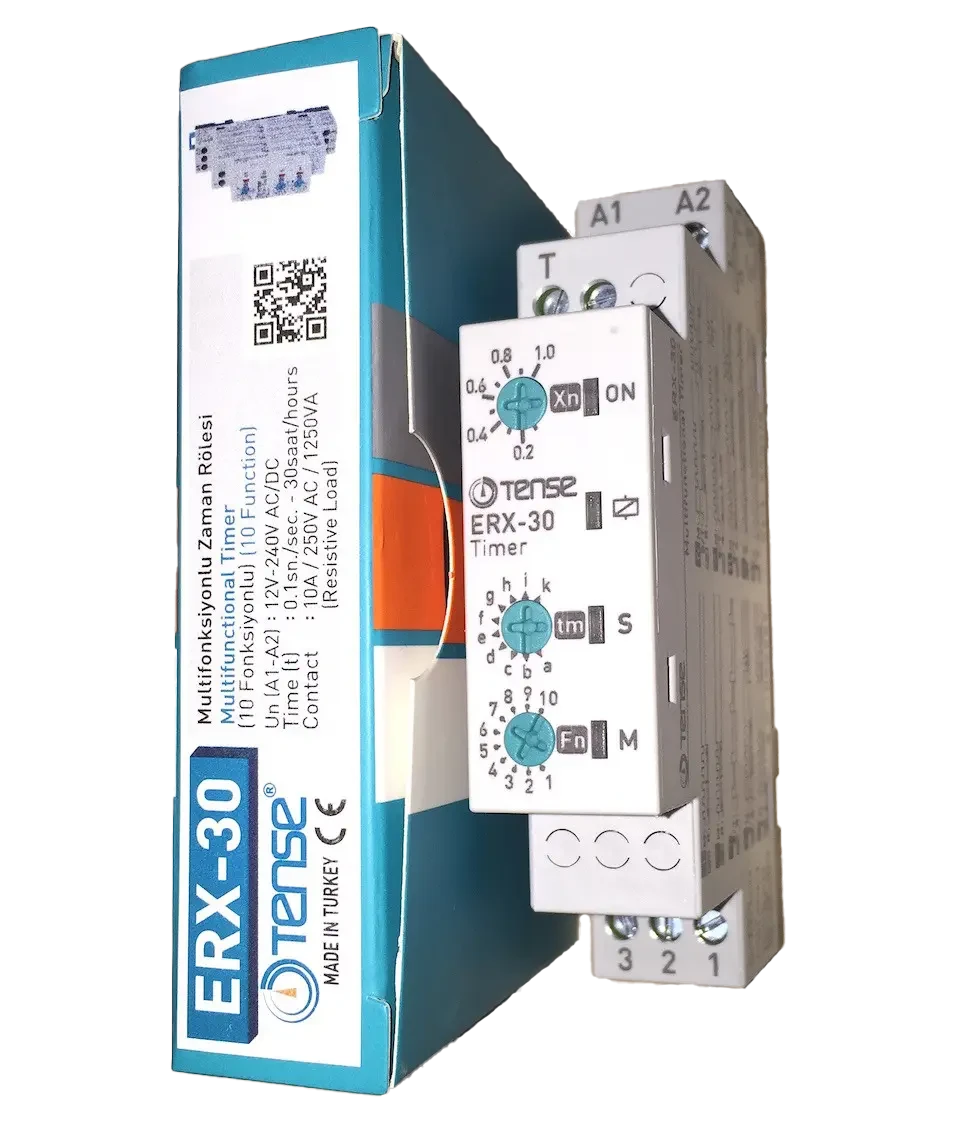

Multifunctional time relay (10 functions) 12V - 240V AC/DC with 1 switching contact.

The time relay is multifunctional and is used to control timing sequences in automation systems in production and households. This relay can be used in industrial plants—coffee or seed roasting, meat cooking, packaging/wrapping lines—as well as in homes or apartments, for example, to control a fan in the toilet or the lighting in the stairwell.

The 10 built-in time functions cover a wide range of tasks: e.g. for organizing automatic ventilation processes, opening/closing windows, periodically switching on heating or ventilation, for lighting or rotating advertising signs, in washing machines, bouncing control inputs, rotation - delay on, delay off, delay on and off at the same time, etc.

It should be noted that this time relay is also versatile in terms of power - it can work with AC and DC current in the range of 12 to 240 volts!

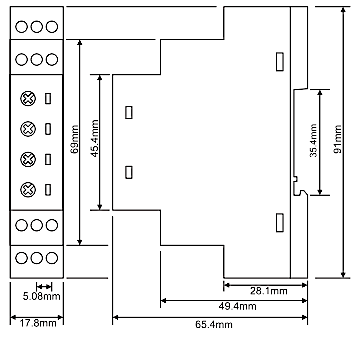

The time relay is mounted on a standard 35mm DIN rail

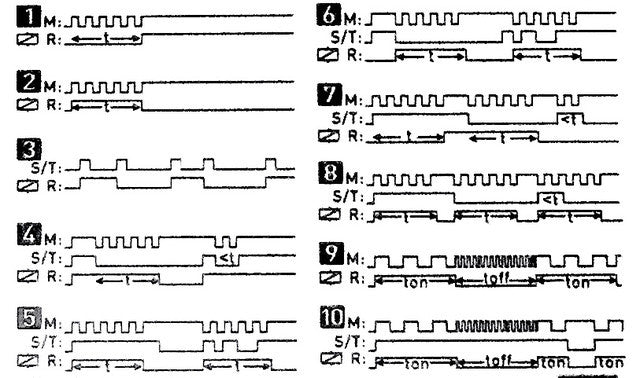

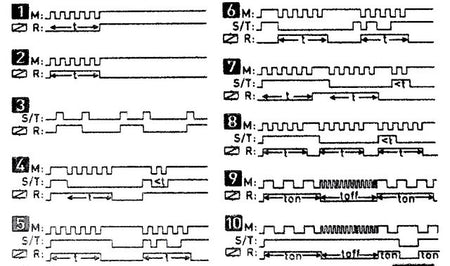

• Bistable relay 12v 24V 48v 110v 230 AC DC
• Start delay 12v 24V 48v 110v 230 AC DC
• Delayed return 12v 24V 48v 110v 230 AC DC
• Gap start indicator 12v 24V 48v 110v 230 AC DC
• Delayed start after switching and delayed 12v 24v 48v 110v 230 AC DC
• Gap start turn signal 12v 24V 48v 110v 230 AC DC
• Delayed start after switching on and delayed return after switching off the control contact (ON/OFF DELAY) 12v 24V 48v 110v 230 AC DC
• Pulse generator 12v 24V 48v 110v 230 AC DC
• SINGLE SHOT falling edge 12v 24V 48v 110v 230 AC DC
• Delayed return to SINGLE SHOT 12v 24V 48v 110v 230 AC DC

The ERX-30 universal time relay easily replaces the more expensive analog devices on the market - E1ZM10, MUR3, MXR1, IZT, E1ZMQ10, MFZ12-230V, ZR-67-BAT, CRM-91H, PCU-511, PCU-520, RF-520, 810.230.00001, 83.02.0.240, PCA-511, RF-511, REV-201, REV-120, CT-MHD, THC-M1, PCU-501, PCU-530, PCM-10, 600XU-A-1-CU, BMR TRF10, CRM-91H /UNI, MCR-MB-003, MCR-MA-003
