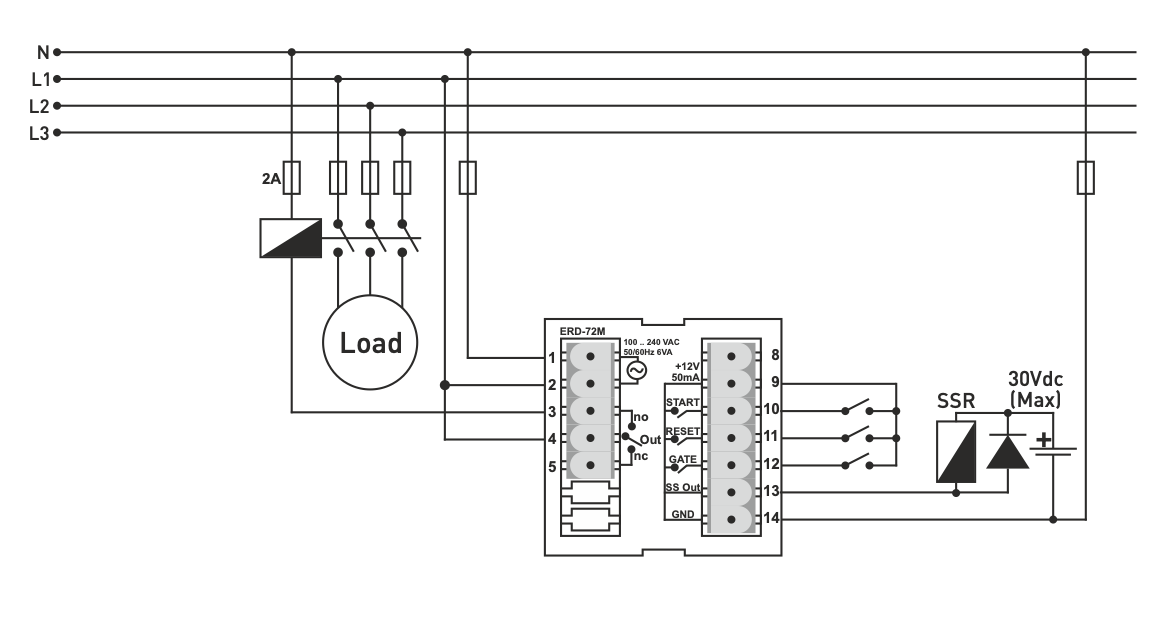

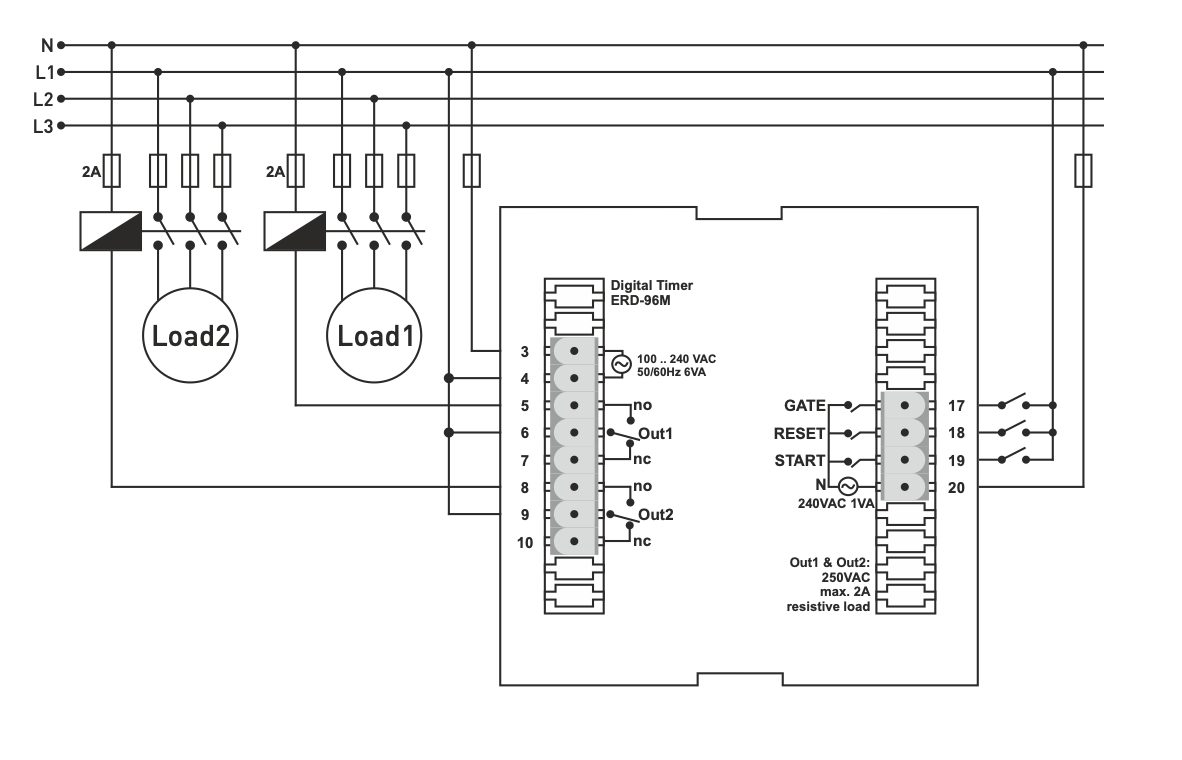

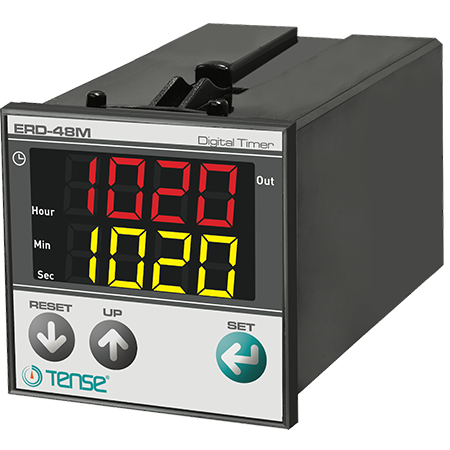

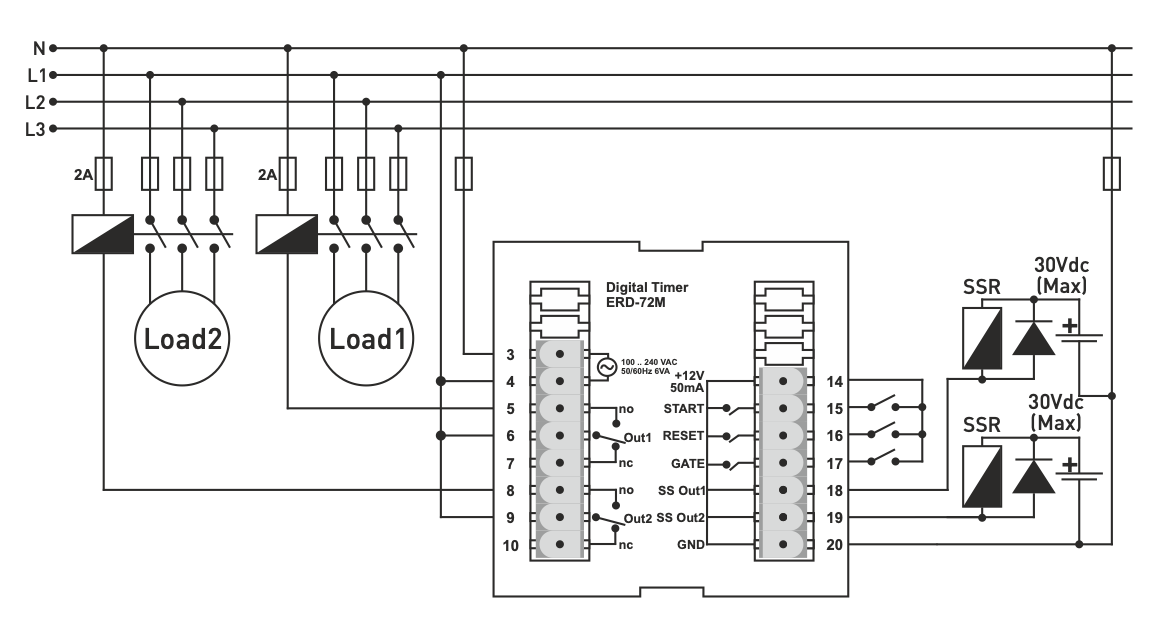

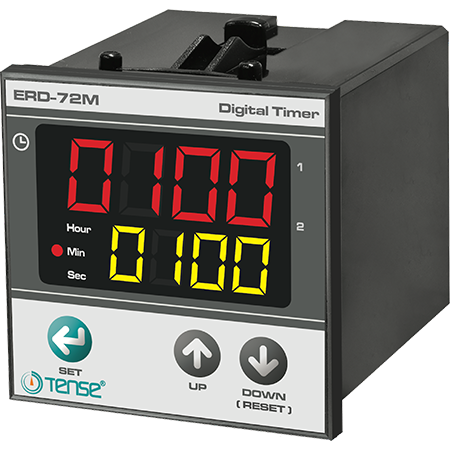

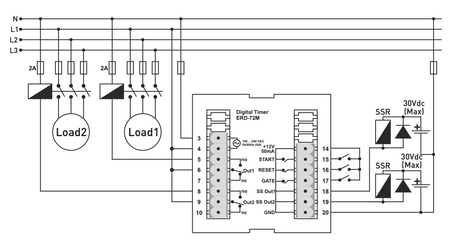

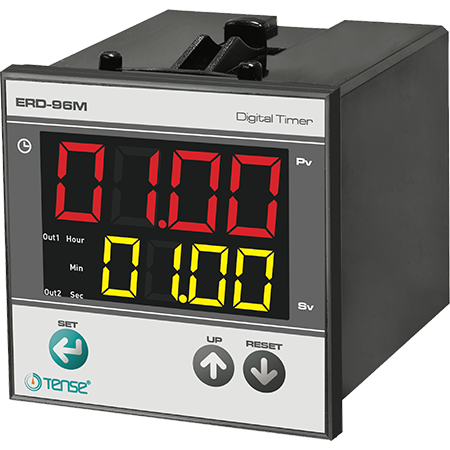

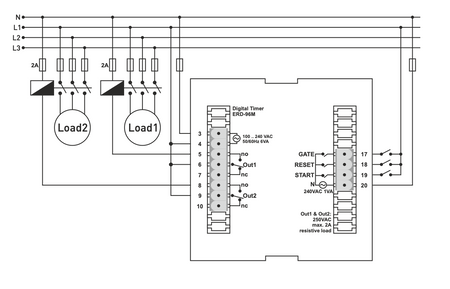

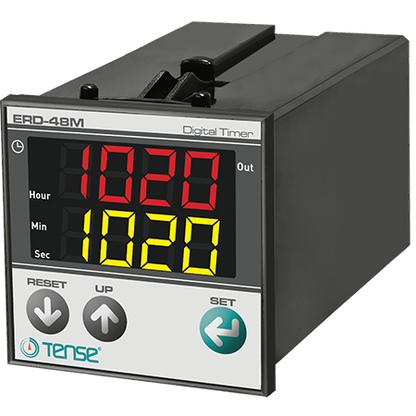

Multifunctional time relay with 2x4 LED indicators for panel/door mounting. TIME ERD-96M, ERD-48M, ERD-72M

Time relay with eight functions:

Mode 0: Pulsed delay, OFF with RESET

Mode 1: Flashing with START/RESET

Mode 2: One Shot after ON and OFF

Mode 3: Off Delay

Mode 4: Follow & ON Delay

Mode 5: Delayed One Shot after OFF

Mode 6: Chronometer - Counting with START

Mode 7: Chronometer - Count with START, Reset with RESET

Time setting range:

99:59 hours / 99:59 minutes / 599.9 seconds
