Microprocessor PID temperature controller with timer for panel mounting 1750°C

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

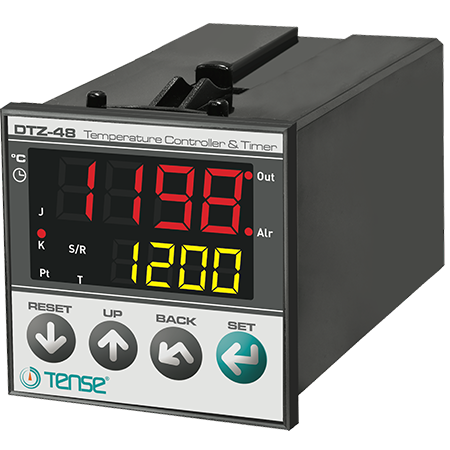

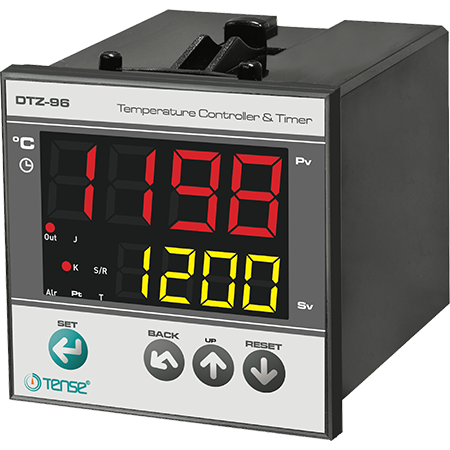

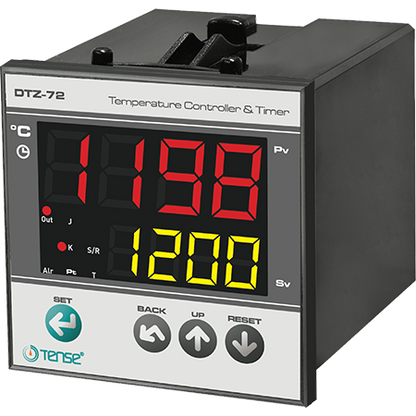

PID temperature controller for panel mounting with built-in timer, measurement range -100°C ... +1750°C, resolution / step size 0.1ºC (made in Turkey, TENSE)

Control and monitoring of thermal processes in heating, air conditioning, and ventilation systems, building automation, industrial plants.

The temperature controller is implemented through On/Off or PID control. The controller offers self-optimization that prevents process values from being overshot.

• Automatic adjustment of PID parameters

• Sensor type: T/C (J,K,T,S,R), Pt100
• Selectable control type: P, PI, PD, PID or ON-OFF

• Automatic elimination of 'overshooting' in PID mode

• Anti-Windup

• Switch-on delay for OUT in cooling operation

• Password protection

• EEPROM memory for storing settings

• Relay outputs OUT and ALARM (NO+NC) 250VAC, 2A (ALARM ON only for DTZ-48)

The measurement range is sensor-dependent and can be set using the buttons on the temperature controller.

The display of the temperature controller is a high-contrast display that is easy to read even in poor lighting conditions. In addition to the control output, the temperature controller also has an alarm relay that closes the potential-free contact in case of exceeding or falling below the value.

Please do not forget to order our temperature sensors - Thermocouple Type J Fe-Const (metric 6/8) with temperature measurement range: -100 °C - +600 °C. Available with 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m, and 5 m long cable.
