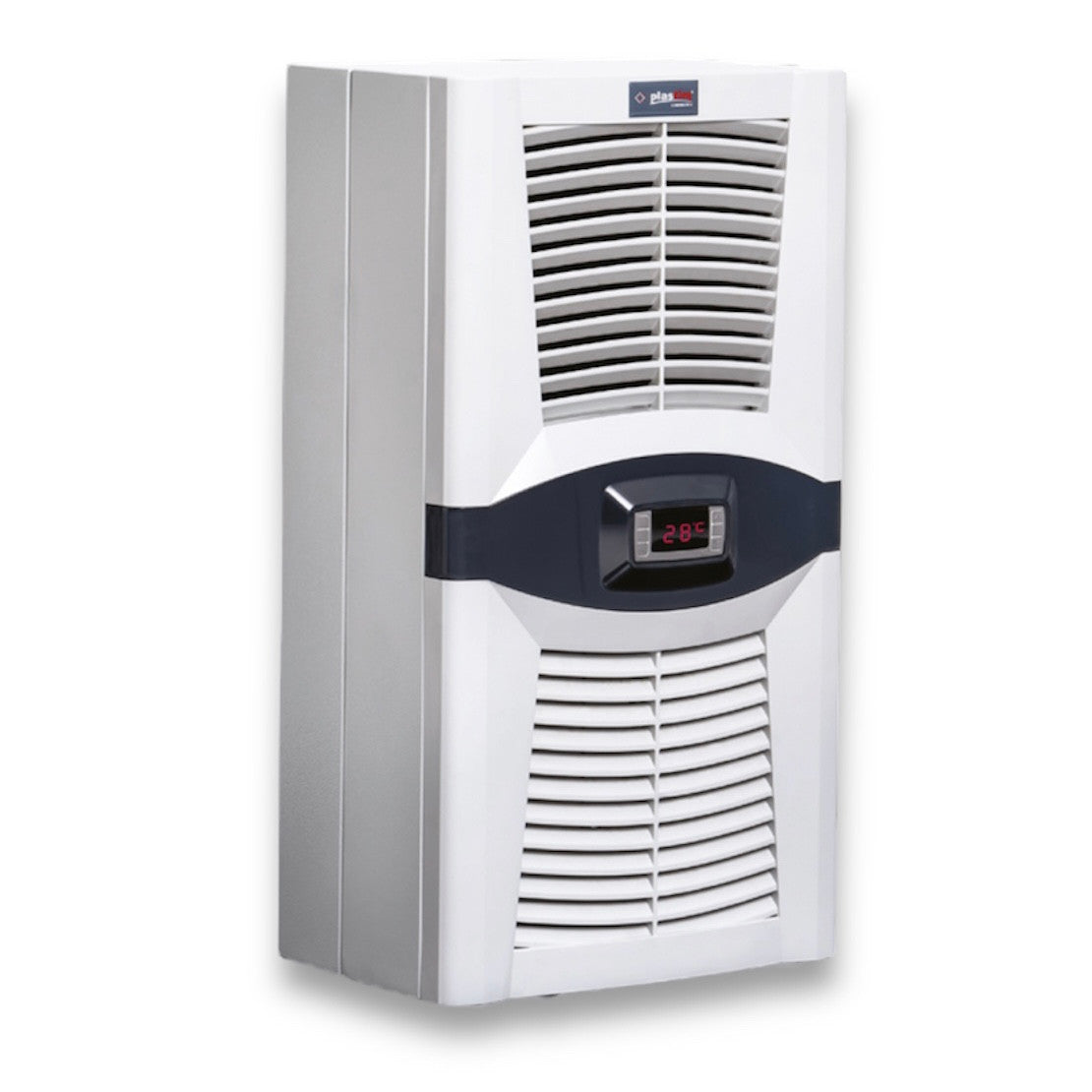

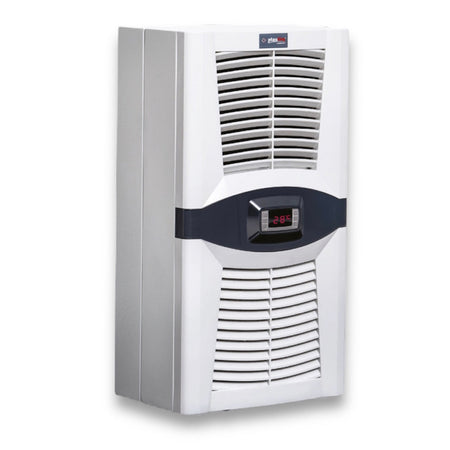

"Design Series" panel air conditioner / cooler 550 Watt / 1900 BTU for control panels and automation panels for side or wall mounting.
The PAD0550.01 (PLASTIM) panel air conditioner features HIGHLY's state-of-the-art open rotary compressor, a Dixell thermostat, a condensate evaporator, and a limit switch to control the panel door opening.
Everything needed to install the air conditioner in the control cabinet is included in the delivery - gaskets, drain pipe, mounting screws, power connection.
TECHNICAL DATA | PAD0550.01 |
Soğutma Kapasitesi L35 / L35 | 550W / 1900BTU |
Operating voltage | 230VAC |
frequency | 50/60 Hz |
Starting current | 1.2A |
Operating current | 1.1A |
Backup | 6A |
Power consumption | 330W |
Operational area | 0-55 ° |
Thermostat factory setting | 35° |
Different | 4° |
Max. air volume internal circuit | 340 m³/h |
Max. air volume external circuit | 505 m³/h |
Type of refrigerant | R134a |
Amount of refrigerant | 245g |

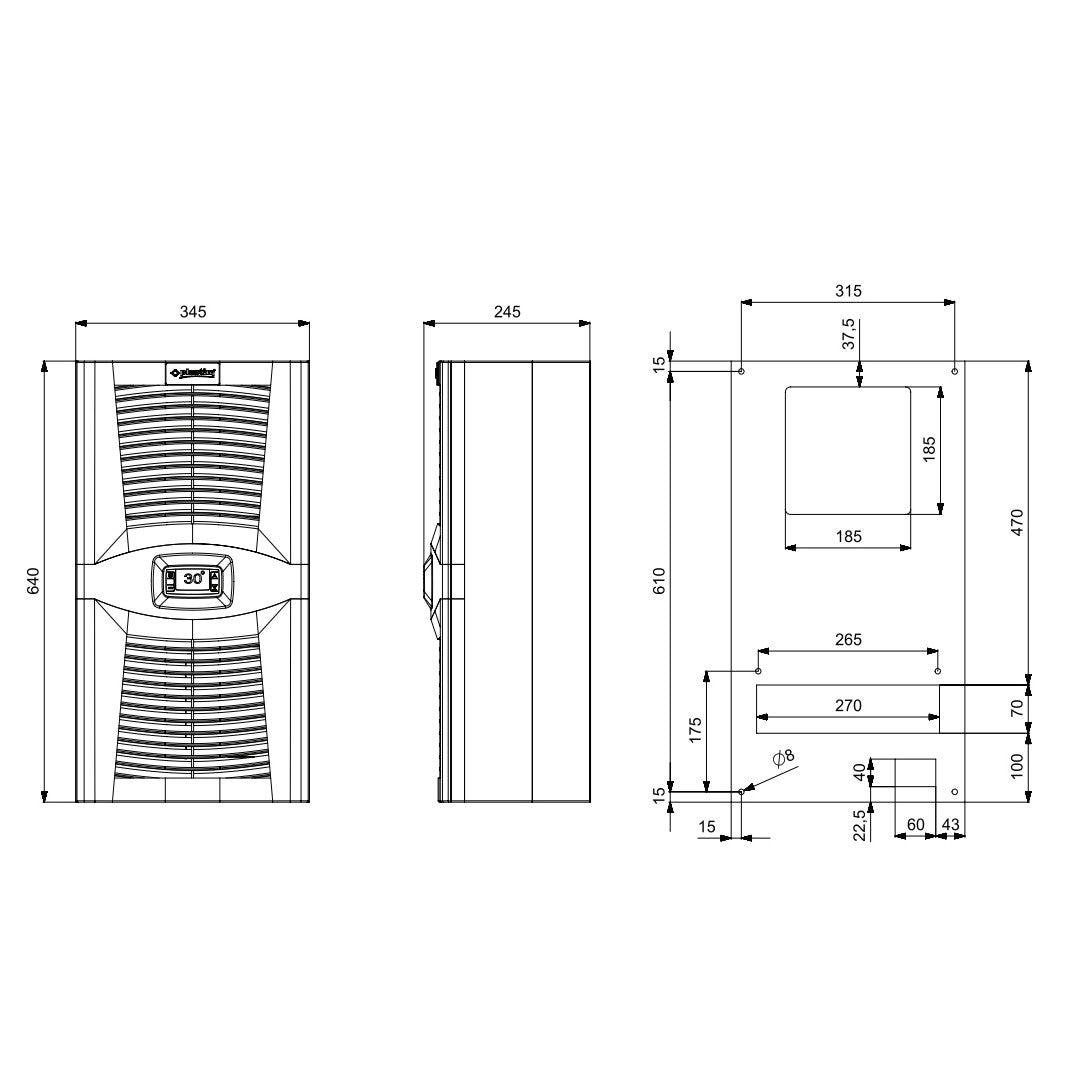

Dimensions | 640x345x223mm |
Weight | 27kg |
Sound level | 76dB |
Degree of protection (internal circuit) | IP54 |
Protection class (external circuit) | IP34 |
Color | RAL7035 |
compressor | HIGHLY/HITACHI |
Compressor type | Rotating |
fans | EBMPAPST |
Mounting type | Wall mounting |
