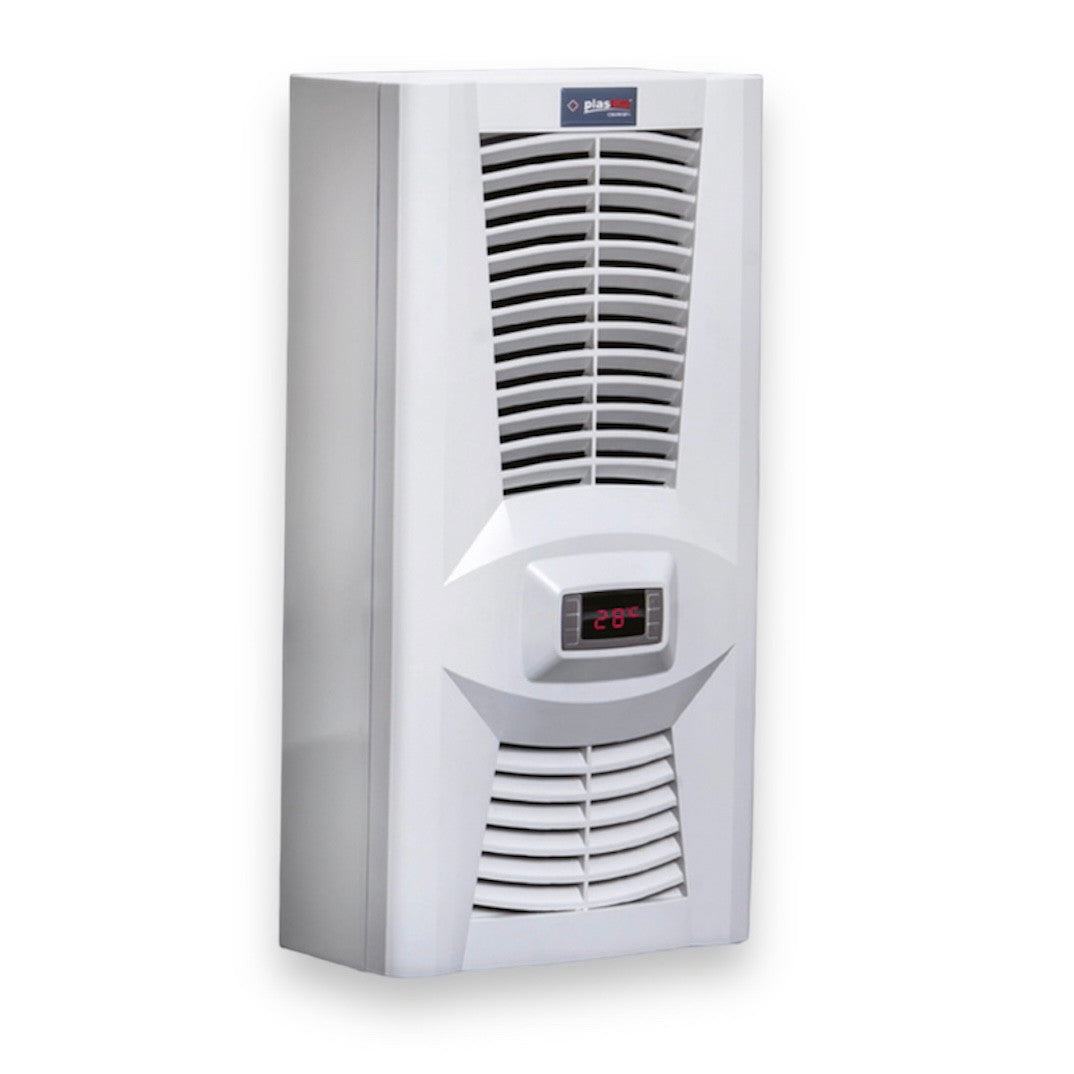

Air conditioning for control panels / cooler 380W, PAD0380.01, Plastim
Failed to load pickup availability
"Design Series" air conditioner for control cabinets / cooler 380 watts / 1300 BTU for control cabinets and automation cabinets for side or wall mounting.
The PAD0380.01 (PLASTIM) panel air conditioner features HIGHLY's state-of-the-art open rotary compressor, a Dixell thermostat, a condensate evaporator, and a limit switch to control the panel door opening.
Everything needed to install the air conditioner in the control cabinet is included in the delivery - gaskets, drain pipe, mounting screws, power connection.
| TECHNICAL DATA | PAD0380.01 |
| Cooling capacity L35 / L35 | 380W / 1300BTU |
| Operating voltage | 230VAC |
| frequency | 50/60 Hz |
| Starting current | 3.7A |
| Operating current | 1.1A |
| Backup | 5A |
| Power consumption | 325W |
| Operating area | 0-55 °C |
| Thermostat factory setting | 35 °C |
| deviation | 4 °C |
| Max. air volume internal circuit | 340 m³/h |
| Max. air volume external circuit | 340 m³/h |
| Type of refrigerant | R134a |
| Amount of refrigerant | 120g |
| Dimensions | 560x285x150mm |
| Weight | 15kg |
| Sound level | 75dB |
| Degree of protection (internal circuit) | IP54 |
| Protection class (external circuit) | IP34 |
| Color | RAL7035 |
| compressor | HIGHLY/HITACHI |
| Compressor type | Rotating |
| fans | EBMPAPST |
| Mounting type | Wall mounting |
