Air conditioning for control panels / cooler 1100W, PAD1100.01, Plastim

Only 3 left
SKU: PAD1100.01
Common price €1.404,00 VAT included.

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

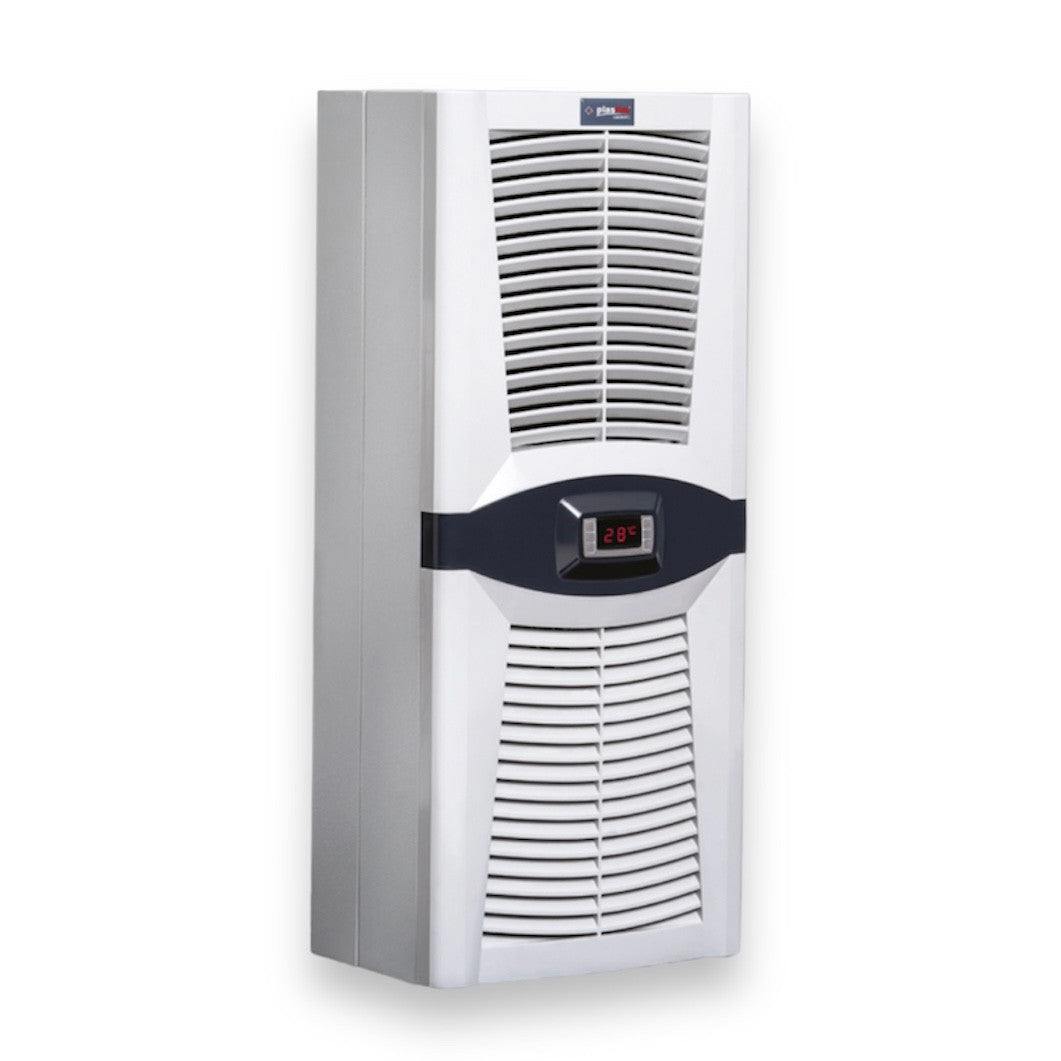

"Design Series" panel air conditioner/chiller 1100 Watt / 3800 BTU for control panels and automation boards for side or wall mounting.

The PAD1100.01 (PLASTIM) air conditioner for control cabinets is equipped with a modern HIGHLY open rotary compressor, a Dixell thermostat, a condensate evaporator and a limit switch for controlling the opening of the control cabinet door.

Everything needed to install the air conditioner in the control cabinet is included in the delivery - gaskets, drain pipe, mounting screws, power connection.

TECHNICAL DATA PAD1100.01
Cooling capacity L35 / L35 1100W / 3800BTU
Operating voltage 230VAC
frequency 50/60 Hz
Starting current 7.2A
Operating current 2.5A
Backup 10A
Power consumption 575W
Operating area 0-55 °C
Thermostat factory setting 35 °C
deviation 4 °C
Max. air volume internal circuit 340 m³/h
Max. air volume external circuit 590 m³/h
Type of refrigerant R134a
Amount of refrigerant 310g

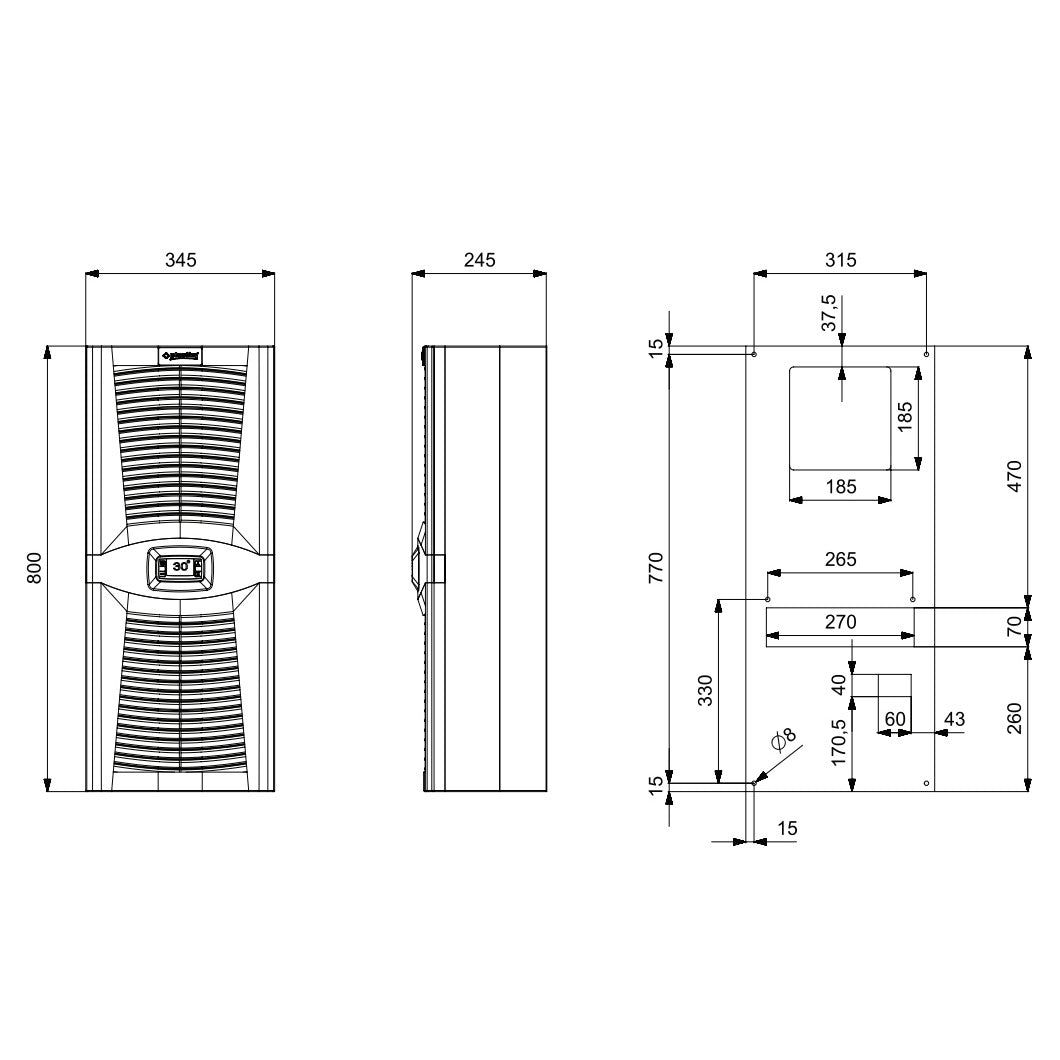

Dimensions 800x345x223mm
Weight 32kg
Sound level 76dB
Degree of protection (internal circuit) IP54
Protection class (external circuit) IP34
Color RAL7035
compressor HIGHLY/HITACHI
Compressor type Rotating
fans EBMPAPST
Mounting type Wall mounting
