Air conditioning for control cabinets / cooler 850W, PAD0850.01, Plastim

In stock - 9 items available
SKU: PAD0850.01
Common price €1.350,00 VAT included.

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

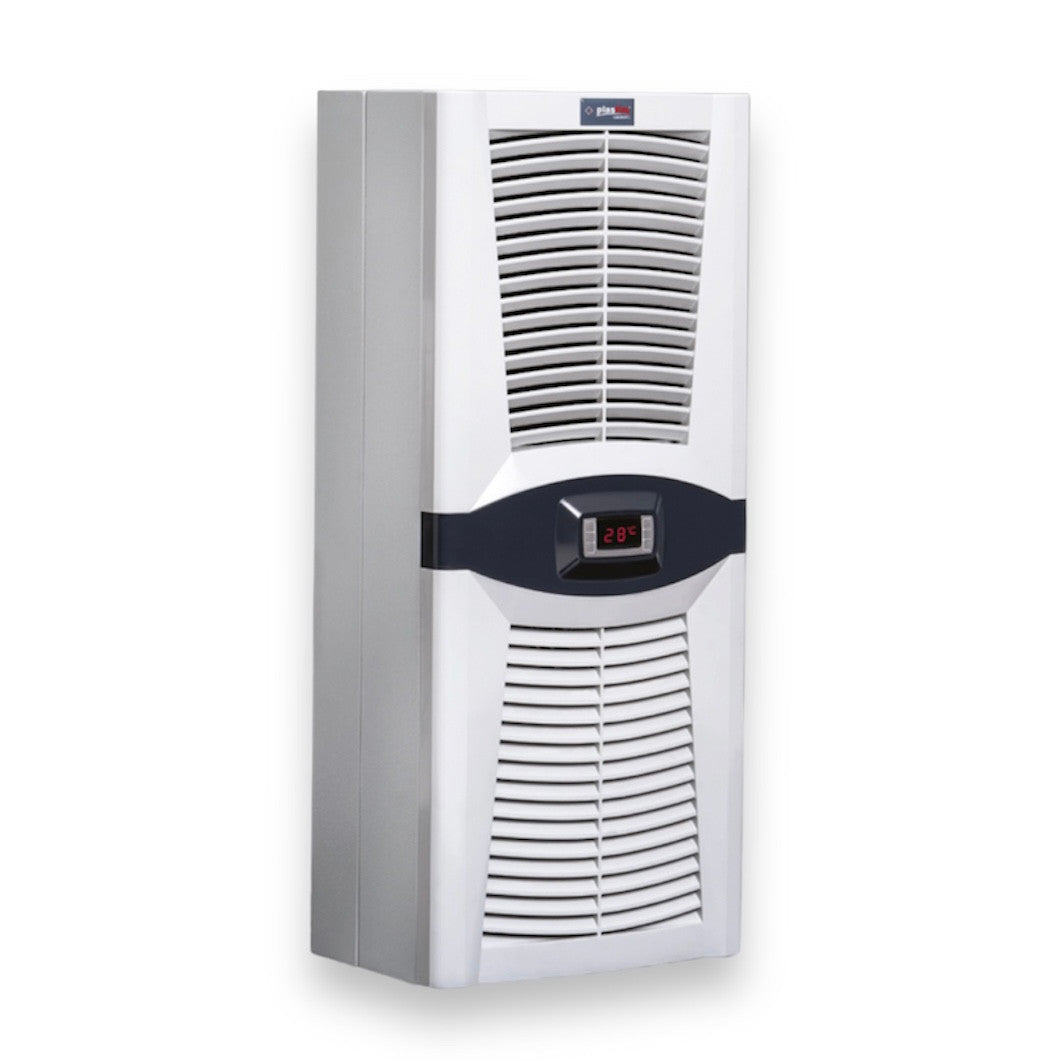

"Design Series" air conditioner for control cabinets / cooler 850 Watt / 2990 BTU for control cabinets and automation cabinets for side or wall mounting.

The PAD08500.01 (PLASTIM) panel air conditioner is equipped with a modern HIGHLY open rotary compressor, a Dixell thermostat, a condensate evaporator and a limit switch to control the opening of the panel door.

Everything needed to install the cabinet air conditioner is included in the delivery - gaskets, drain pipe, mounting screws, power connection.

TECHNICAL DATA PAD0850.01
Cooling capacity L35 / L35 850W / 2900BTU
Operating voltage 230VAC
frequency 50/60 Hz
Starting current 6A
Operating current 1.7A
Backup 10A
Power consumption 394W
Operating area 0-55 °C
Thermostat factory setting 35 °C
deviation 4 °C
Max. air volume internal circuit 340 m³/h
Max. air volume external circuit 505 m³/h
Type of refrigerant R134a
Amount of refrigerant 290g
Dimensions 800x345x223mm
Weight 30kg
Sound level 76dB
Degree of protection (internal circuit) IP54
Protection class (external circuit) IP34
Color RAL7035
compressor HIGHLY/HITACHI
Compressor type Rotating
fans EBMPAPST
Mounting type Wall mounting
