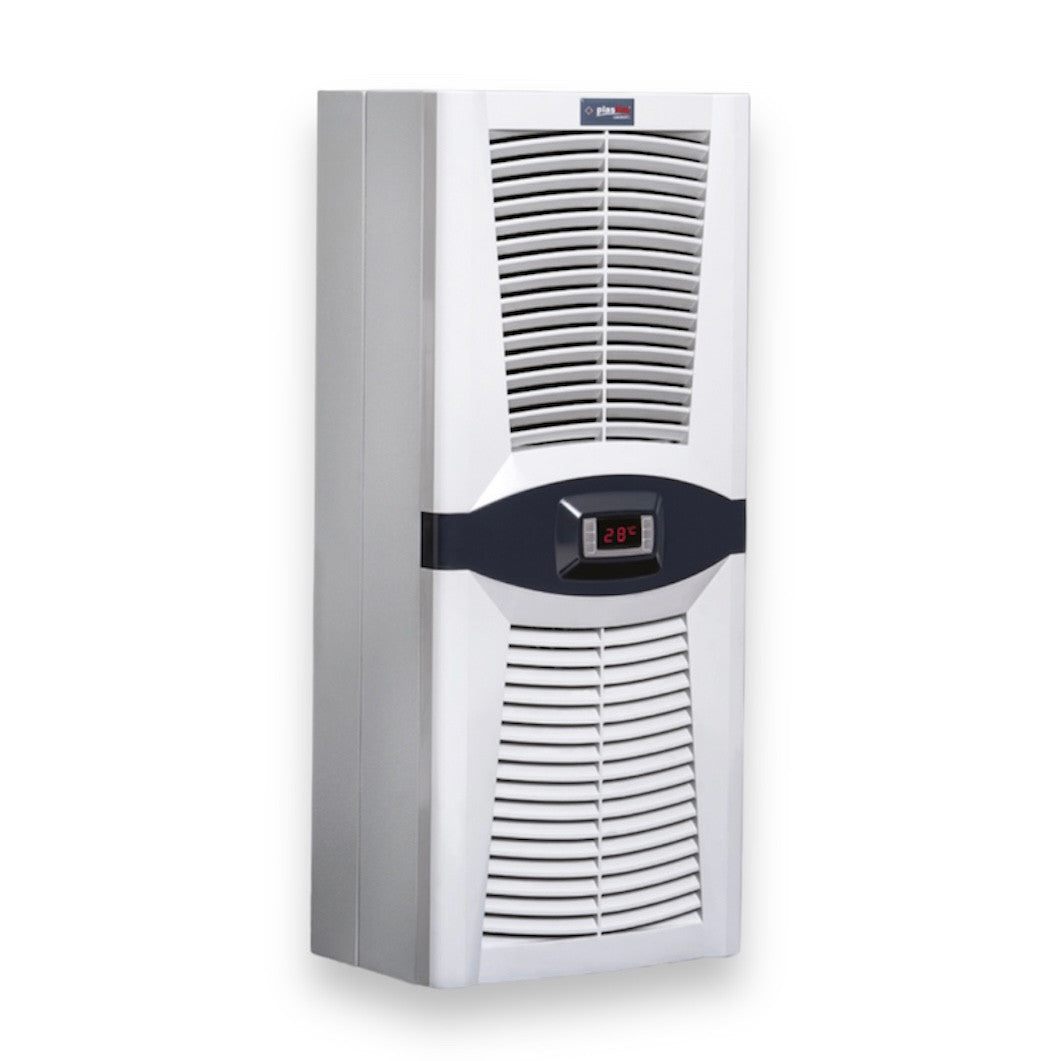

1600 Watt Control Panel Air Conditioner / Cooler (Design Series) for control panels and automation boards for side or wall mounting.
The PAD1600.01 (PLASTIM) cabinet air conditioner is equipped with HIGHLY's state-of-the-art open rotary compressor, a Dixell thermostat, a condensate evaporator, and a limit switch to control the cabinet door opening.
Everything needed for installing the control cabinet air conditioner is included in the delivery - gaskets, drain pipe, mounting screws, power connection.
TECHNICAL DATA |
PAD1600.01 |
Cooling capacity L35 / L35 |
1600W / 5500BTU |
Operating voltage |
230VAC |
frequency |
50/60 Hz |
Starting current |
8A |
Operating current |
3.2A |
Backup |
10A |
Power consumption |
725W |
Operating area |
0-55 °C |
Thermostat factory setting |
35 °C |
deviation |
4 °C |
Max. air volume internal circuit |
510 m³/h |
Max. air volume external circuit |
510 m³/h |
Type of refrigerant |
R134a |
Amount of refrigerant |
600g |
Dimensions |
980x430x270mm |
Weight |
45kg |
Sound level |
79dB |
Degree of protection (internal circuit) |
IP54 |
Protection class (external circuit) |
IP34 |
Color |
RAL7035 |
compressor |
HIGHLY/HITACHI |
Compressor type |
Rotating |
fans |
EBMPAPST |
Mounting type |
Wall mounting |
