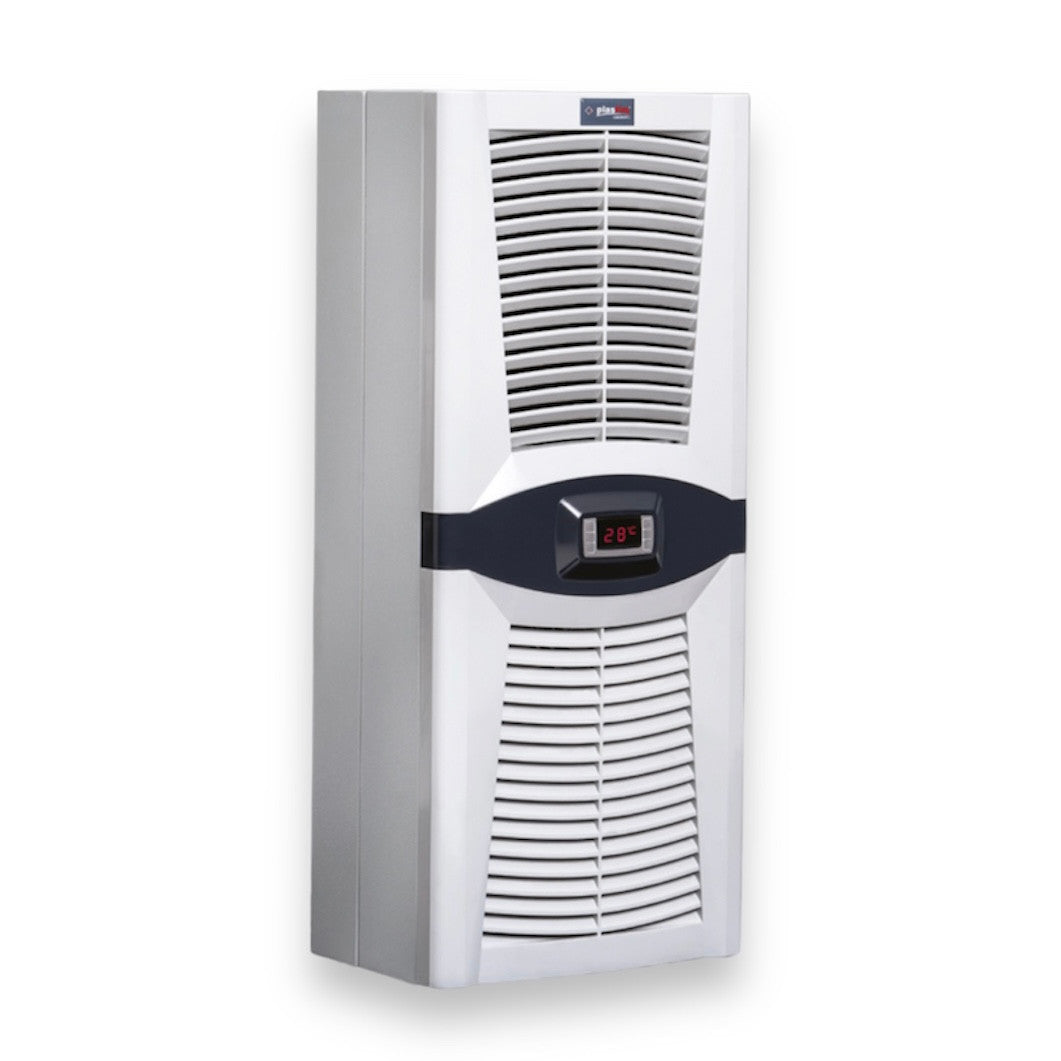

Air conditioner for control panels / Cooler 2100W, PAD2100.01, Plastim

Only 3 left
SKU: PAD2100.01
Common price €2.052,00 VAT included.

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

"Design Series" air conditioner for control cabinets / cooler 2500 Watt / 8550 BTU for control cabinets and automation cabinets for side or wall mounting.

The PAD2550.01 (PLASTIM) panel air conditioner is equipped with HIGHLY's state-of-the-art open rotary compressor, a Dixell thermostat, a condensate evaporator, and a limit switch for controlling the panel door opening.

Everything needed to install the air conditioner in the control cabinet is included in the delivery - gaskets, drain pipe, mounting screws, power connection.

TECHNICAL DATA

PAD2100.01

Cooling capacity L35 / L35

2100W / 7200BTU

Operating voltage

230VAC

frequency

50/60 Hz

Starting current

10A

Operating current

3.8A

Backup

16A

Power consumption

800W

Operating area

0-55 °C

Thermostat factory setting

35 °C

deviation

4 °C

Max. air volume internal circuit

510 m³/h

Max. air volume external circuit

625 m³/h

Type of refrigerant

R134a

Amount of refrigerant

700g

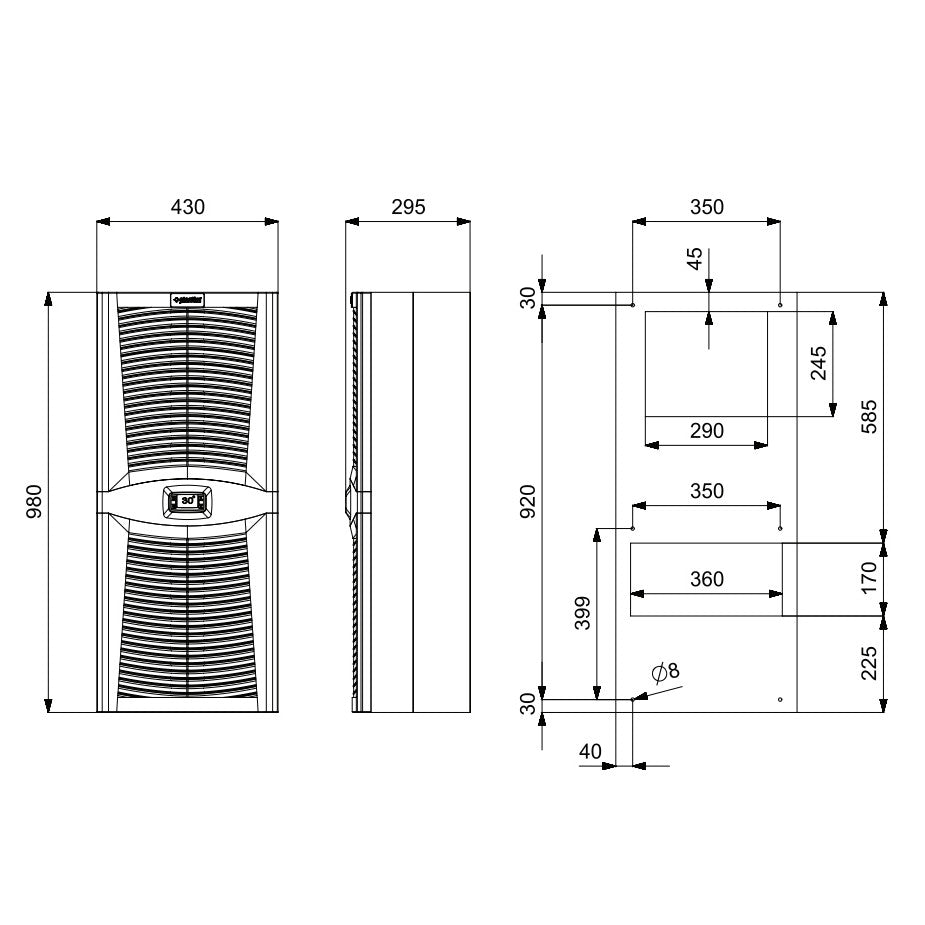

Dimensions

980x430x270mm

Weight

46kg

Sound level

80 dB

Degree of protection (internal circuit)

IP54

Protection class (external circuit)

IP34

Color

RAL7035

compressor

HIGHLY/HITACHI

Compressor type

Rotating

fans

EBMPAPST

Mounting type

Wall mounting
