MUCCO

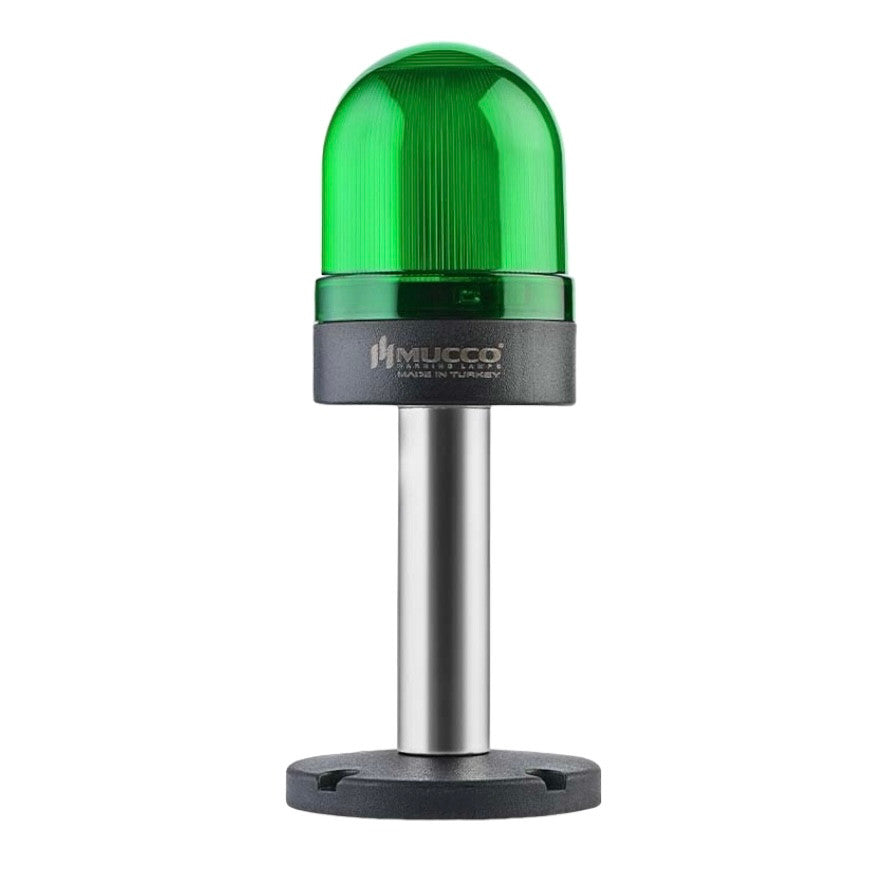

Green Signal Light Series 70 with Nut Connection

In stock - 5 items available
SKU: SNT-S715-FB-2-10T
€38,80 VAT included.
variant

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

Green Signal Light Series 70 with Nut Connection, 12-24, 40-250V AC/DC, Manufacturer MUCCO (Turkey)


70 LENS OPTIONS

LIGHT TYPE Flashing

Buzzer Options with Buzzer

EXTENSION TUBE 10 cm

TECHNICAL DATA

  • Category.
  • Current:

24V/DC (without Buzzer): 110mA ±10%

24V/DC (with Buzzer): 10% 10V/DC (with Buzzer): 150mA ±10%

40~250V AC/DC (without Buzzer): 10/10 mA: 78mA ±10% 50-60 Hz

40~250V AC/DC (with Buzzer): 60-60 Hz: 95mA ±10% 50-60 Hz

  • Housing Material: ABS (Housing) + Polycarbonate (Lens)
  • Lens Colors: Red, green, yellow, blue, white

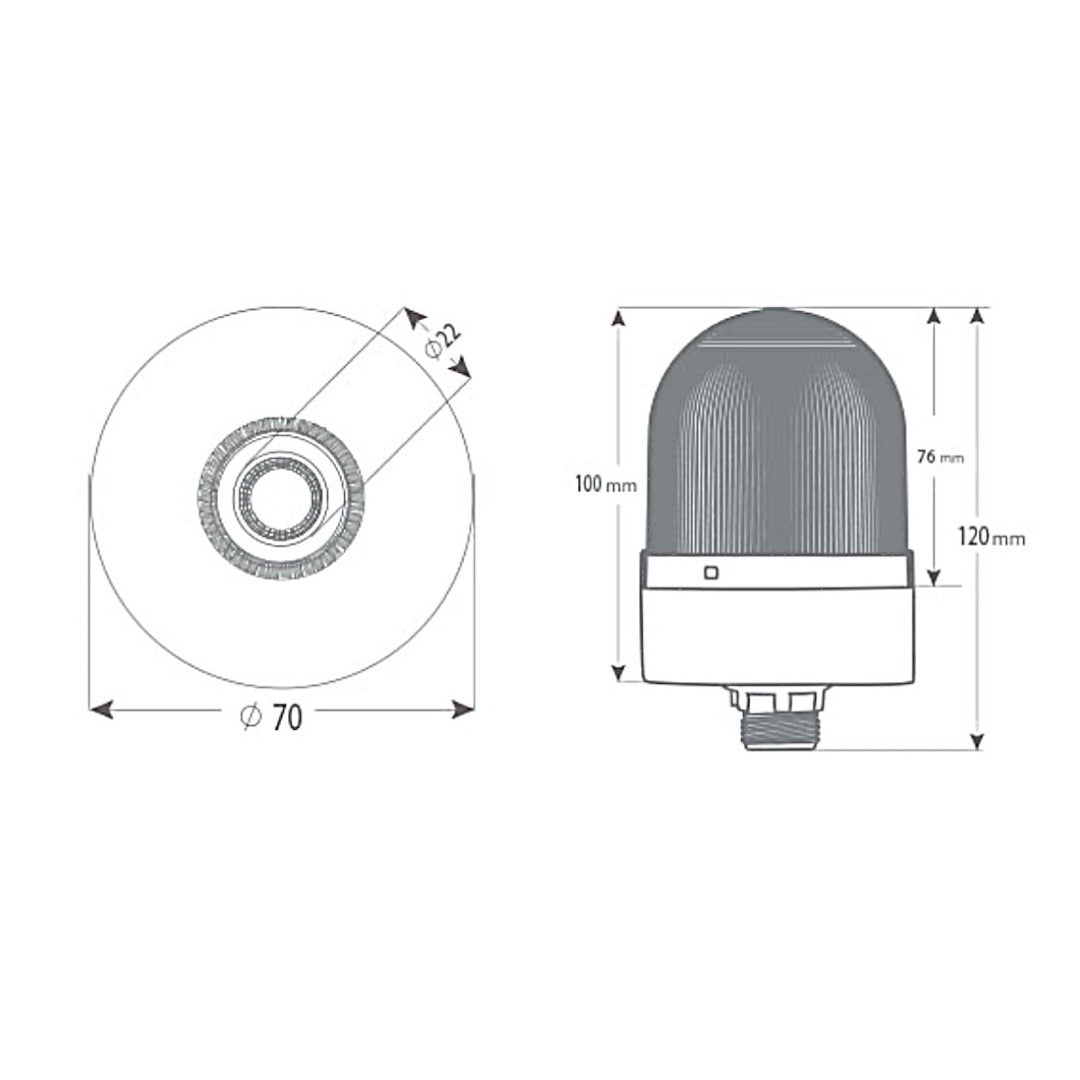

  • Lens Diameter: ø70 mm (Nut M22 - Connection)
  • Light Source: LIGHT SOURCE: SMD LED
  • Light Mode: Continuous, flashing
  • Input Reaction Time: on/off: max. 10 ms
  • Sound: (wired control): 1 tone
  • Alarm: 104~107 dB at 1 m (3.3 ft)
  • Connection: Wired Connection:
  • Surface Mounting, Wall Mounting Type.
  • Operating Conditions: -20°C to +50°C (-4°F to +122°F)
  • Lifetime: Duration: min. 50,000 hours
  • Protection Class: IP65
  • Protection: Water, dust, heat, and UV resistance
  • Quality Certificates and Documents: ISO-9001, CE, RoHS2 and EAC
