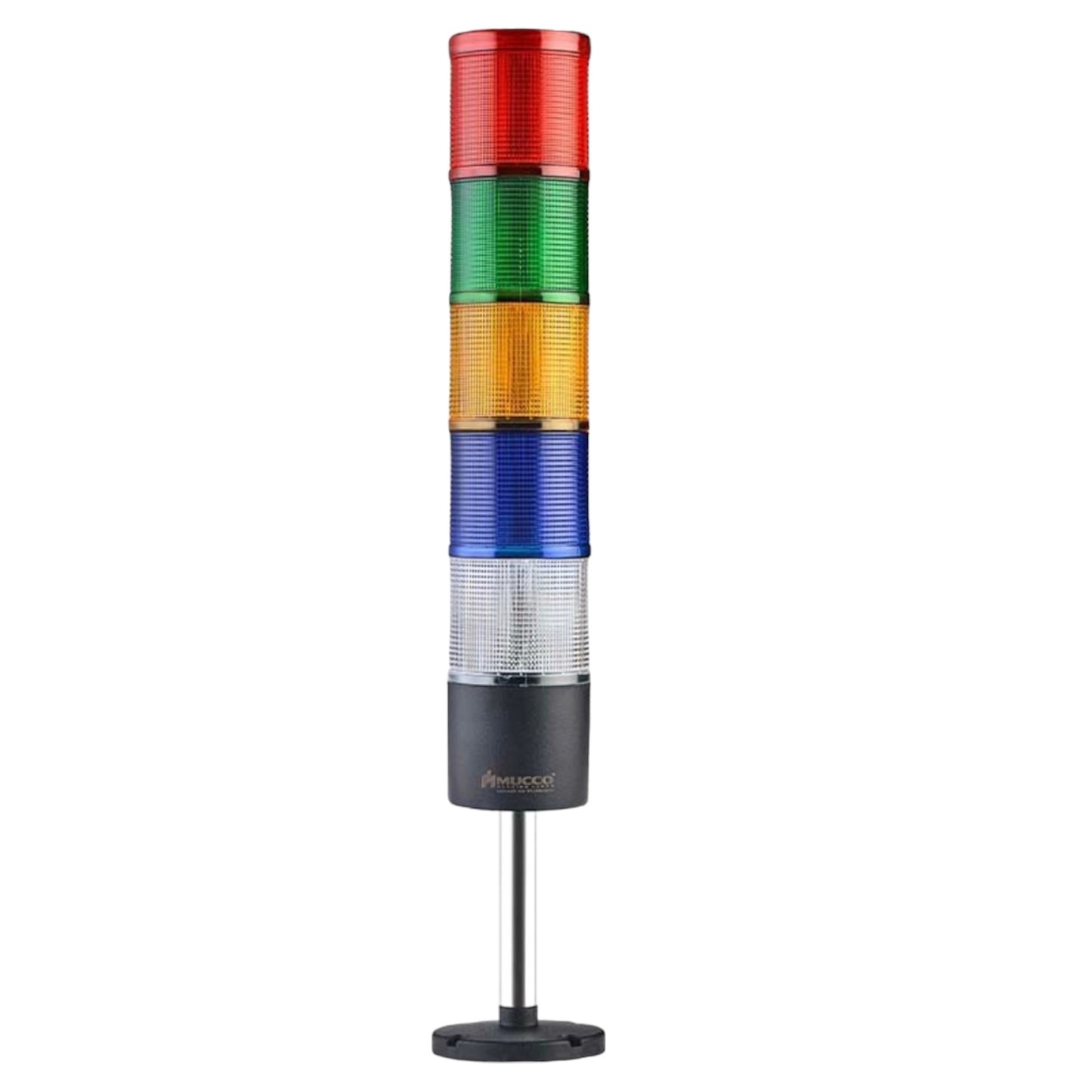

Five-story signal column with surface mounting and 10cm pipe
Failed to load pickup availability
Five-story signal tower with mounting assembly and 10cm pipe, 12-24, 40-250V AC/DC, SNT-7013 / SNT-7022, manufacturer MUCCO (Turkey)
Buzzer options No
Type of light Flashing
TECHNICAL DATA
- Category.
- Current:
12~24V AC/DC: 174mA ±10%
40~250V AC/DC: 35mA ±10% 50-60 Hz
- Housing material: Material: ABS (housing) + Polycarbonate (lens)
- Lens colors: (customizable colors): Red, Green, Yellow, Blue, White (customizable colors)

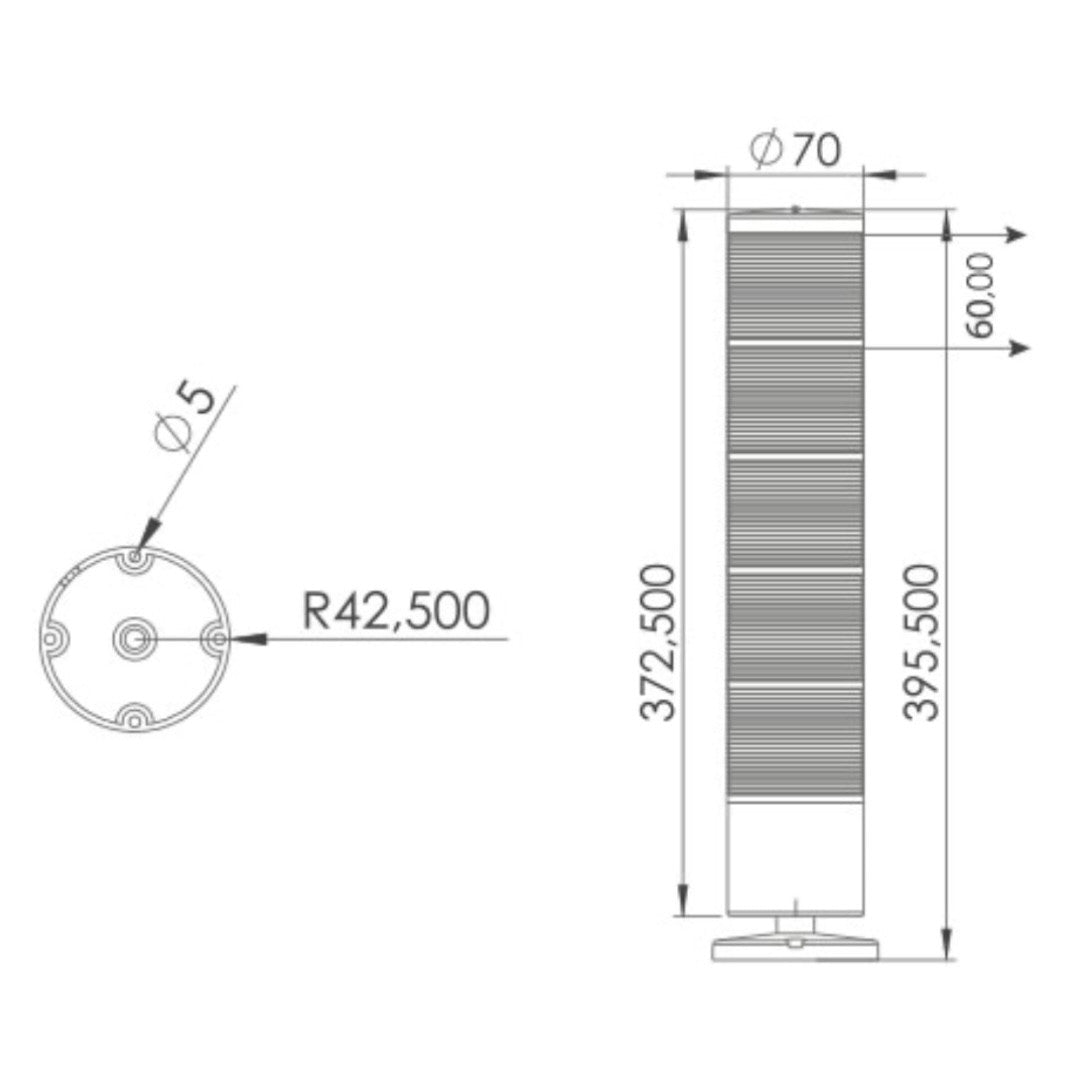

- Diameter of lens: ø70 mm
- Light source: LIGHT SOURCE: LED SMD
- Light mode: Continuous light, Flashing, Strobe, Rotating.
- Input response time: on/off: max. 10 ms
- Sound: (wired control): Sound: 1 tone
- Alarm: 103~116 dB at 1 m (3.3 ft)
- Connection: Wired connection:
- Mounting type: Folding base and options with external pipe
- Operating conditions: -20°C to +50°C (-4°F to +122°F)
- Life expectancy: Additional points may need to be considered. 50,000 hours
- Protection class: IP65
- Water, dust, heat, and UV resistance.
- ISO-9001, CE, RoHS2 and EAC
