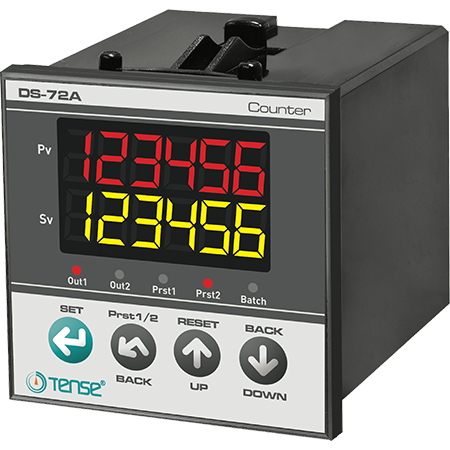

Electronic pulse counter / pulse counter

Counter relays are designed to perform a variety of tasks depending on the input pulses.

• Up/down counter with two contacts

• Counter switch, proximity switch and incremental encoder input

• password protection

• Selectable input frequency

• Calibration constant; 0.00001.....9.99999

• Selectable decimal point; 1. ..... 5.

• 7 input/10 output function options

• Adding "OFFSET" to the count value

• PRESET1: Absolute/relative option

• OUT: Latch or pulse 0.1.....999.9 seconds

• Loading the counter value and the OUT status at the last power failure after the first power on

• RESET via the front panel

• EEPROM memory for storing settings
