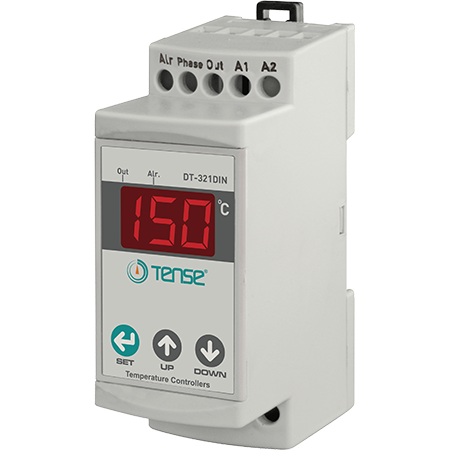

DIN rail thermostat temperature controller ON - OFF - temperature switch

2-Point Temperature Controller / Thermostat for Rail Mounting with External Sensor. Control Type ON-OFF ON-OFF, Measurement Range -30ºC ...+150ºC (made in Turkey, TENSE) DT-321DIN

Thermostat Controller with External Sensor

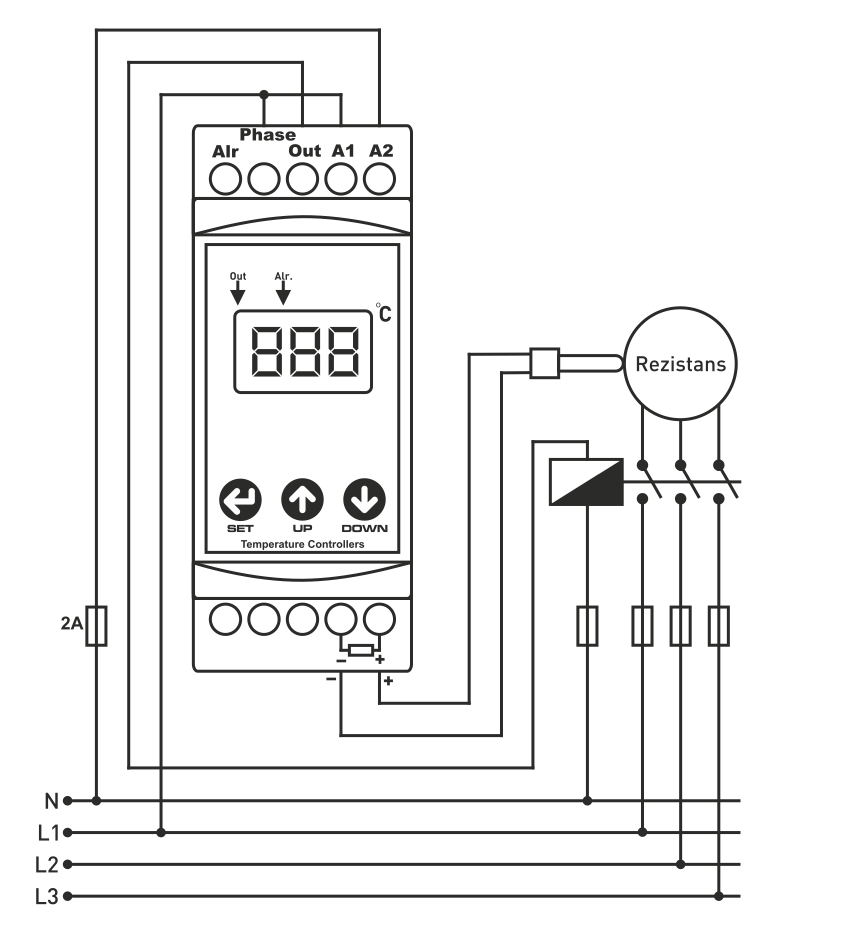

The temperature controller DT-321DIN is characterized by its individual applicability and is used to control heating or cooling devices. Alternatively, the DT-321DIN can also simply serve as a reading device.

Control and monitoring of thermal processes in heating, air conditioning, and ventilation systems, building automation, industrial plants.

• Sensor Type: NTC

• Relay Outputs OUT and ALARM (NO+NC) 250VAC, 2A

• Optional heating and cooling function

• Hysteresis

• Adjustable ON/OFF timer for the OUT output in case of sensor failure

• Protection against compression through adjustable shutdown times

• Upper and lower limits for SET and ALARM settings

• Adjustable separate hysteresis for SET and ALARM settings

• Delay on switch-on for OUT in cooling mode

• EEPROM memory for storing settings

• Password protection

• High precision

Scope of delivery:

1x Temperature Controller DT-321DIN
1x NTC (Sensor)
1x User Manual (English)

This simple temperature controller can be used with the three sensor types presented on our website:

1. Type 1 Reference: -30°C to 105°C - SKU: NTC-105 (included)
2. Reference to Type 2: -30°C to 150°C - SKU: NTC-150
3. Reference to Type 3: -30°C to 150°C (with nut and thread) - SKU: NTC-S-150

Features:

Supply Voltage: 100 to 240 VAC, 50/60 Hz
Power Consumption: < 6 VA
Sensor Type: NTC
Temperature Measurement Range: - 30 °C to + 150 °C
Resolution: +/- 1 °C
Measurement Accuracy: +/- 3% (°C), over the entire measurement range
OUT Output: Relay (NO + NC), 250V AC, 2A
ALARM Output: Relay (NO + NC), 250V AC, 2A
Operating Temperature: 0°C to 50°C
Heating/Cooling: Ht (Heating), Cl (Cooling); selectable
Front Panel Cutout: 66 x 36 mm
Display: 3-digit - 7-Segment

Product Type: Temperature Measuring Device
Protection Class: IP00
Brand: Tense
Country and Region of Manufacture: Türkiye
Supply Voltage: 100V - 240V ~
Connection Type: Screw Terminals
Mounting: DIN Rail
Temperature Measurement Range: -30...+150°C
Temperature Relay (NO + NC), 250VAC, 2A, resistive load
Sensor Type: NTC Sensor
Shipping Weight: 0.12 kg
Item Weight: 0.10 kg

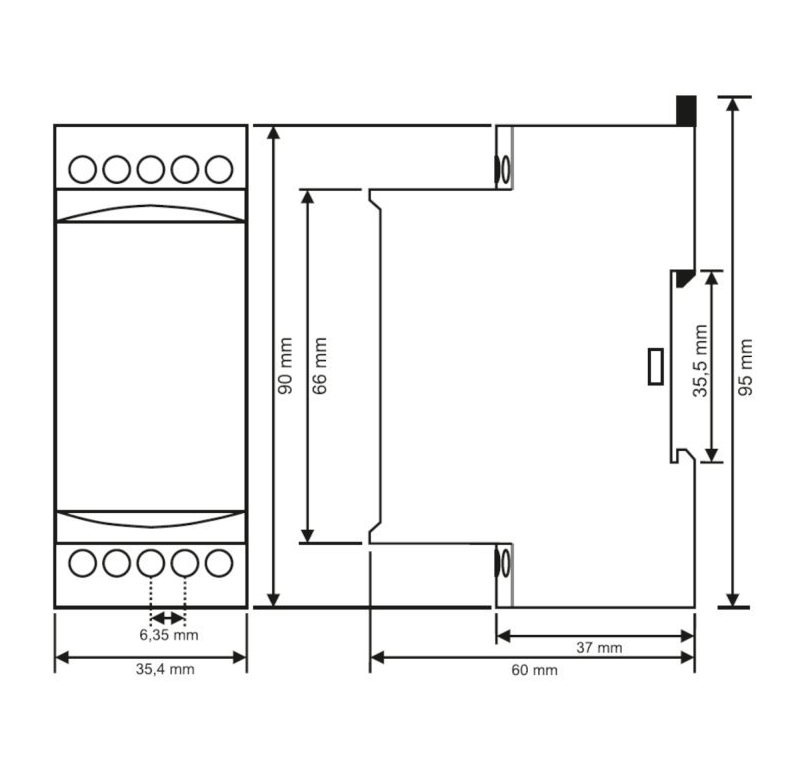

Dimensions (Length × Width × Height): 8.50 × 7.80 × 36.00 cm
