TENSE

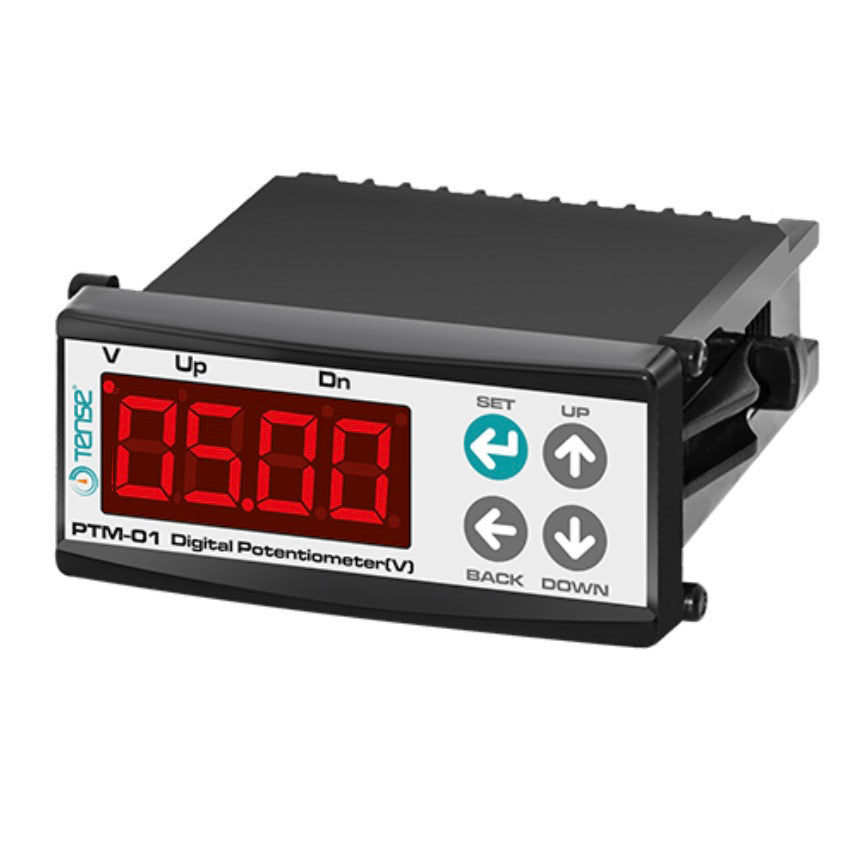

Digital potentiometer, 0-10V voltage source

In stock - 22 items available
SKU: PTM-01
€45,00 VAT included.

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

Digital potentiometers are control devices that generate an analog output signal between 0-10 V.

  • Microprocessor controlled
  • Analog output: 0-10V
  • Menu entry and control of the analog output via front buttons

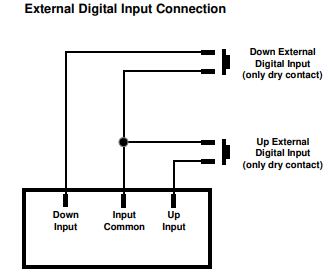

  • Control of the analog output via digital inputs
  • Adjustable upper and lower scale value
  • Adjustable upper and lower limit for SET
  • Separate function selection for the front buttons and digital inputs to control the analog output
  • password protection
  • SECU setting to enable/disable the SET setting menu
  • High accuracy
  • EEPROM memory for storing settings
  • Easy connection with connectors

TECHNICAL DATA

  • Dimensions: 35x77mm
  • Panel cutout: 29x71mm
  • Display: 4 digits 7 segments
  • Analog output: 0-10V or 4-20mA (should be specified when ordering)
  • 0-10V load impedance: >5K
  • 4-20mA max. voltage: <10V
  • Resolution: 2mV (0-10V), 4μA (4-20mA)
  • Accuracy: ±%1;(Overfullscale)
  • User control: Via up/down buttons on the front panel or up/down digital inputs
  • Digital inputs: Only potential-free contact inputs
  • Supply voltage: 100..240VAC, 50-60Hz or 24VDC/AC.
  • Power consumption: < 6VA
  • Humidity: 80% up to 30oC, then decreasing linearly to 50% at 50oC (non-condensing)
  • Altitude: < 2000 m
  • Protection class: IP20
  • Operating temperature: 0 .. 50 oC
  • Storage temperature: -10oC .. 60oC (no icing)
  • Weight: < 0.5 kg
