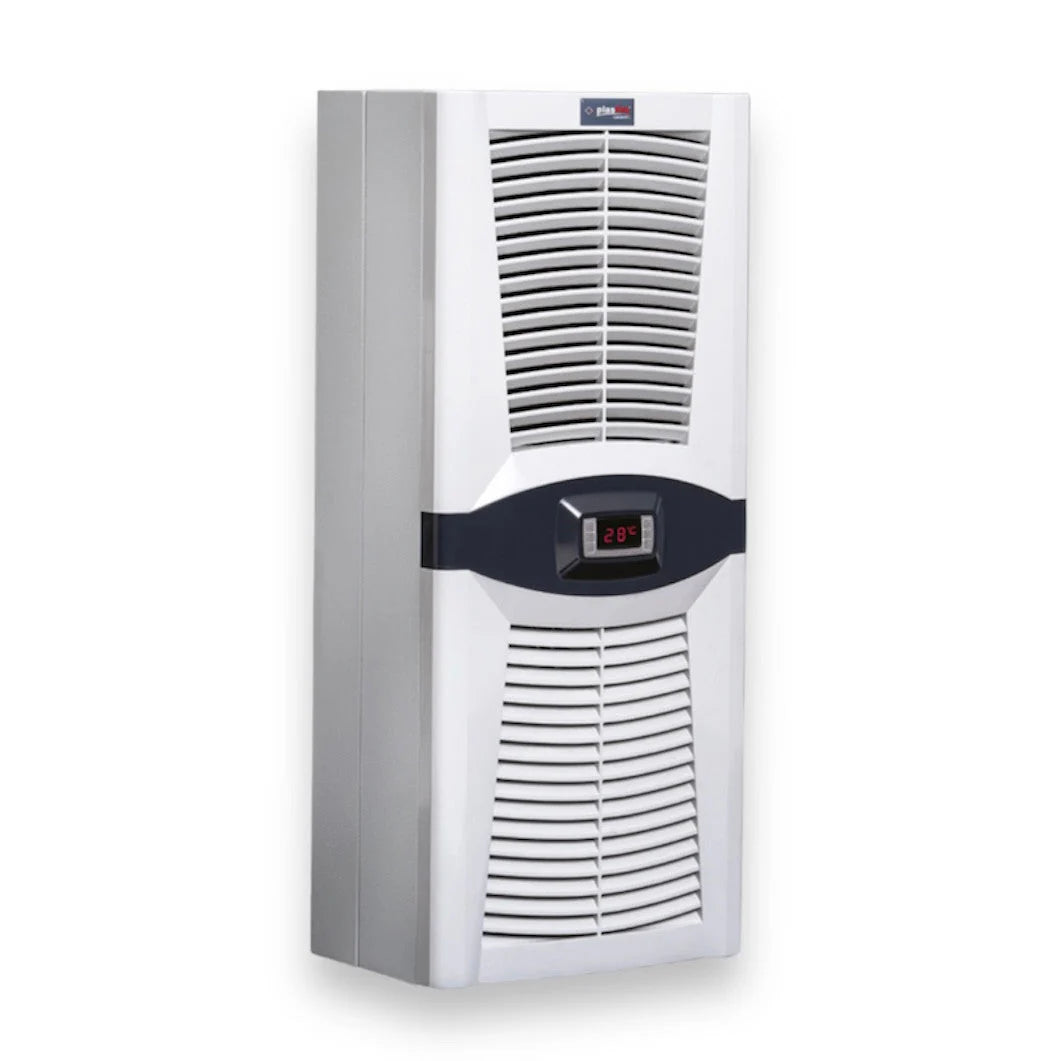

Design Series Air Conditioner 3550W PAD3550.01
Failed to load pickup availability
Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.
Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.
Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.
On account – This payment method is available to partners who have concluded a framework agreement with our company.
If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.
The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.
"Design Series" Klimatizace per rozvaděče / chladič 3500 watts per rozvaděče a automatizační desku boční nebo nástěnný montáž.
Klimatizace per rozvaděče PAD3550.01 (PLASTIM) je vybavena moderním rotačním compressorem otevřeného type od firmy HIGHLY, thermostat Dixell, výparníkem kondenzátu a koncovým spínačem for control of otevírání dveří rozvaděče.
Součástí dodávky je vše potřebné per instalaci Klimatizace per rozvaděče - těsnění, odpadní potrubí, montážní šrouby, napájecí konektor.
TECHNICAL DETAILS |
PAD3550.01 |
Cooling Capacity L35 / L35 |
3500W / 11970BTU |
Operating Voltage |
230VAC |
Frequency |
50/60 Hz |
Starting Current |
11A |
Operating Current |
3.8A |
Fuse |
16A |
Power Consumption |
800W |
Operational Range |
0-55 °C |
Thermostat Factory Setting |
35 °C |
differential |
4 °C |
Max. Air Volume Internal Circuit |
510 m³/h |
Max. Air Volume External Circuit |
625 m³/h |
Type of Refrigerant |
R134a |
Amount of Refrigerant |
750g |
Dimensions |
1200x430x270mm |
Weight |
47kg |
Sound Level |
82dB |
Protection Degree (Internal Circuit) |
IP54 |
Protection Degree (External Circuit) |
IP34 |
Color |
RAL7035 |
Compressor |
HIGHLY/HITACHI |
Compressor Type |
Rotary |
fans |
EBMPAPST |
Mounting Method |
Wall Mount |
