Roof fan, control cabinet fan, 970m3/h, 230VAC, 364x364x107mm, IP54, PTS6000

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

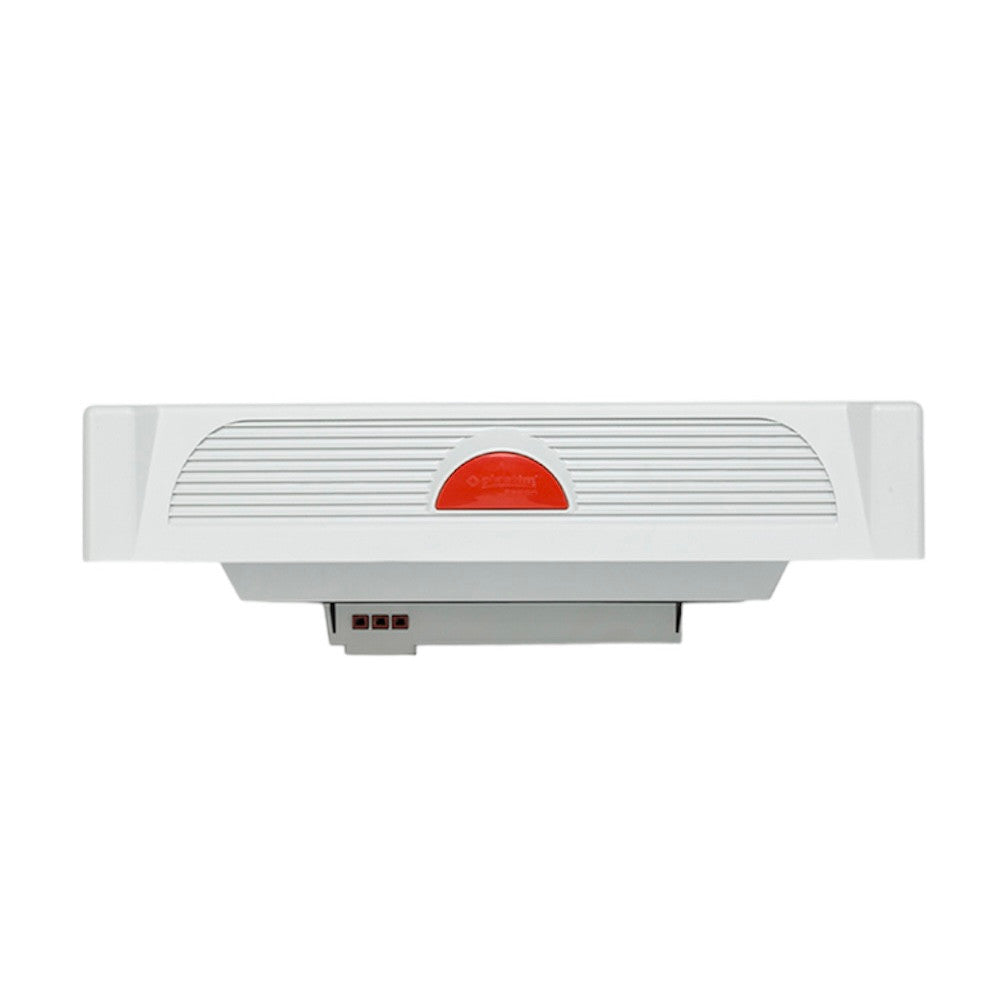

Fan in the housing for installation on the roof of the control cabinet, PTS6000, PLASTIM (Türkiye)

This fan is designed for use in a microclimate system in a distribution board or automation panel and is typically used with a PTVT or PTHVT thermostat. It is installed on the roof of the control panel and allows excess warm air to be removed from the control panel volume as efficiently as possible.

Although the fans have the same dimensions, they differ in the amount of air they deliver and the noise level.

• External dimensions: 364x364x107 mm
• Installation dimensions: 178x178mm
• Volume flow: 970 m3/h
• Noise level: 72 (73) dB(A)
• Bearing: ball bearing
• Lifespan: 50,000 hours
• Operating voltage: 220-230VAC, 50/60Hz
• Current consumption: 0.38/0.44 A
• Rated power: 85/90 W
• Electrical connection: 3-pin terminal 2.5 mm2
• Flow direction: The air flow is directed from the inside to the outside
• Operating temperature: -10/+70 °C
• Protection class: IP54
• Plastic material: UL94 V0 ABS Flame Retardant
• Seal: Polyurethane seal
• Color: RAL 7035
• Weight: 3.16 kg
• Assembly: Quick plug-in

To ensure automatic air exchange and temperature maintenance with this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller. Both devices are available for purchase on our website.
