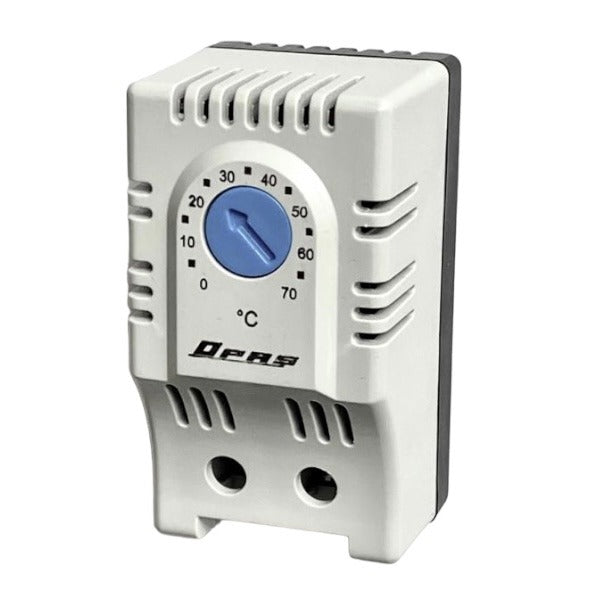

Bimetal cooling thermostat / temperature switch NO, switching, 0-60°C, bimetal from OPAŞ
Control cabinet thermostat (temperature relay, temperature sensor, thermal relay, air temperature relay) mechanical with built-in air temperature sensor for DIN rail mounting for connecting fans or for signaling when the set temperature is exceeded, normally one open contact (normally open) PTOT100, 2p, screw terminal, bimetal thermostats from OPAŞ.
These thermostats are used in systems that maintain a specific temperature using cooling elements such as fans or air conditioners. These systems are used to prevent overheating of equipment in control cabinets, ATMs, payment terminals, and other devices installed outdoors or in uncooled spaces.

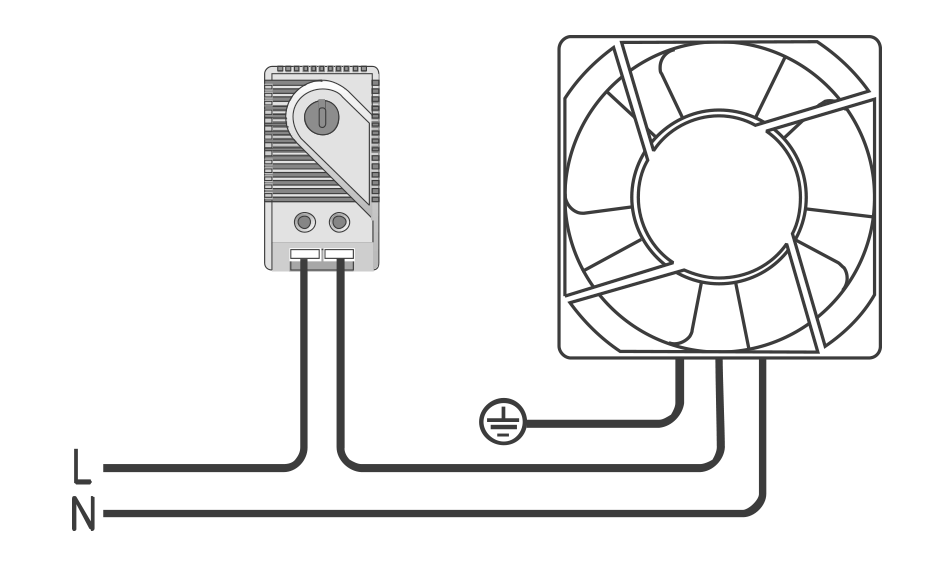

They are used to connect fans, coolers and air conditioners.
Characteristics |
PTOT100 |
Contact type |
SHUTTER |
Setting range |
0-60 °C |
Color of the potentiometer |
Blue |
250V AC / 120V AC |
15 (2) A |
Sensor type |
Bimetal |
Contact Type |
Snap action |
life |
> 100,000 |
Electrical connection |
2-pole terminal, screw terminals |
Material plastic |
UL94 V0 ABS flame retardant |
Protection class |
IP20 |
Operating temperature |
-25 / +80 °C |
Storage temperature |
-45 / +80 °C |
Installation |
DIN rail 35mm |
Dimensions HxWxD |
61x34x38 mm |
Weight |
43g |
