TENSE

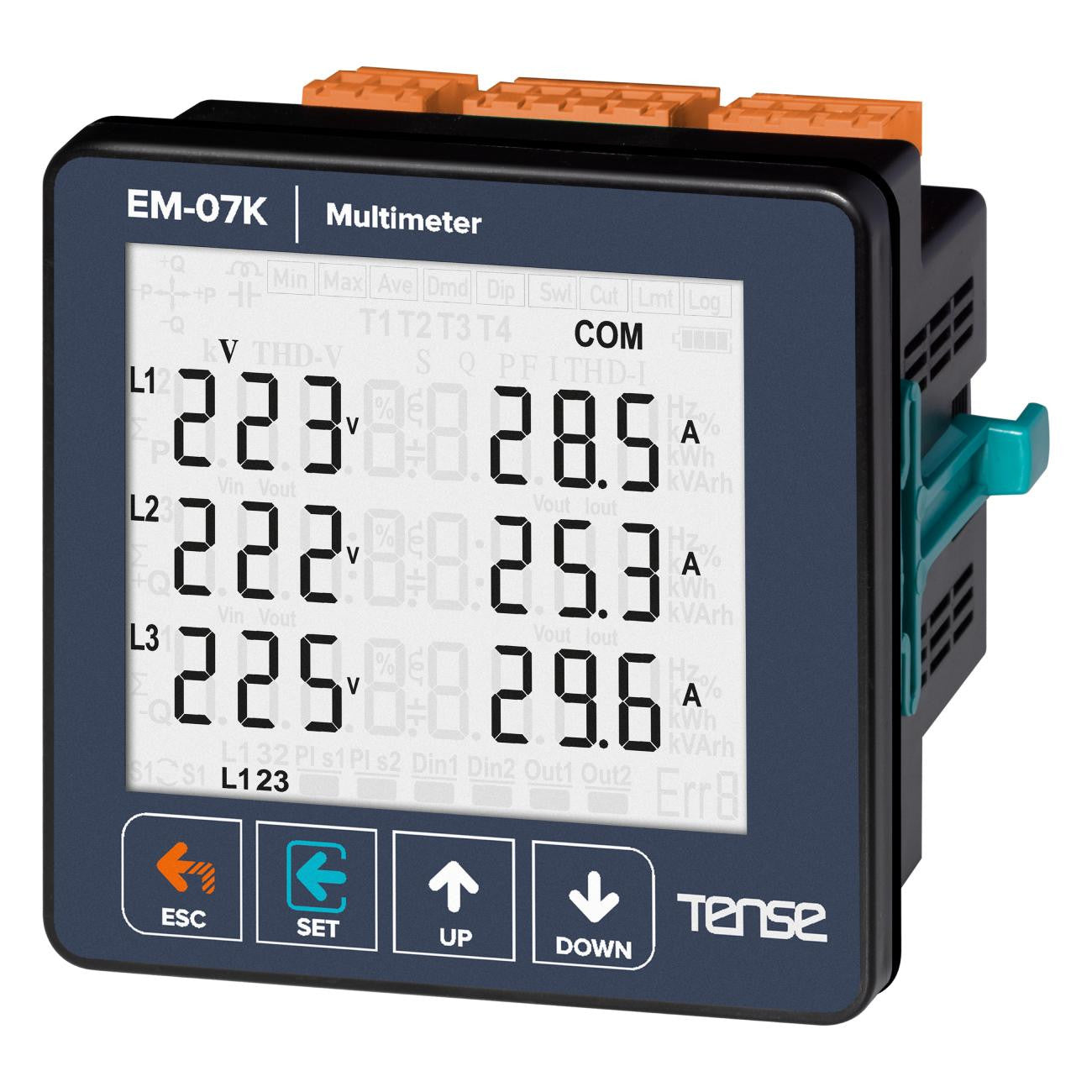

3-phase RS485 voltage-frequency-power-energy-current multimeter for panel mounting

Sold
SKU: EM-07K
€88,00 VAT included.

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements. In the event of a complaint, no return shipping fee is charged.

Three-phase multimeter - 3-phase multifunction digital panel meter, current, voltage, frequency and total power display, energy kW*h and ModBus RTU manufacturer TENSE (Türkiye), panel meter.

The main advantages:

  • RS485 Modbus RTU (1200-38400bps)
  • 71.5 x 61.5 custom glass LCD design

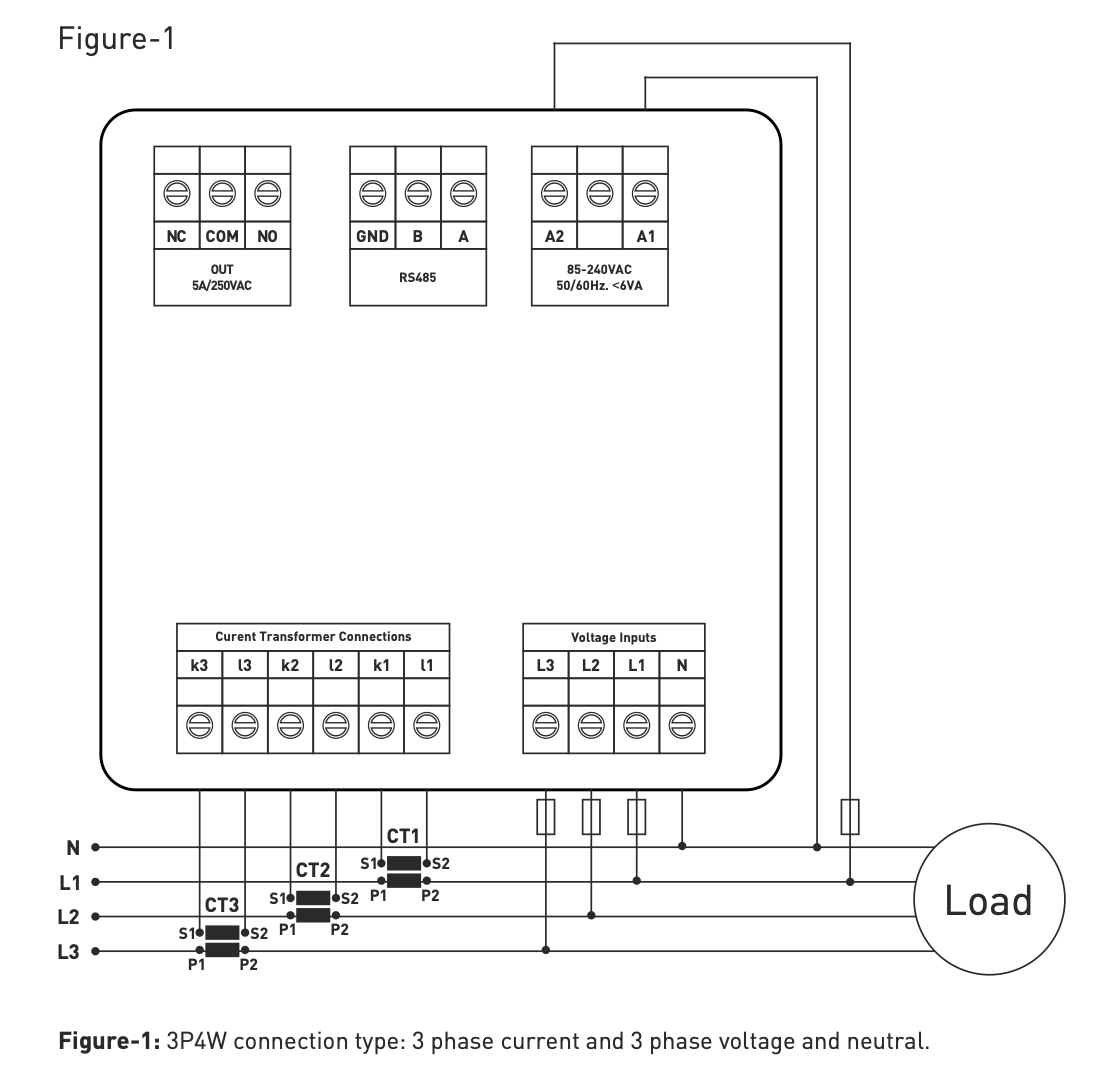

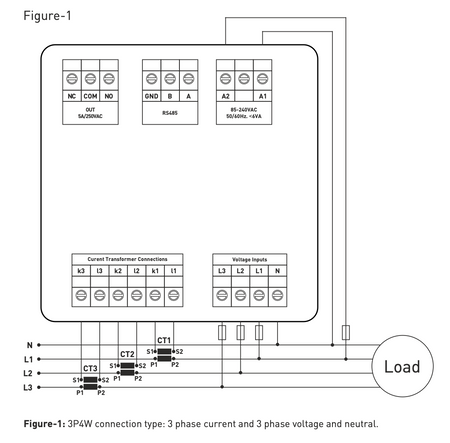

  • 3-phase voltage transformer and 3-phase current transformer.
  • Shows V1, V2, V3, V12, V23, V31, I1, I2, I3, S1, S2, S3, F1, F2, F3
  • Shows the minimum, maximum and average values ​​of V1,V2,V3,V12,V23,V31,F1,F2,F3
  • Display of minimum, maximum, average and setpoint values ​​I1, I2, I3, S1, S2, S3 High/low voltage, current, frequency (adjustable) Phase-neutral or phase-phase protection (adjustable)
  • Energy meter / power meter
  • Protection of voltage, current and frequency
  • Display of the phase sequence
  • You can delete requests
  • The menu is password protected.

Typically, this multimeter is used with current transformers – 60/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1500/5, or similar. You can purchase such transformers in our e-shop.
