3-phase network parameter analyzer for mains frequency, voltage and current RS485

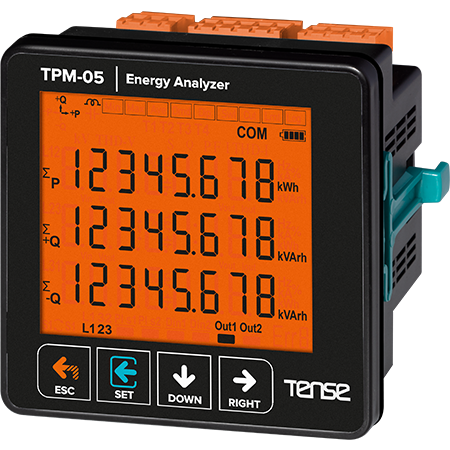

3-phase power parameter analyzer - three-phase multifunction digital panel meter, current, voltage, frequency and total power display, with two relay outputs and digital input, RS485 ModBus RTU - TPM-05 Manufacturer TENSE (Türkiye) Panel Meter.

The power analyzers are designed for measuring and monitoring electrical values. Thanks to the communication function, energy measurements can be independently monitored and reported. Analyses such as energy quality, efficiency, and unit cost calculations can be performed with energy analyzers.

Main advantages:

• RS485 Modbus RTU (1200-115200bps)

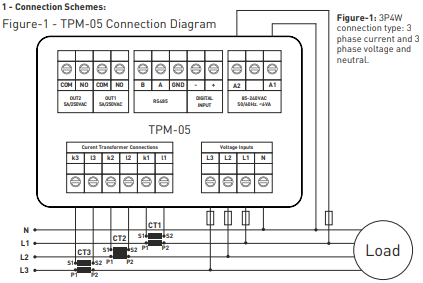

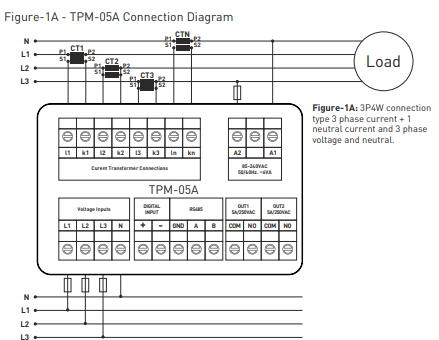

• 3-phase voltage transformer and 3-phase current transformer.

• Display of voltage and current harmonics up to the 55th harmonic

• Display of active power per phase (P)

• Display of reactive power per phase (Q, inductive and capacitive)

• Shows the apparent power per phase (S)

• Displays the cosφ and power factor values ​​of each phase

• Displays the values ​​of voltage (V) and current (I) between the phases and between the phases and measures the frequency

• Display of the total values ​​of imported and exported active energy (ΣkWh)

• Display of the total values ​​of inductive and capacitive reactive energy (ΣkVArh)

• Display of minimum and maximum values, max.

• 2 relay outputs, 1 digital input

• Event logs (high/low voltage/current, voltage/current unbalance, THD-I, power interruption)

• Current date and time (RTC)

• The menu is password protected.

This power analyzer is typically used with current measuring transformers – 60/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1500/5, or similar. If you would like to connect the analyzer to ModBus, we will send you a register table with ModBus addresses upon request.
